Pannoramic MIDI 1.18 User’s Guide 4 Software Description

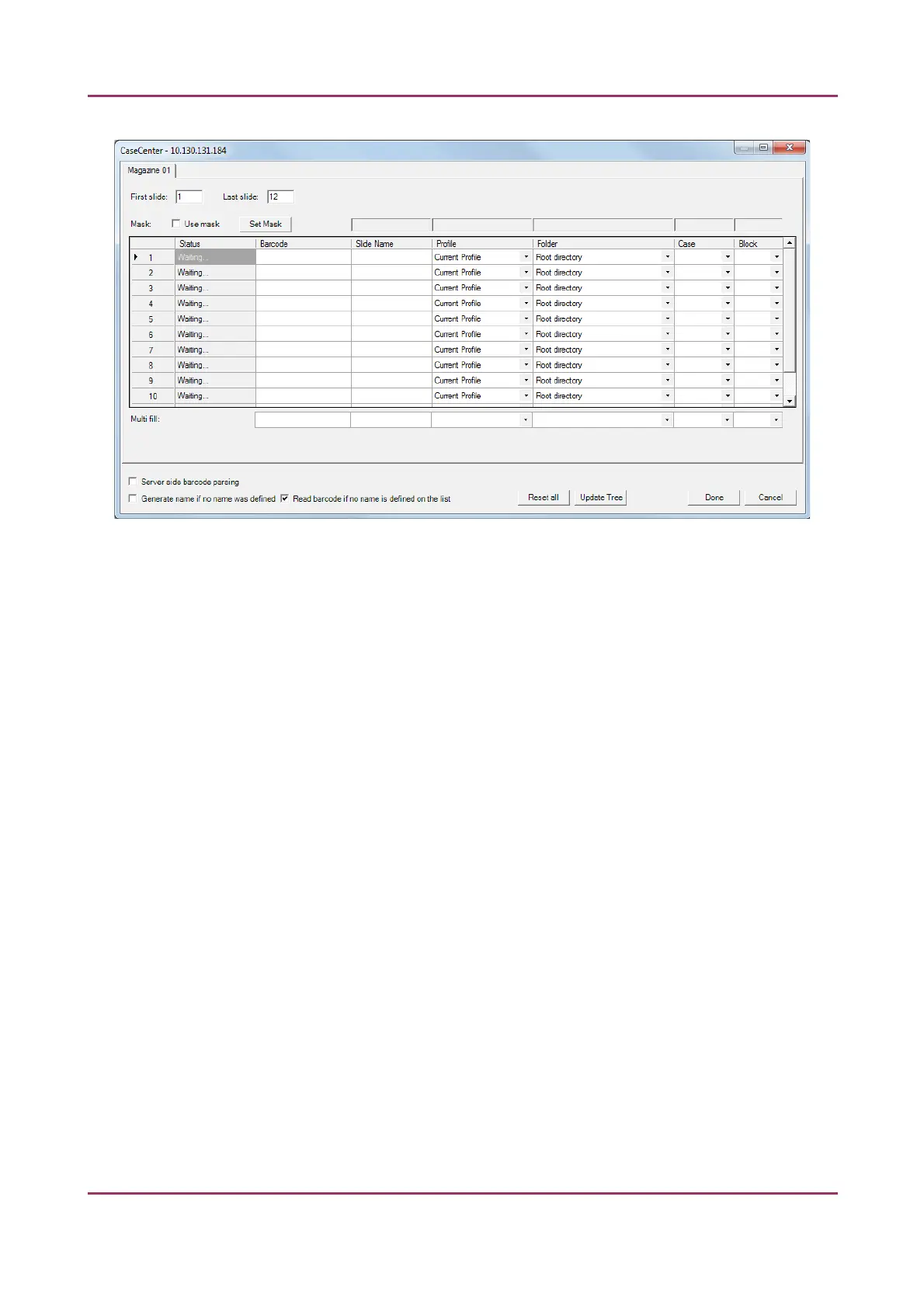

Figure 70 – Scan To Server window in Automatic Mode
• Give the number of the starting (First slide) and the final slide (Last slide) to be
scanned in the appropriate field. For example, if you want to scan slides to server
from 1-12, type: First slide: 1; Last slide: 12.
• There are two options at the bottom of the window:
1. The Generate slide name if no name was defined option can be activated when
you do not want to type in a unique name for each slide.
2. Upon activating the Read barcode if no name is defined on the list option, the
slide barcode will be read and set in the Barcode field.
• Use masks for automatic fills. Activate the Use mask option and the mask fields
turn fillable. To save masks, click the Save Mask button. To modify masks click Set
Mask.
For example, by creating a string for the slide name fields based on the characters
of the barcode, a unique name will be generated. The barcode '0123456789', and a
mask '1-3' result that the first four characters of the barcode will be displayed and
set as slide name (012). Case and Block fields can be set this way as well, if
necessary (see Figure 71).
NOTE: When filling slide data fields, press TAB to move to the next cell.
April 3, 2014 - Rev 1 3DHISTECH Ltd. 102(127)
