Fitting the Battery Charger into the Battery- & Mounting Box
(1) Push the Battery Charger with the holes for the two attachment clips (Figure 6-5 Item 2)
onto the two bolt threads (Figure 6-5
Item 3) on the right in the centre of the Battery- & Mounting Box and tighten fully with two
M4 hexagonal bolts (Figure 6-4 Item 1).
(2) Create an opening in the base of the Battery- & Mounting Box for the power cable
(Figure 6-5 Item 4) and pull the power cable through the opening, which should be
sealed with a PG-seal.
Only qualified electricians are allowed to carry out this work, see safety advice in
section 2. Risk of injury from electric shock in case of unqualified assembly!

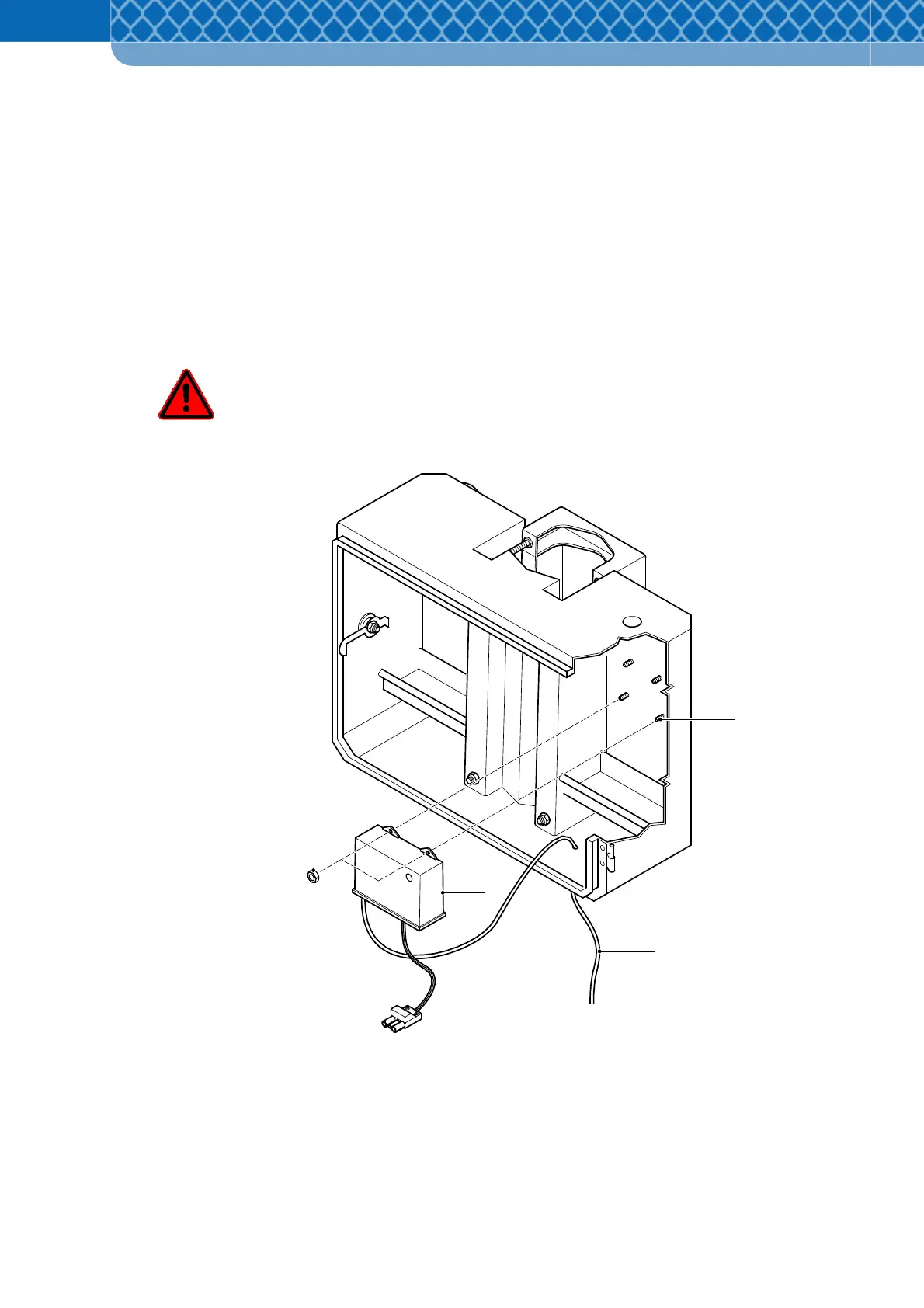

Figure 6-5 Fitting the Battery Charger
