3M DFS 700

Technical Information DFS 700 / 04.2009 6-14

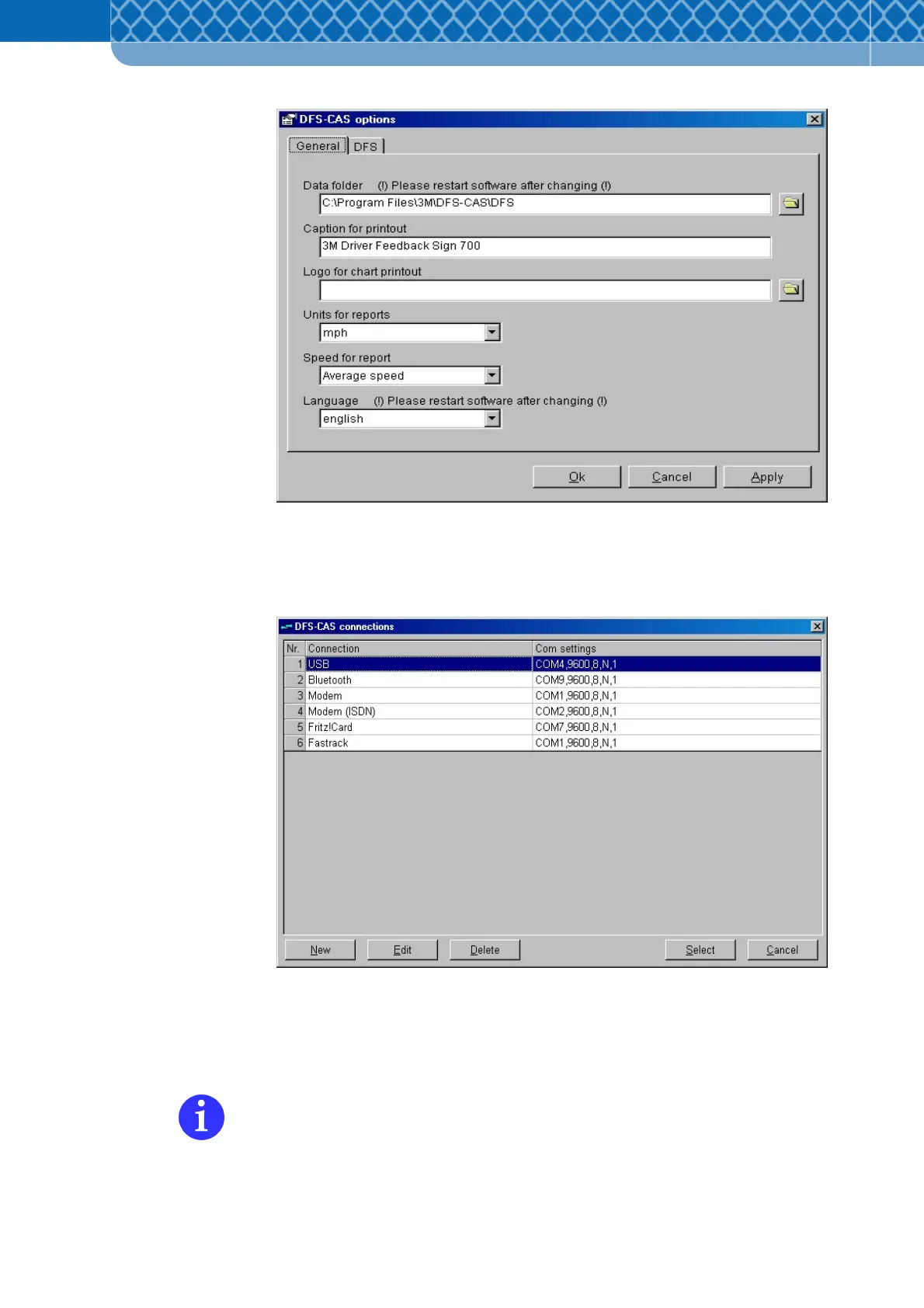

Figure 6-11 General DFS-CAS options
(3) Open the “DFS-CAS connections” window via “Settings”, select the USB connection and
select “Edit”.
Figure 6-12 DFS-CAS connections
(4) Select the COM port to which the USB-cable is connected in the “DFS-CAS connection
parameters” window.
The correct COM port can only be selected if the DFS is switched on and connected to
the PC’s USB port. The COM port may possibly change at the next use.
