A (1)

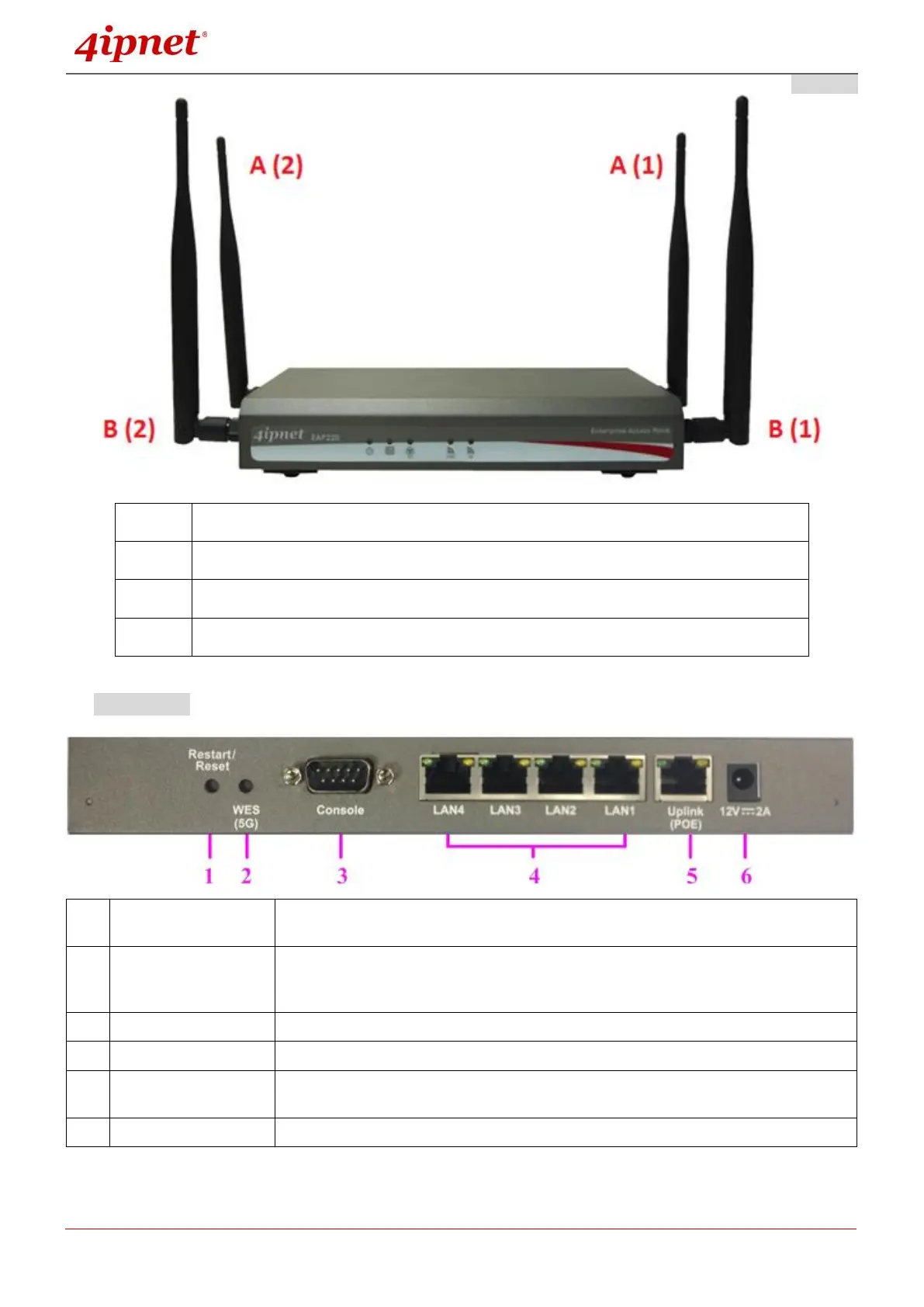

Primary antenna connector (Ant1) for RF Card A
A (2)
Secondary antenna connector (Ant2) for RF Card A
B (1)
Primary antenna connector (Ant1) for RF Card B
B (2)
Secondary antenna connector (Ant2) for RF Card B
Rear Panel
1
Restart / Reset
Press once to restart the system; to reset the system to factory default
settings, hold for more than 5 seconds.
2
WES Button (RF B)
WDS Easy Setup. Press the button to build up a WDS link with another peer.
4 WDS links can be set up per RF card. Note that the WES Button only runs
on the 5 GHz RF Card B.
3
Console Port
To access EAP220 via the console interface.
4
LAN 1~4 Ports
The ports for connections with LAN side devices.
5
Uplink Port (PoE)
The port for uplink connection to another gateway or device. PoE (802.3at) is
supported.
6
12V 2A
Power Socket for the power adaptor
