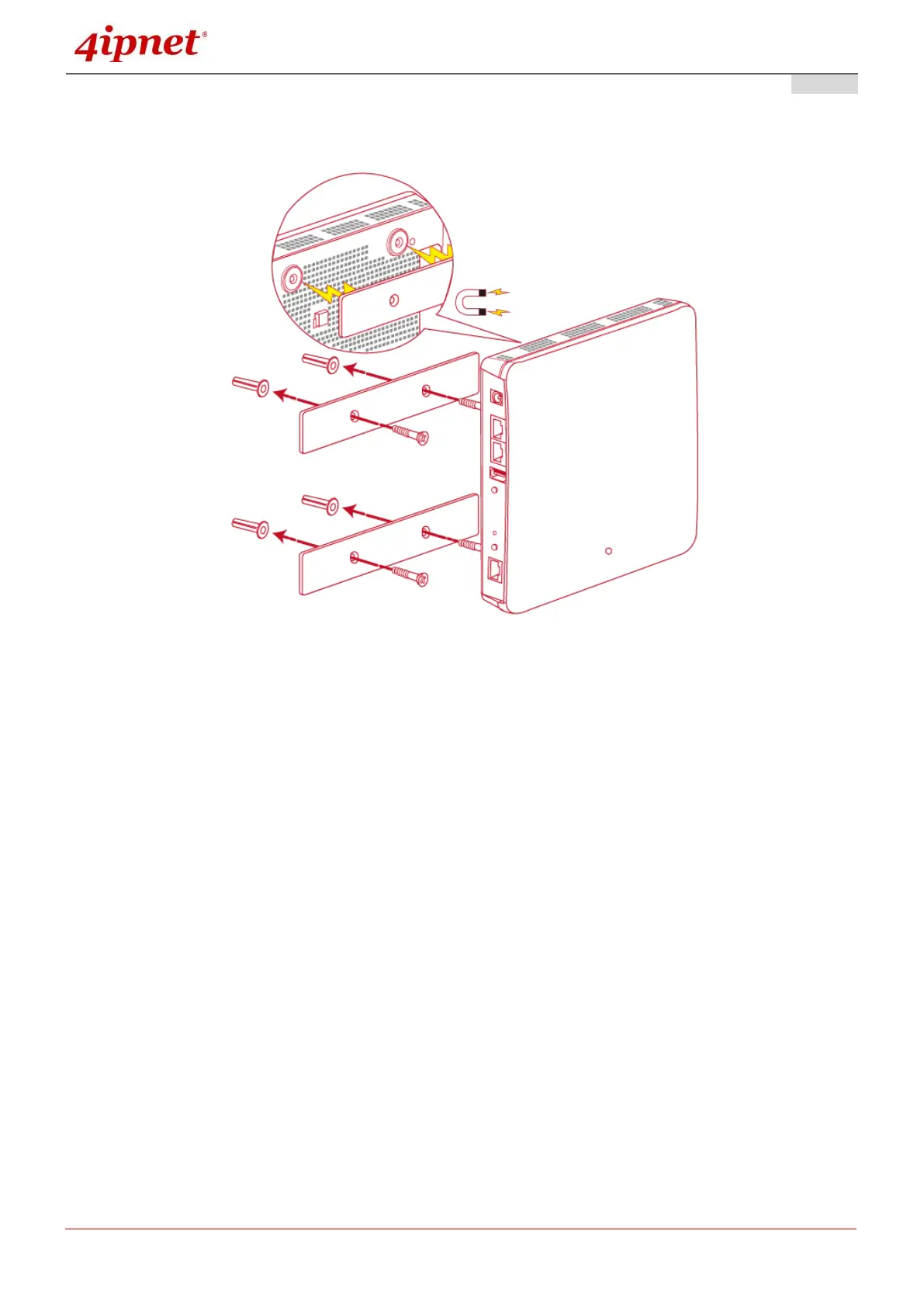

- Attach the two magnetic wall mount strips to the selected location using the screws as shown below
- Press the back of the access point firmly against the two wall mounted magnetic strips.
2. Connect the EAP760 to your network device.
Connect one end of the Ethernet cable to the Uplink port of EAP760 and the other end of the cable to a
switch, a router, or a hub. EAP760 is then connected to your existing wired LAN network.
3. Connect the DC power adapter to the EAP760 power socket.
There are two ways to supply power over to EAP760.
- EAP760 Uplink port is capable of receiving DC currents. Connect an IEEE 802.3at-compliant PSE device
(e.g. a PoE-switch) to the Uplink port of EAP760 with the Ethernet cable.
- Connect a 12V/2.5A adaptor (optional) to the DC power jack.
