User’s Manual
Enterprise Access Point ENGLISH
Copyright © 4IPNET, INC. All rights reserved.

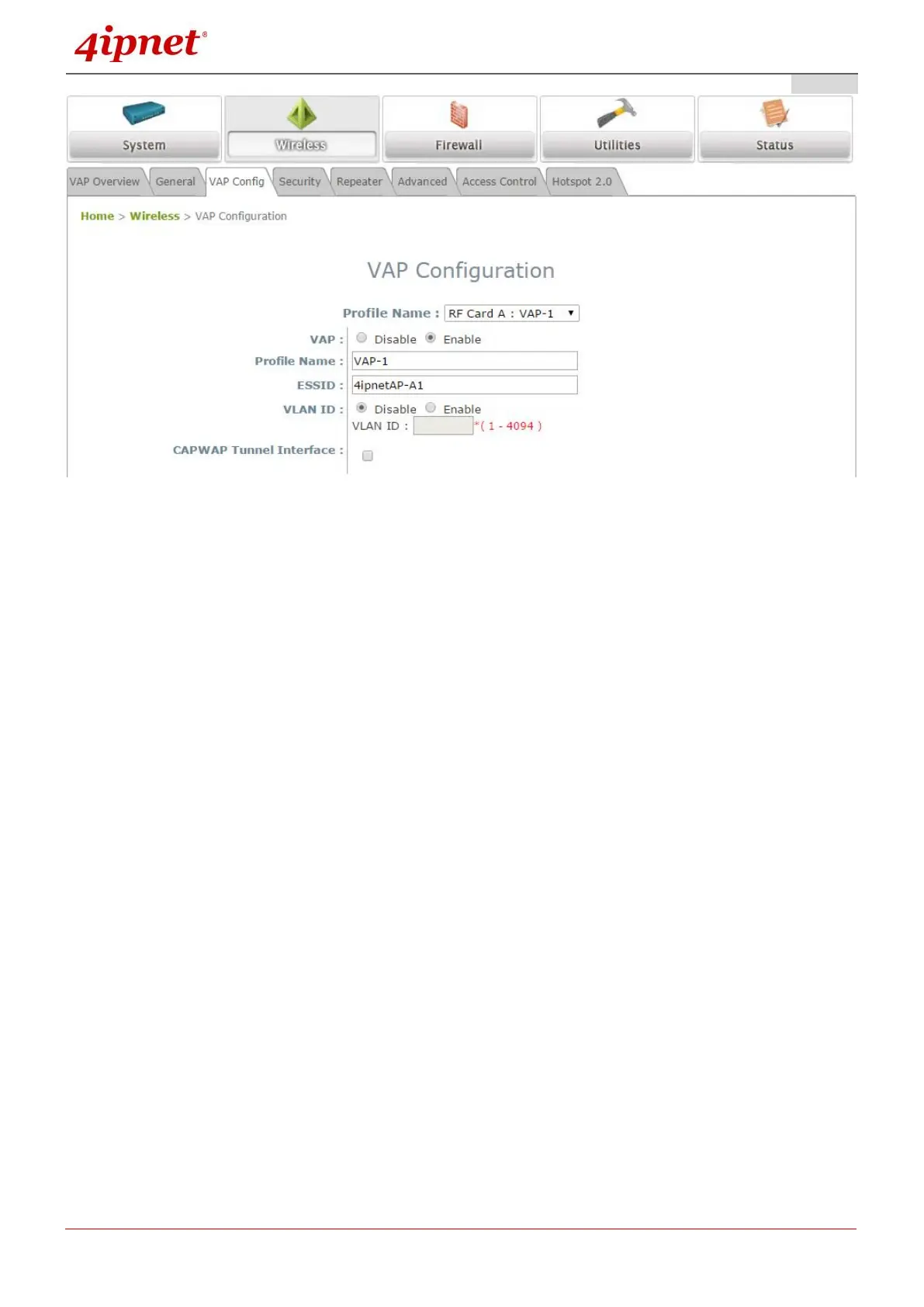

VAP Configuration Page (RF Card A : VAP-1 shown)
The desired VAP profile can be selected from the drop-down menu of Profile Name and VAP-1
configuration will serve as an example for all other VAPs. Before proceeding further, please make
sure that the VAP field is marked Enable; afterwards, enter an ESSID to represent the WLAN
associated with AP’s VAP-1. It is suggested that Profile Name is used to describe what this particular
VAP will be used for; otherwise, leave it as default. VLAN ID can be chosen at another time. Click
SAVE to save all changes up to this point and Reboot the system to apply these revised settings.
Congratulations!
After reboot, the AP can start to operate with these revised settings.
