M512-3 Juggler : User Guide © 2021 7thSense
Nodes: Connecting Juggler Systems
Name:

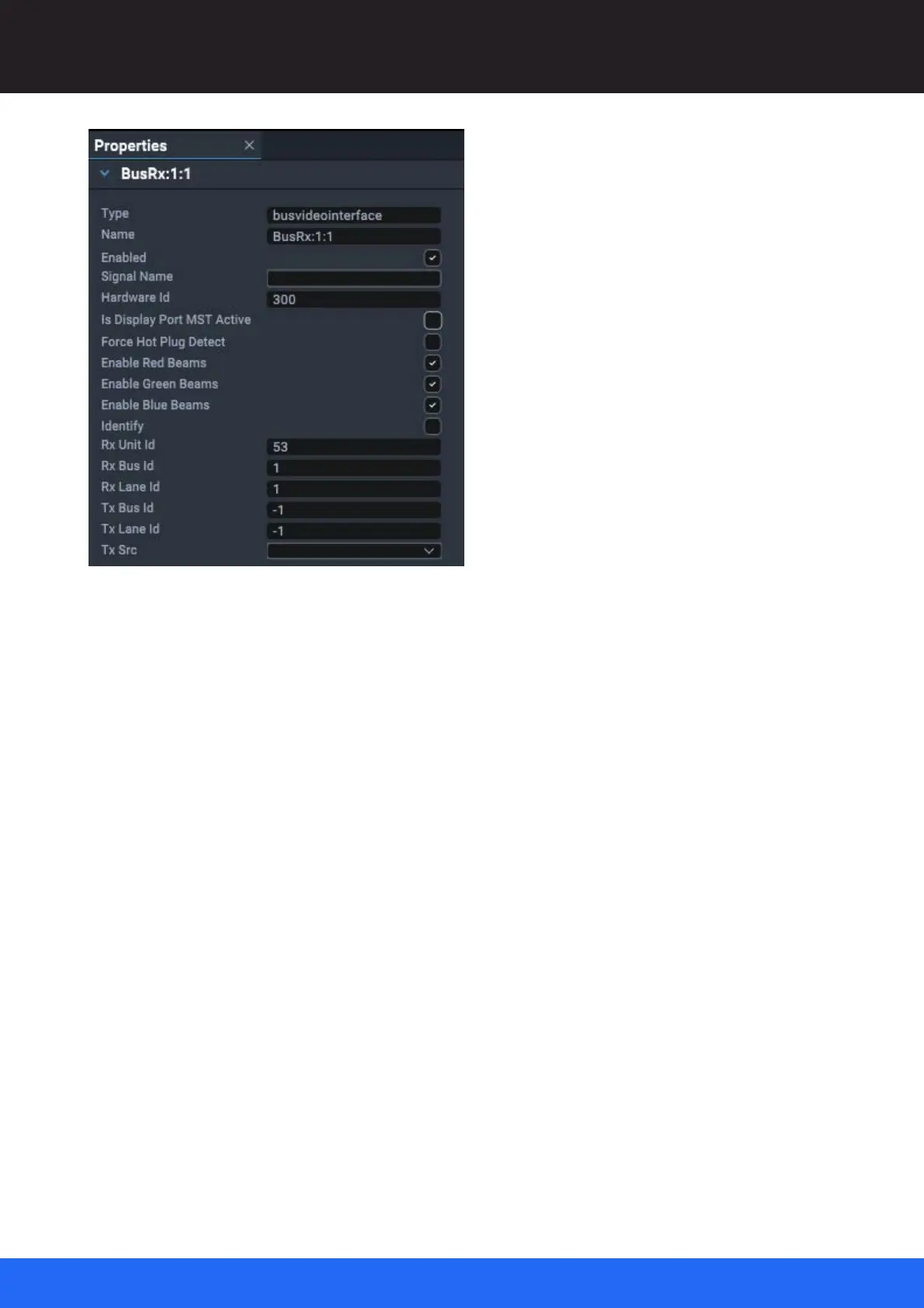

BusRx 1:1 indicates bus 1, receiving lane 1.
Signal Name
NDI source name.
Hardware Id
The internal recognition identifier in the respective Juggler. Be sure to understand the
correlation with the physical interface panel identification.
Connectors in Compere project are identified by type and number:
Bus: base 300 (so numbered 301, 302, 303, 304)
Is Display Port MST Active
Check this if using DisplayPort multi stream transport on this AV connection.
Rx Unit Id
The 2-digit Id of the Juggler providing the connection
Rx Bus Id
The number of the Bus being received from (normally there is only one but two are possible)
Rx Lane Id
The number of the Bus lane being used to receive.
