M512-3 Juggler : User Guide © 2021 7thSense
Nodes: Connecting Juggler Systems

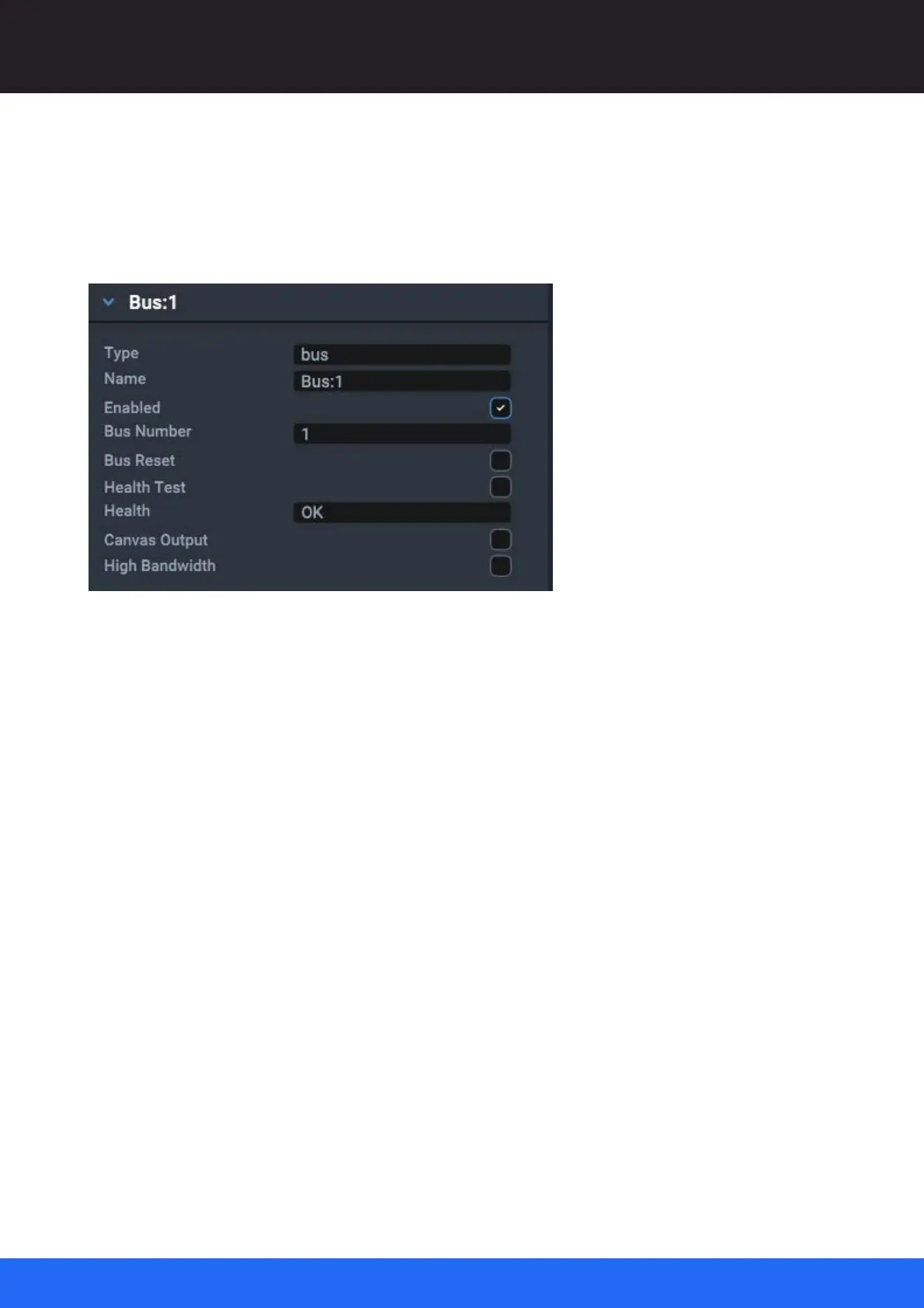

Bus Properties
Bus properties can be shown by selecting the Bus from a Juggler in the Project panel, or by expanding
the Bus section from all properties of selected Juggler in the Properties panel. These are the
common properties for the bus as a whole:
Name: If you wish, for clarity with your own naming convention, rename your bus pins clearly and
consistently throughout.
Bus Number: For most systems there will only be one bus.
Health: shows the status per bus lane, or ‘OK’ when all well. Health can also be seen in general in the
green or red colour of the Bus block in the Juggler Node.
Canvas Output
Enable output (rather than video channel) busing mode.
Bus Rx and TX pins
Below this are the properties for each Rx and Tx bus pin available on the Juggler:
