IP PHONE FOR MX-ONE™
23 6/1553-DBC 444 01 Uen B4 2014-03-26
4.1.1 Cabling Icons

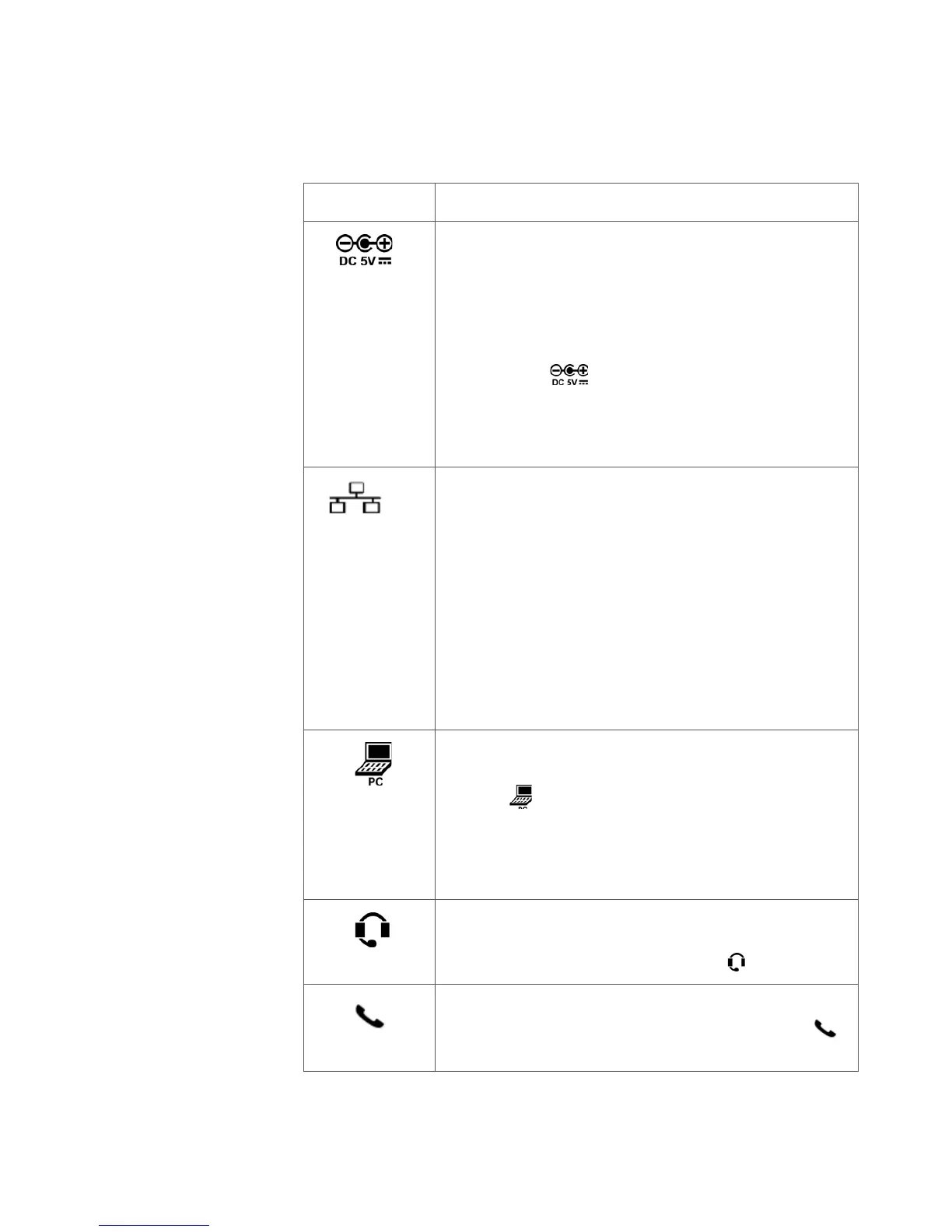

Table 5 Cable Icons
Icon Description
Power Inlet
The phone is powered by an external AC/DC
adapter (see details below) or, alternatively, over a
Power over Ethernet (PoE) switch.
• If you use the external power adapter, connect
one end of the adapter to the phone connection
marked , and the other end to a power
outlet.
If you use the PoE connection, you only have to
connect the phone to the LAN.
LAN Inlet
Connect one end of the Ethernet cable to the phone
connection marked Net, and the other end to a LAN
connection.
Option Unit (Optional)
If the phone is equipped with an option unit (DBY
412 02) and connected to a 1 gigabit LAN, the LAN
cable must be connected to the port marked Net on
the option unit, otherwise it will not work. Make sure
also to connect the PC to the PC connector on the
option unit.
PC Inlet
Connect one end of the PC cable to the connection
marked , and the other cable end to a RJ45
connection on your PC.
When the phone is starting up (booting), a
connected PC will lose network connection for a few
seconds.
Headset Connector
The phone supports wireless headsets. Connect the
radio base to the connector marked .
Handset Connector
Connect the handset to the connection marked .
