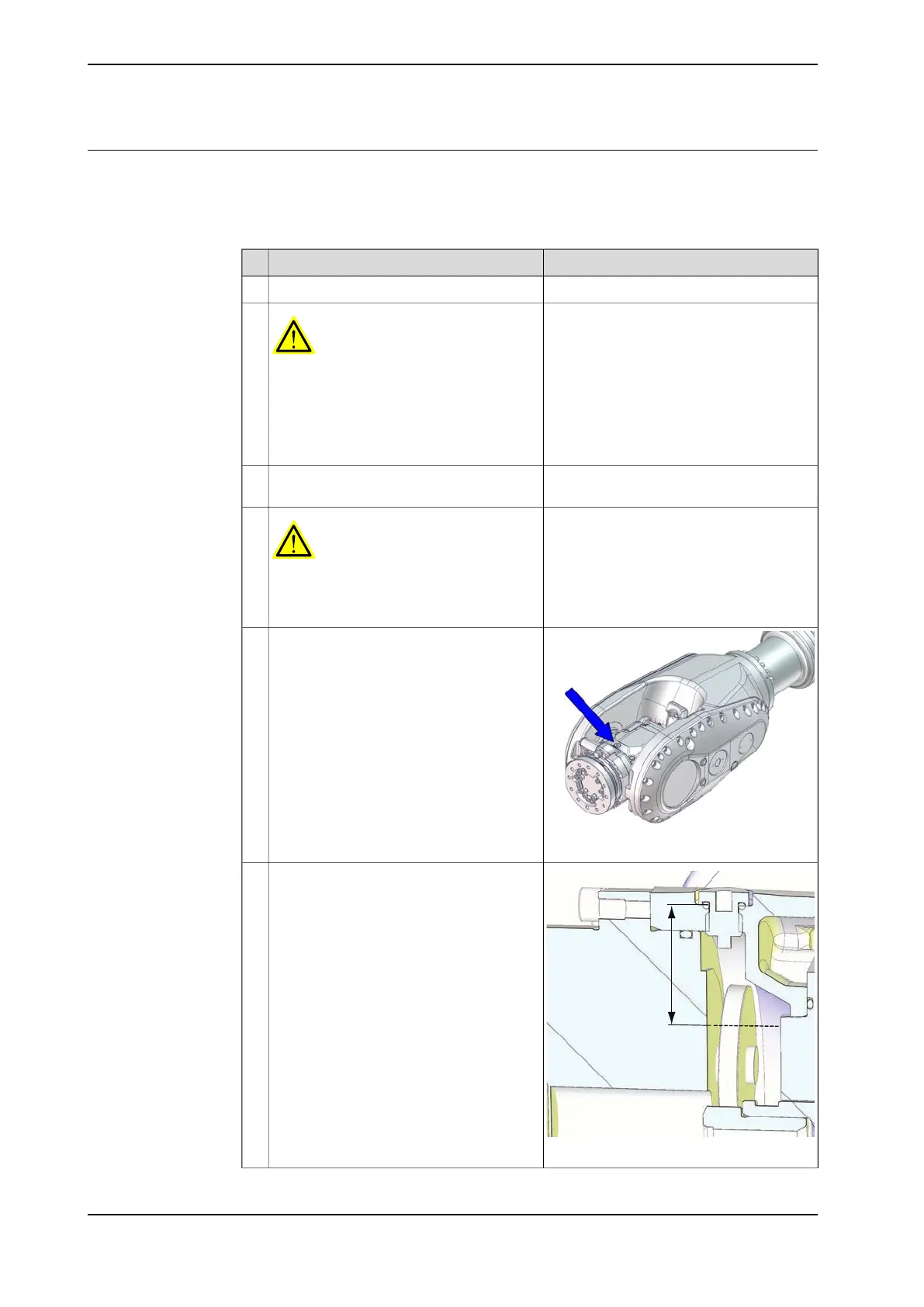

Inspecting the oil level in axis-6 gearbox
Use this procedure to inspect the oil level in the gearbox.
The procedure includes two alternative positions for axis 5, where one of the
positions makes it possible to use the filling plug as a level plug.
NoteAction
Run the robot to calibration position.1
DANGER
Turn off all:
• electric power supply
• hydraulic pressure supply
to the robot, before entering the robot
working area.
2
Make sure that the oil temperature is +25°C
± 10°C.
3
WARNING
Handling gearbox oil involves several
safety risks, see Gearbox lubricants (oil or
grease) on page 31.
4
xx1600002049
Open the oil plug.5
xx1300000693
Method 1
Check the oil level. Required oil level is:
• 50 mm ± 5 mm below the sealing
surface of the oil plug.
6
Continues on next page
112 Product manual - IRB 6790
3HAC063331-001 Revision: B
© Copyright 2019 - 2020 ABB. All rights reserved.
3 Maintenance
3.3.6 Inspecting the oil level in axis-6 gearbox
Continued
