NoteAction
DANGER
Turn off all:
• electric power supply
• hydraulic pressure supply
to the robot, before entering the safe-
guarded space.
2
WARNING
Handling gearbox oil involves several
safety risks, see Gearbox lubricants (oil or
grease) on page 31.
3
CAUTION
The gearbox can contain an excess pres-
sure that can be hazardous. Open the oil
plug carefully in order to let the excess
pressure out.
4

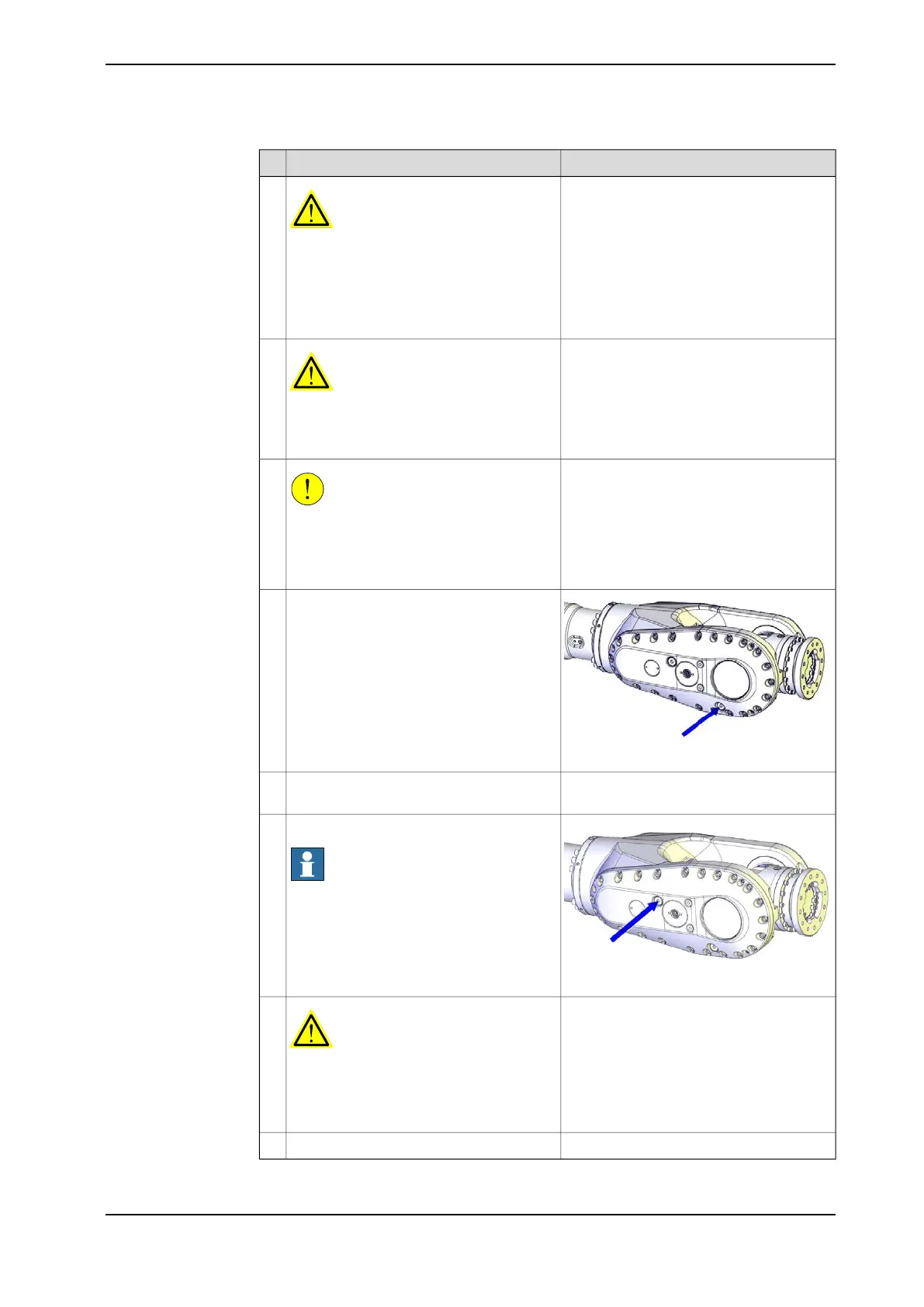

xx1200000958
Remove the oil plug from the drain hole
and let the oil run into the vessel.
5
Place the oil collecting vessel underneath
the oil drain plug.
6
xx1200000959
Remove the oil plug from the fill/level hole.
Note
The fill hole is opened to speed up the
drainage.
7
WARNING
Used oil is hazardous material and must
be disposed of in a safe way. See section
Decommissioning on page 639 for more in-
formation.
8
Tightening torque: 24 Nm.Refill oil or refit the oil plug.9
Continues on next page
Product manual - IRB 6790 151
3HAC063331-001 Revision: B
© Copyright 2019 - 2020 ABB. All rights reserved.
3 Maintenance
3.5.6 Changing oil, axis-5 gearbox
Continued
