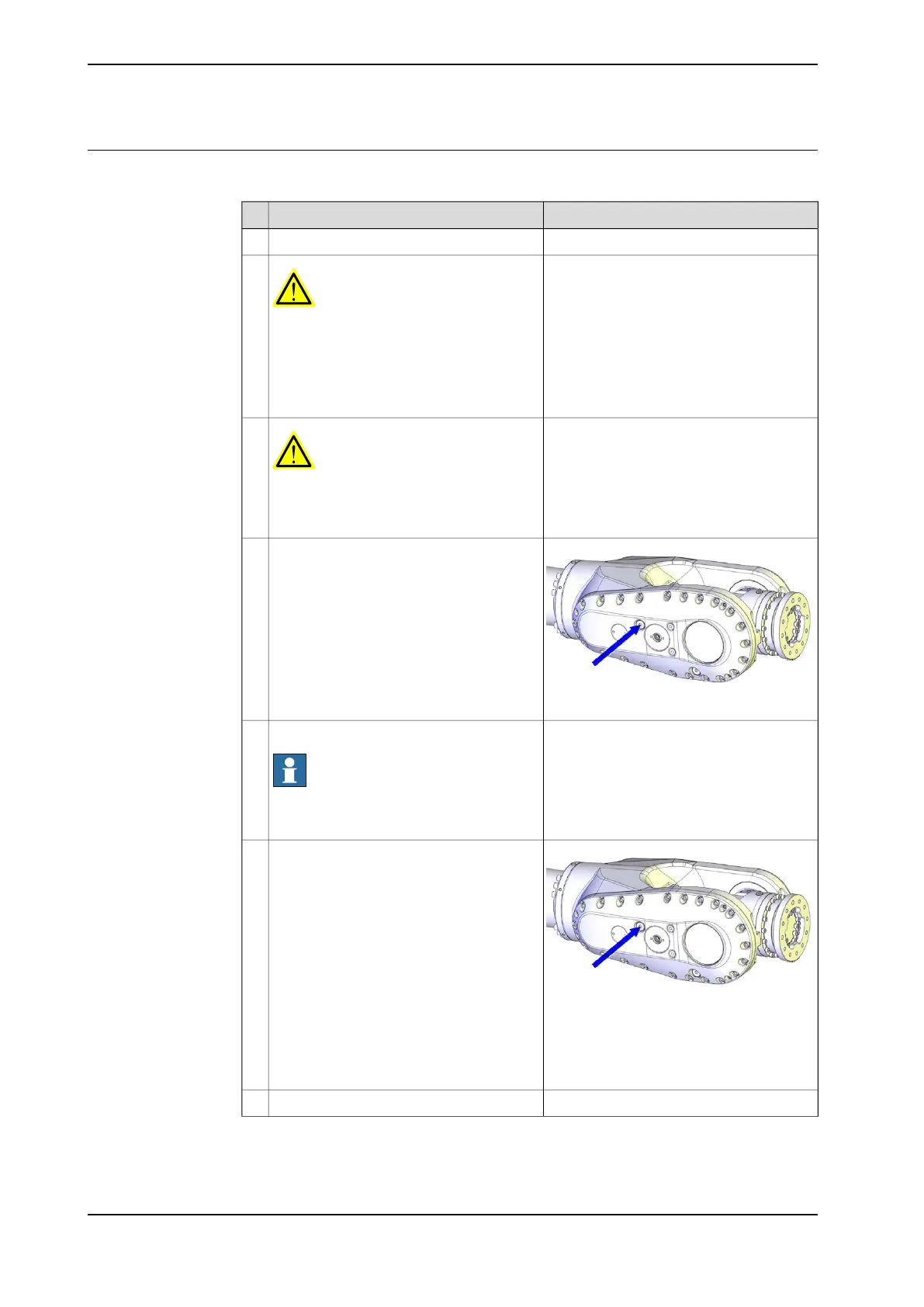

Filling oil into the axis-5 gearbox
Use this procedure to refill the gearbox with oil.
NoteAction
Run the robot to calibration position.1
DANGER
Turn off all:
• electric power supply
• hydraulic pressure supply
to the robot, before entering the safe-
guarded space.
2
WARNING
Handling gearbox oil involves several
safety risks, see Gearbox lubricants (oil or
grease) on page 31.
3
xx1200000959
Open the fill/level plug.4
Type of oil and total amount is detailed in
Technical reference manual - Lubrication
in gearboxes.
Refill the gearbox with oil.
Note
The amount of oil to be filled depends on
the amount previously being drained.
5
xx1200000959
Inspect the oil level at the oil fill/level hole
(level plug).
6
Required oil level is: 0 - 10 mm below the
oil plug hole.
More information is found in Inspecting the
oil level in axis-5 gearbox on page 109.
Tightening torque: 24 NmRefit the oil plug.7
Continues on next page
152 Product manual - IRB 6790
3HAC063331-001 Revision: B
© Copyright 2019 - 2020 ABB. All rights reserved.
3 Maintenance
3.5.6 Changing oil, axis-5 gearbox
Continued
