NoteAction
xx1300000485

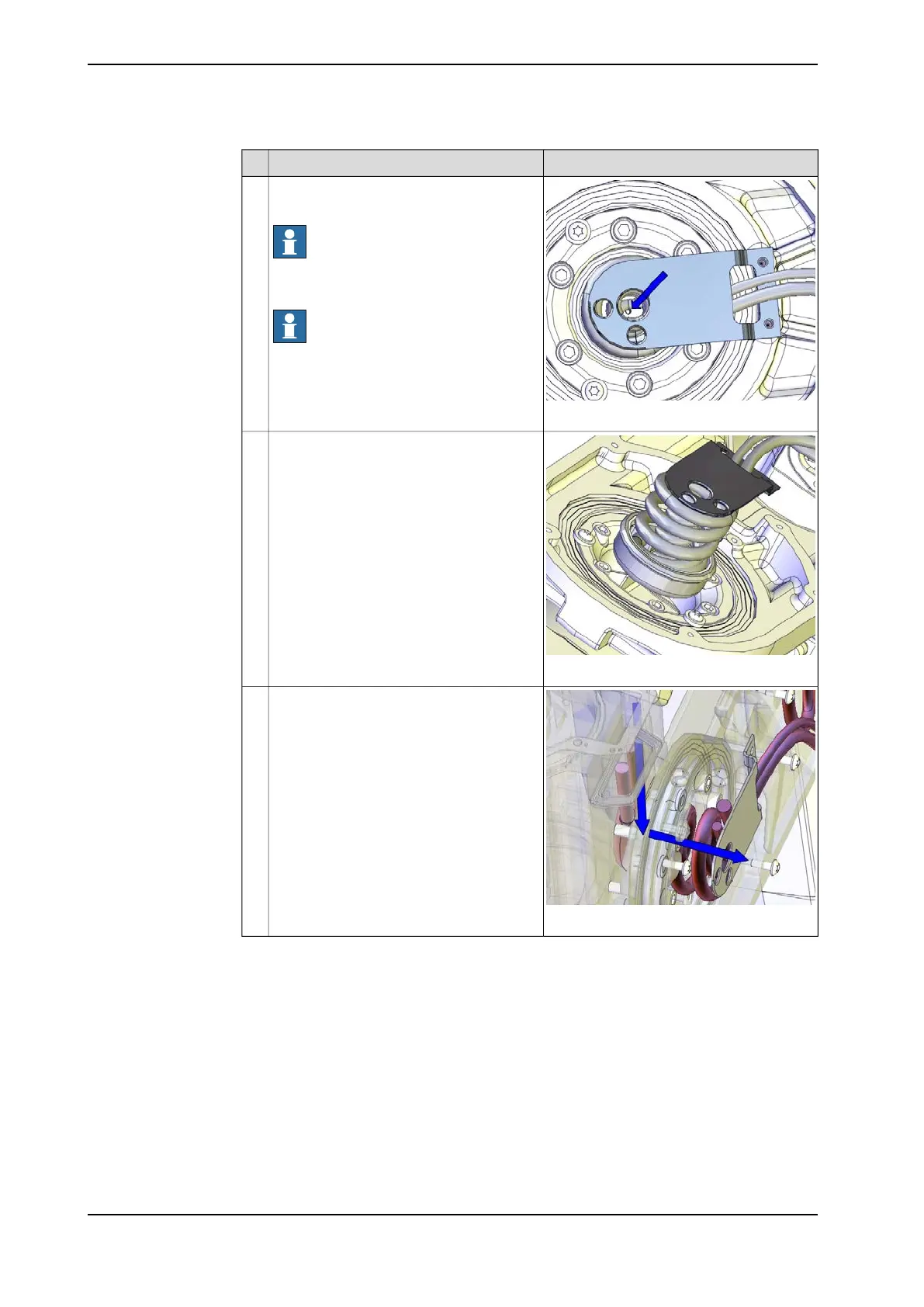

Unscrew the M4 screw that holds the carri-
er.
Note
The screw is located at the bottom of the
carrier.
Note
The parts are sealed with flange sealant
Loctite 577. Remove the part carefully.
5
xx1300001113
Pull out the carrier from its position.6
xx1300000666
Pull out the axis-6 motor cables by holding
the cables with one hand at the motor and
the other at the carrier.
7
Continues on next page
330 Product manual - IRB 6790
3HAC063331-001 Revision: B
© Copyright 2019 - 2020 ABB. All rights reserved.
4 Repair
4.5.4 Replacing the lower arm
Continued
