NoteAction
Lifting accessory (chain): 3HAC15556-1Fit the lifting accessory to the shackle and
raise to unload the weight.
7

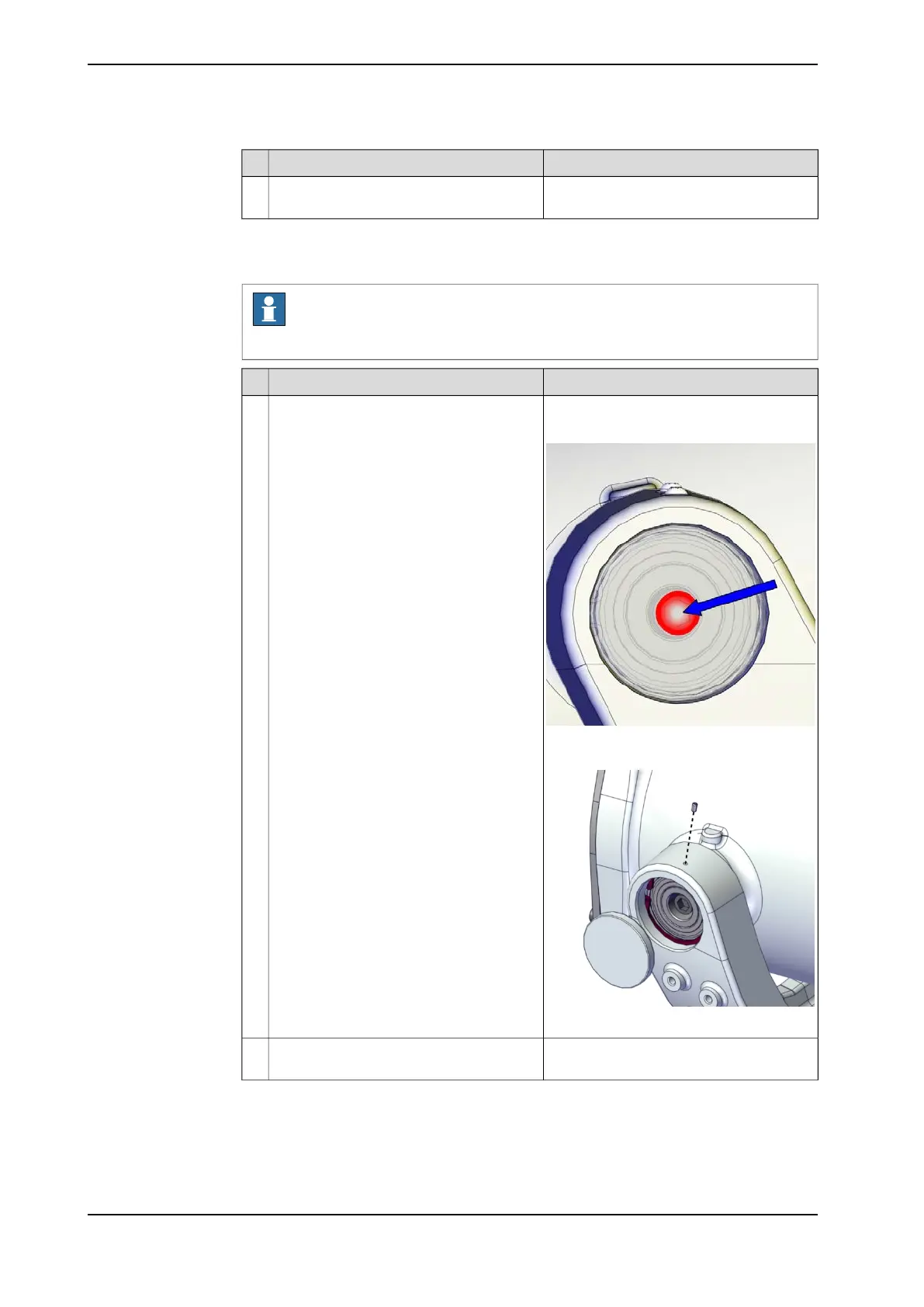

Removing the shaft end, cradle
The procedure of removing the shaft end in the cradle is the same on both sides.
Note
Remove one shaft end at a time!
NoteAction
VK cover, 90x12: 3HAA2166-36
Position for screwdriver:
xx1300000662
Remove the VK cover using one of the re-
commended methods:
• Drive a screwdriver (or similar)
through the VK cover, as close as
possible to the center of the VK
cover, and bend out the cover. If not
making a hole in the center of the
VK cover, there is a risk of damaging
the bearing inside. The damaged VK
cover must be replaced with a new.
• Remove the protection screw from
the vent hole and use air pressure
through the hole to blow out the
cover. The cover can be reused if
not damaged.
1
Vent hole for air pressure:
xx1700001800
Wipe off all residual grease inside the re-
cess.
2
Continues on next page
404 Product manual - IRB 6790
3HAC063331-001 Revision: B
© Copyright 2019 - 2020 ABB. All rights reserved.
4 Repair
4.6.3 Replacing the rear bearings on the balancing device
Continued
