NoteAction

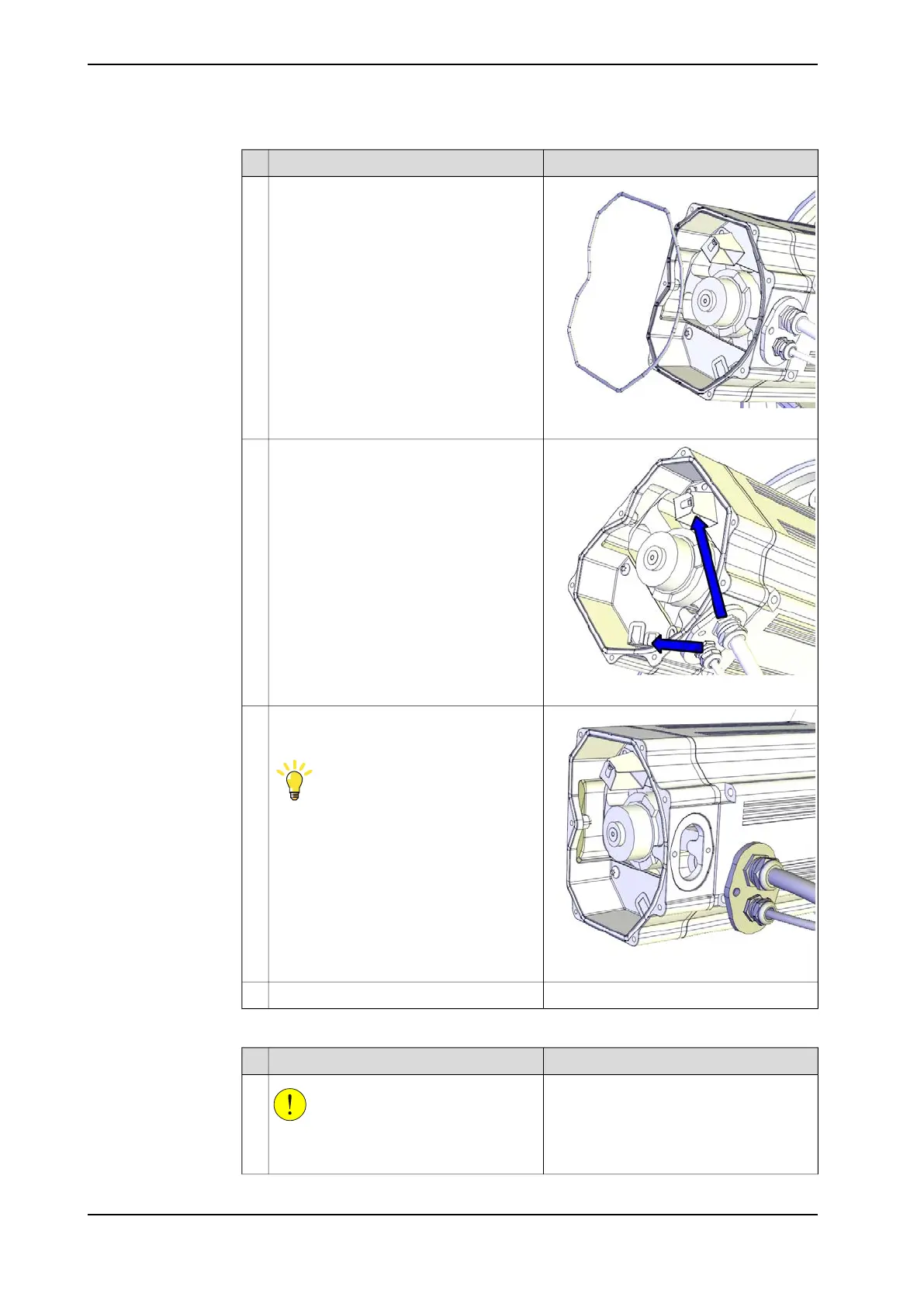

xx1200001070
Make sure the o-ring is present.3
xx1200001066
Disconnect the motor cables.4
xx1200001067
Remove the cable gland cover.
Make sure the gasket is not damaged.
Tip
Make a note in which direction the cable
gland hole is facing, if the motor will be re-
moved too. The motor shall be refitted in
the same position.
5
Use caution and pull out the motor cables.6
Removing the axis-4 motor
NoteAction
CAUTION
Use caution when releasing the brakes!
Axis-4 can move unexpectedly!
1
