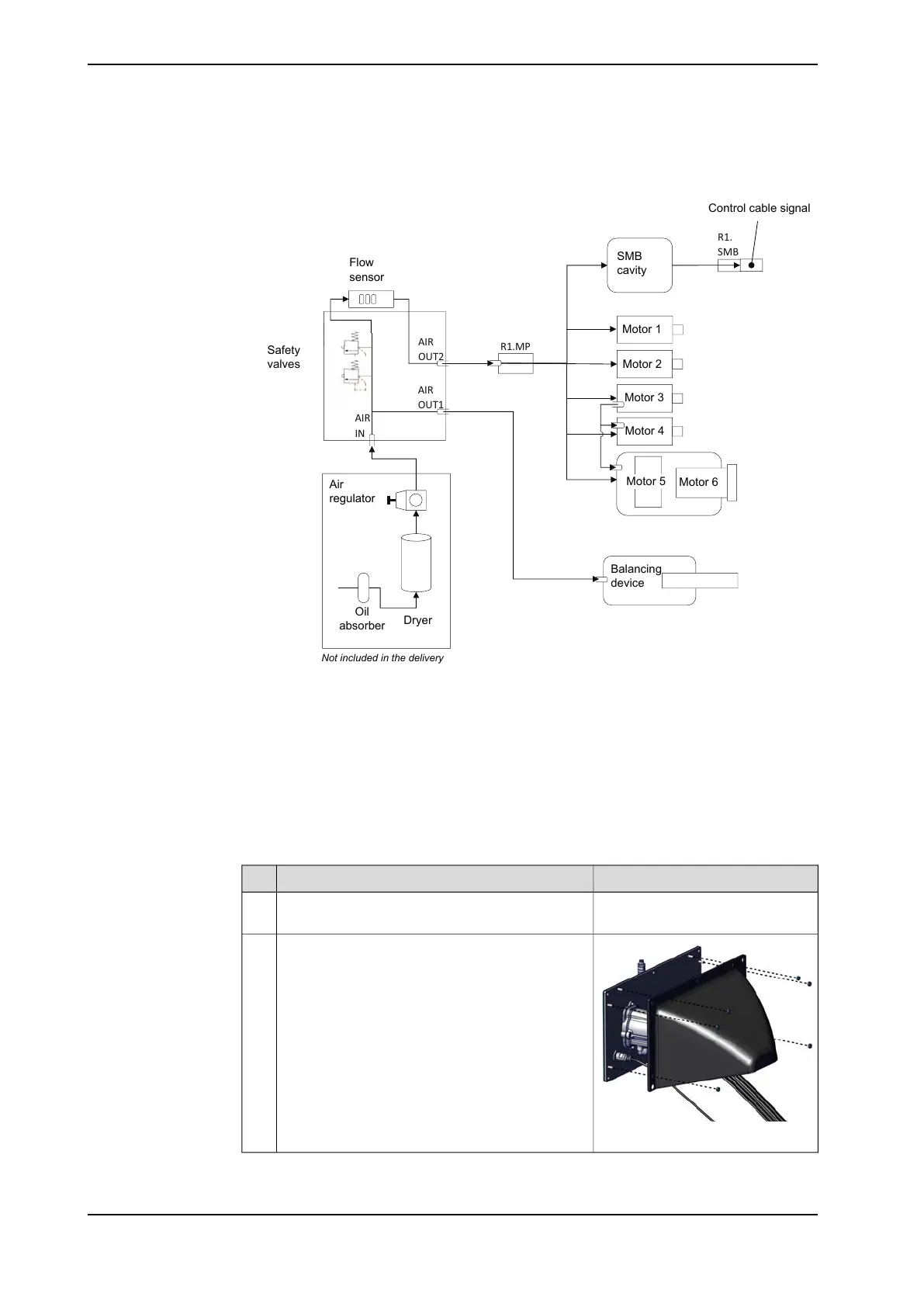

Overpressure diagram
AIR
OUT1
AIR
IN
AIR
OUT2
R1.MP
R1.
SMB
Motor 4
Motor 6
Motor 5
Balancing
device
Motor 3
Motor 2
Motor 1
SMB
cavity
Flow
sensor
Safety
valves
Air
regulator
Dryer
Oil
absorber
Not included in the delivery
Control cable signal
xx1900002084
Connect the adapter cable
Connect the flow sensor cable to the controller and the flow sensor.
Installation of the harness/interface cover
The harness/interface cover is delivered separately with the robot. It must be
installed before the robot is taken into use. It protects the connectors against direct
water or chemicals.
NoteAction
Remove the nuts from the studs on the interface
plate.
1
xx1800000685
Pull the harness through the cover and fasten the
cover with the nuts.
2
