Parameters 129
Motor torque 01.10 Motor torque (page 95). 6
DC voltage 01.11 DC voltage (page 95). 7
Power inu out 01.14 Output power (page 95). 8
Speed ref ramp in 23.01 Speed ref ramp input (page 157). 10
Speed ref ramp out 23.02 Speed ref ramp output (page 157). 11
Speed ref used 24.01 Used speed reference (page 162). 12
Torq ref used 26.02 Torque reference used (page 178). 13
Freq ref used 28.02 Frequency ref ramp output (page 186). 14
Force Pt100
excitation
The output is used to feed an excitation current to 1…3 Pt100
sensors. See section Motor thermal protection (page 65).
20
Force KTY84
excitation
The output is used to feed an excitation current to a KTY84
sensor. See section Motor thermal protection (page 65).
21
Force PTC
excitation
The output is used to feed an excitation current to 1…3 PTC
sensors. See section Motor thermal protection (page 65).
22
Force Pt1000
excitation
The output is used to feed an excitation current to 1…3
Pt1000 sensors. See section Motor thermal protection (page
65).
23
AO1 data storage 13.91 AO1 data storage (page 132). 37
AO2 data storage 13.92
AO2 data storage (page 132). 38
Other Source selection (see Terms and abbreviations on page 92). -

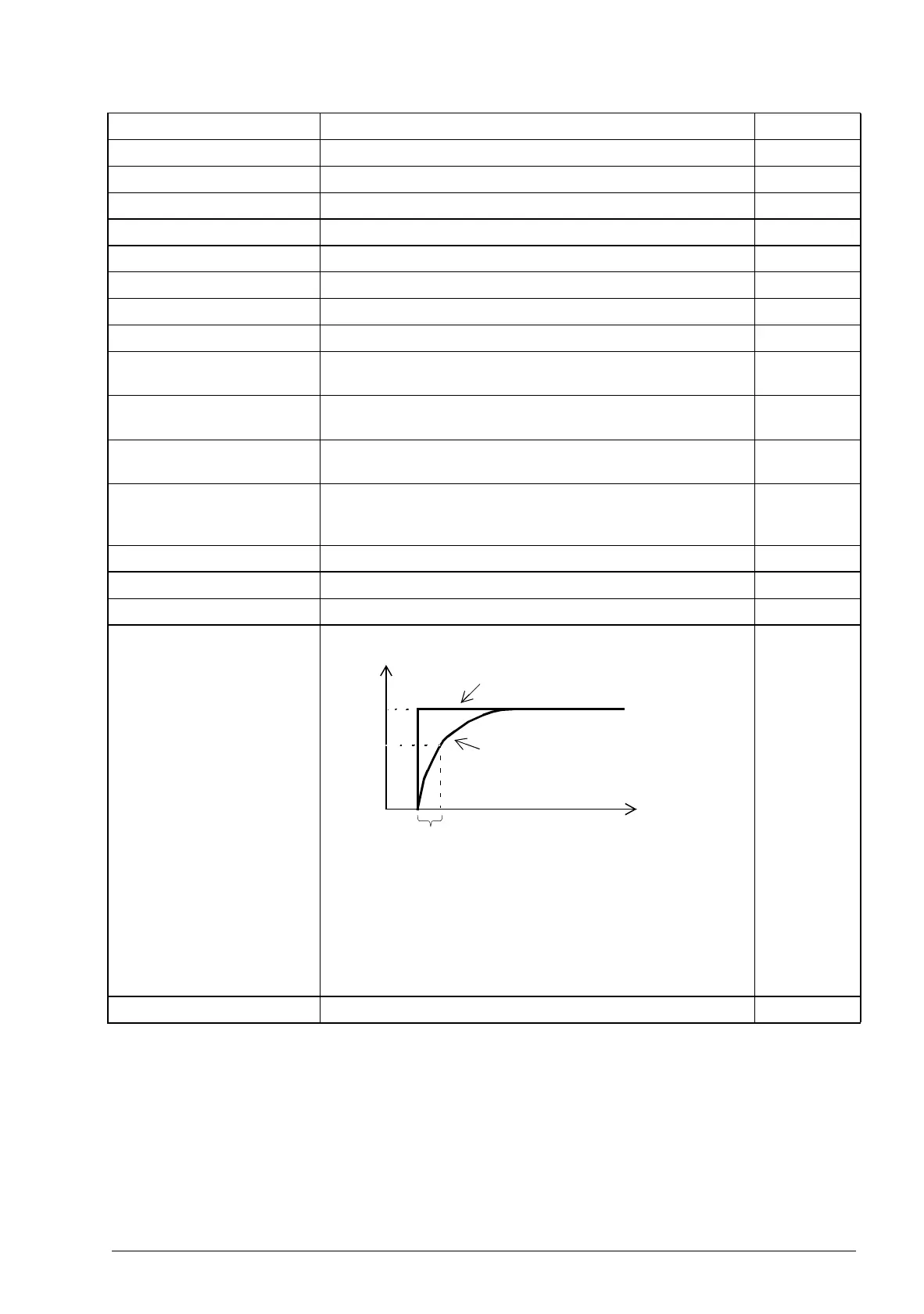

13.16 AO1 filter time Defines the filtering time constant for analog output AO1. 0.100 s
0.000 … 30.000 s Filter time constant. 1000 = 1 s
No. Name/Value Description Def/FbEq16
63
%
100
T
t
O = I × (1 - e
-t/T
)
I = filter input (step)
O = filter output
t = time
T = filter time constant
Unfiltered signal
Filtered signal
