Ramp
The ramp is used for installing and replacing the D8T module in the Rittal TS 8 enclosure.
Note: Do not use the ramp with plinth heights over 100 mm. The ramp is designed for a
plinth height of 100 mm (the standard plinth height of Rittal TS 8 cabinets).
See the dimension drawing, see section Ramp on page 390.
AC-side components (1×D8T, Rittal TS 8 enclosure)
Common AC Flat-PLS assembly
When using the Rittal Flat-PLS system, this kit is used for correct positioning of the
common AC bus in the Rittal TS 8 enclosure.
Note: The designs presented in this manual for Rittal TS 8 enclosures employ the Rittal
Flat-PLS busbar system. Make sure that the current carrying capability of the busbars is
not exceeded at any point of the drive system.
Frame
size

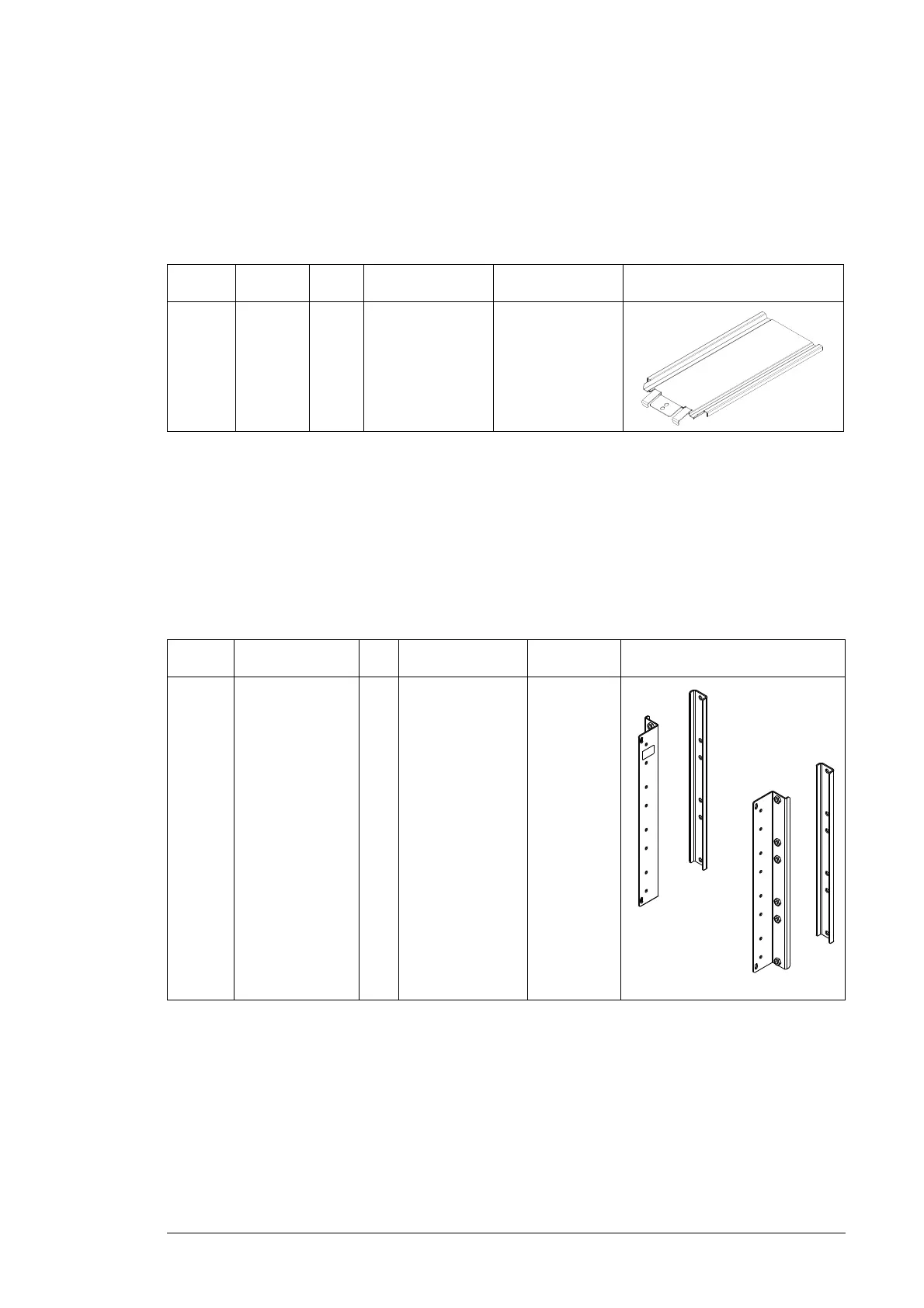

Enclosure Qty Ordering code Kit code Illustration
R8i All 1 3AUA0000120467 A-468-8-304
Frame
size
Enclosure Qty Ordering code Kit code Illustration
All 400 mm 1 3AUA0000115905 A-468-X-011
Instruction code: 3AUA0000115893
