ABB ACS880-04 - Common Mode Filters; Inverter DC Fuses

Ordering information 233
 Common mode filters
Common mode filtering reduces bearing currents and is required for electromagnetic
compatibility (EMC). The filtering is implemented by installing two toroidal cores onto the
DC input busbars.
DC busbar kit contains a holder for the filters.
For the dimension drawing, see section Common mode filter on page 392.
 Inverter DC fuses
DC fuses protect the modules and drive DC bus against short circuits. For dimension
drawings, see section DC fuses on page 383.

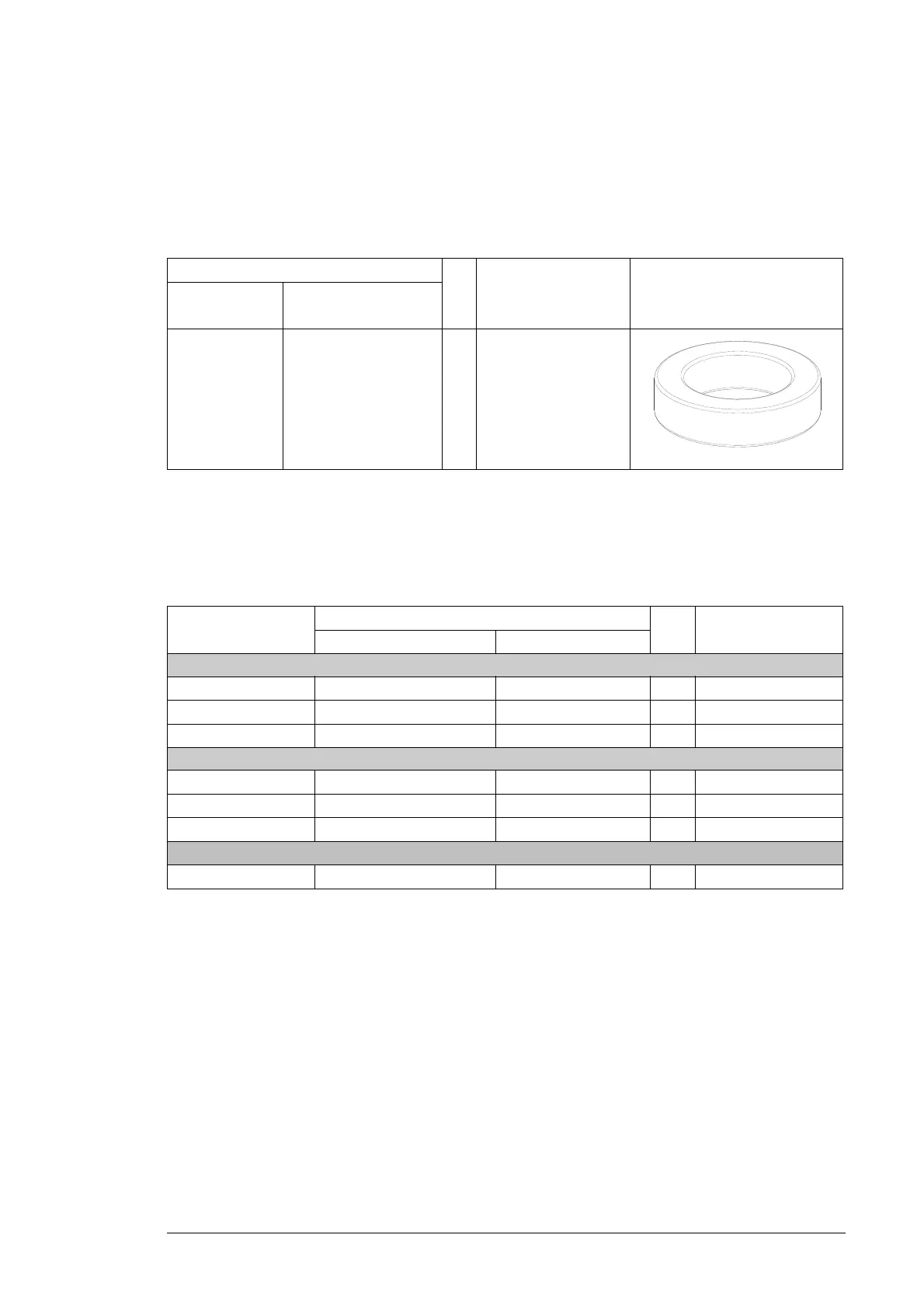

Common mode filter (IEC, UL, CSA) Qty Ordering code Illustration
Type Data
VITROPERM
250F
250 F / 4.2 μH 4 3AUA0000032859
Instruction code: 3AUA0000123359
ACS880-04-… Fuse (IEC, UL, CSA) Qty Ordering code
Type Data
U
N
= 400 V (Range 380 … 415 V)
1250A-3 170M6416 1250 A, 690 V 4 68244463
1480A-3 170M6417 1400 A, 690 V 4 3AXD50000000150
1760A-3 170M6419 1600 A, 690 V 4 68393108
U
N
= 500 V (Range 380 … 500 V)
1320A-5 170M6417 1400 A, 690 V 4 3AXD50000000150
1450A-5 170M6417 1400 A, 690 V 4 3AXD50000000150
1580A-5 170M6417 1400 A, 690 V 4 3AXD50000000150
U
N
= 690 V (Range 525 … 690 V)
1160A-7 170M6549 1100 A, 1000 V 4 68736021
