5.4.8 Data logger
Pos: 15.6.33.2 /Layout bis 2014- 11-11/Online-D okumentation ( +KNX)/Bedienung/ KNX/KNX-Aktor ik/ComfortPane l 3.0/Bedienungs anleitung/ Erläuterung der Funktionen/Dat enloggerDatenl ogger @ 40\ mod_1418896202650_15.d ocx @ 310660 @ @ 1
The data logger integrated in the Busch-ComfortTouch
®
can graphically display data for up to eight
communication objects. If these communication objects with sensors are linked via group addresses, then the
energy consumption of a house, the power of a photovoltaic system or the fill level of an oil tank can be
visualised, for example.
Note
The data logger can display up to 4 graphs (data points) in one view. The individual graphs can be
named and colour coded. For this the legend is displayed.
The Busch-ComfortTouch
®
can store the values as file in a specified directory to allow the determined values to
be further processed. The following storage media can be used:
- SD Card
- USB stick
- Network

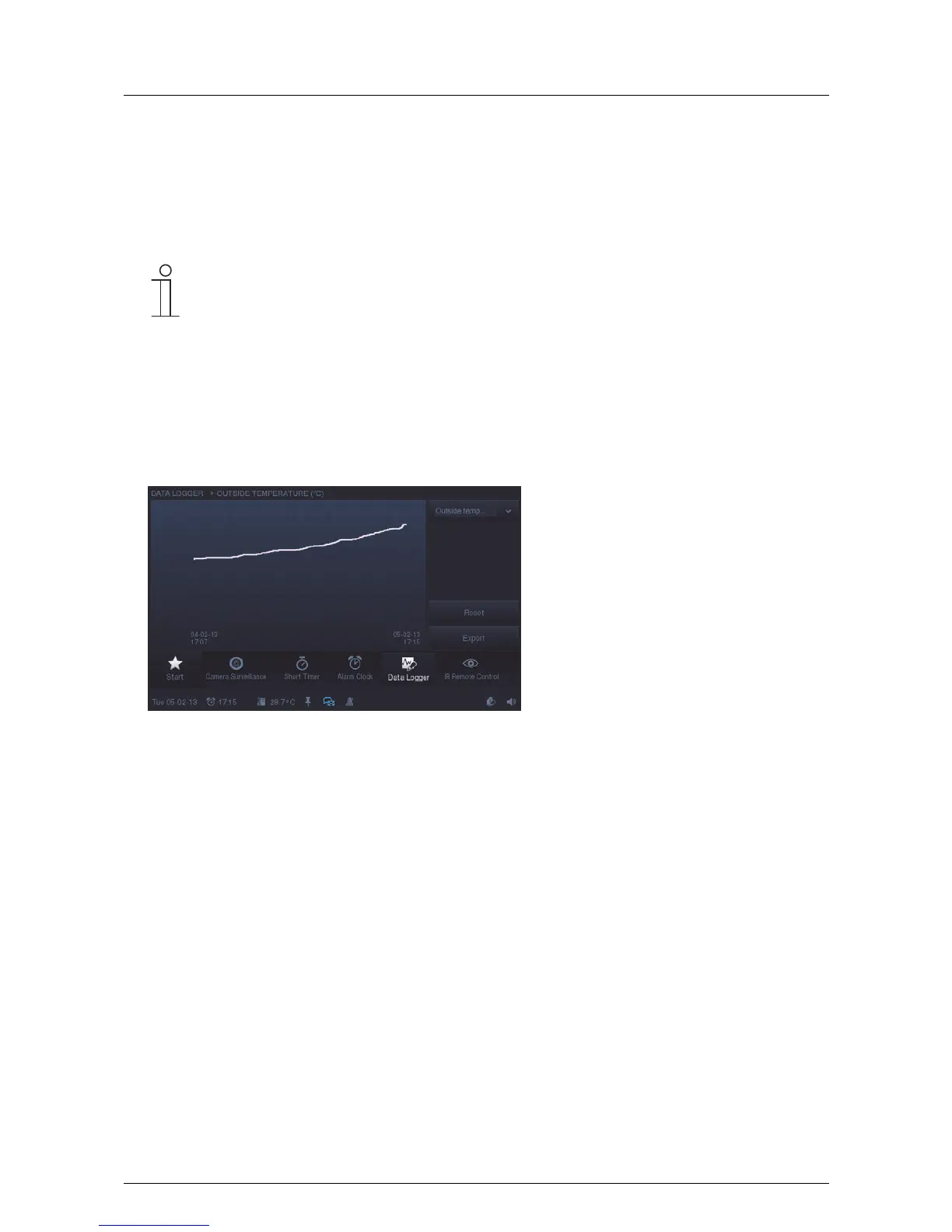

1. Press the "Data logger" icon in the navigation bar to access the function.
If several views are available, they are listed on the right side. The respective view opens when an entry is
touched. The values can be reset via "Reset". With the aid of "Export" the data of the specified directory are
exported.
