ABB ControlMaster CM10 User Manual

ControlMaster CM10, CM30 and CM50
Universal process controllers,
1
/8,
1
/4 and
1
/2 DIN 6 Basic Level
IM/CM/S–EN Rev. R 35
…Basic

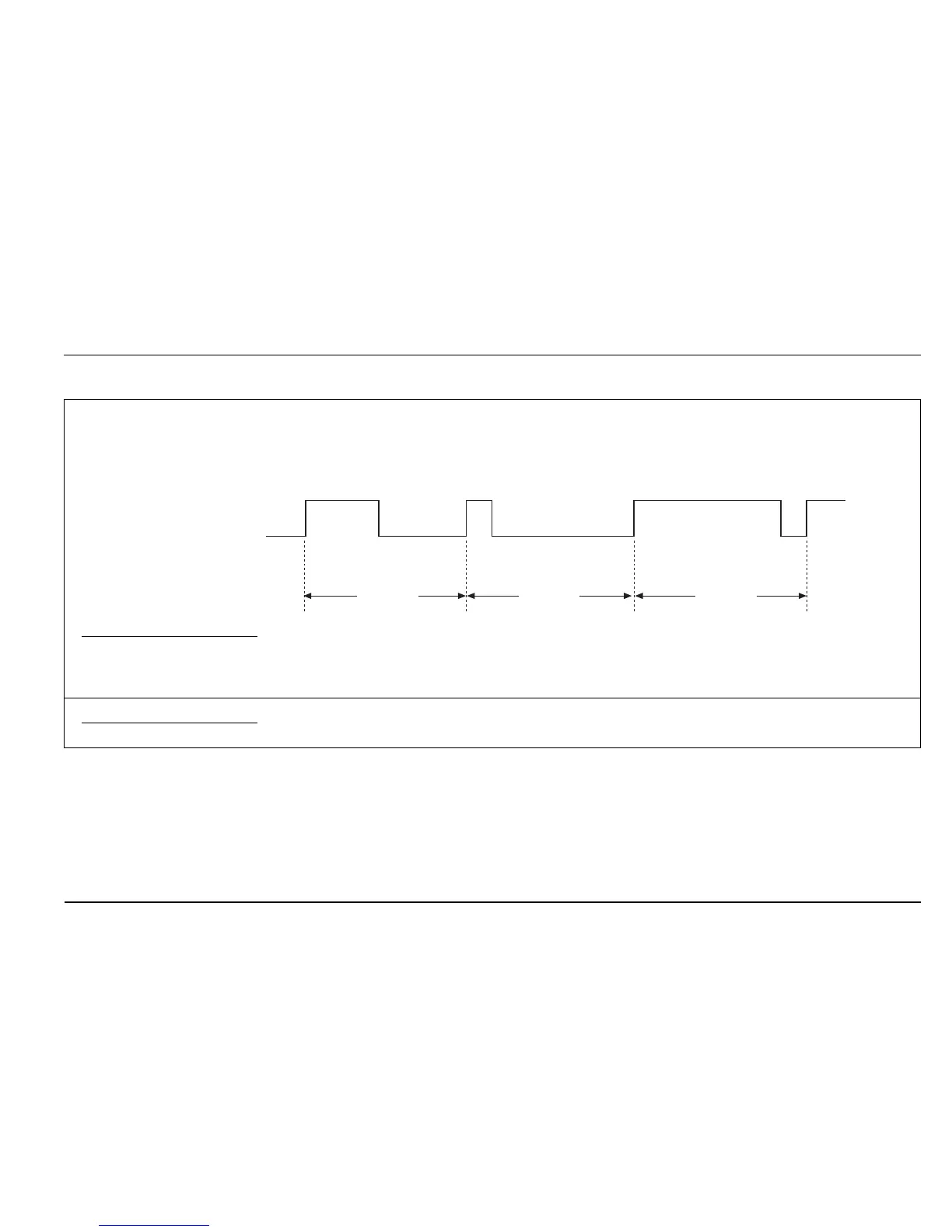

Loop 1 Time Prop The active time of the output pulse is proportional to the value of the control output. With 100%
output the pulse is active for the complete cycle time, for example:
Note. Applicable only if Output Type is Time Prop or Split Output (and one output is a relay or a
digital output) – see page 36.
Cycle Time 1 (2) The cycle time to be used with time proportioning outputs.
For split outputs, the Cycle Time 1 setting applies to Output 1 and Cycle Time 2 setting applies
to Output 2.
Alarm 1 (8)
Trip The alarm trip level in engineering units. See Process Alarm (page 64) for parameter details.
Cycle Time
= 10 s
Cycle Time
= 10 s
Cycle Time
= 10 s
50 % Output 10 % Output 90 % Output
5 s 5 s
1s
1s9 s 9 s
