ABB ControlMaster CM15 User Manual

ControlMaster CM15 and CMF160
Universal process indicator
1
/8 DIN 10 Specification
92 IM/CM/I–EN Rev. P
EMC
Emissions & immunity
Meets requirements of IEC 61326 for an Industrial Environment
Environmental
Operating temperature range
0 to 55 °C (32 to 131 °F) *
Operating humidity range
5 to 95 % RH (non-condensing)
Storage temperature range
–20 to 70 °C (–4 to 158 °F)
Enclosure sealing
Vibration (CM15)
Conforms to EN60068–2–6
*Restrictions may apply – refer to relay specification, page 90.
Safety
Approvals and certifications
EN 61010-1
cULus
General safety
Overvoltage Class III on mains, Class II on inputs and outputs

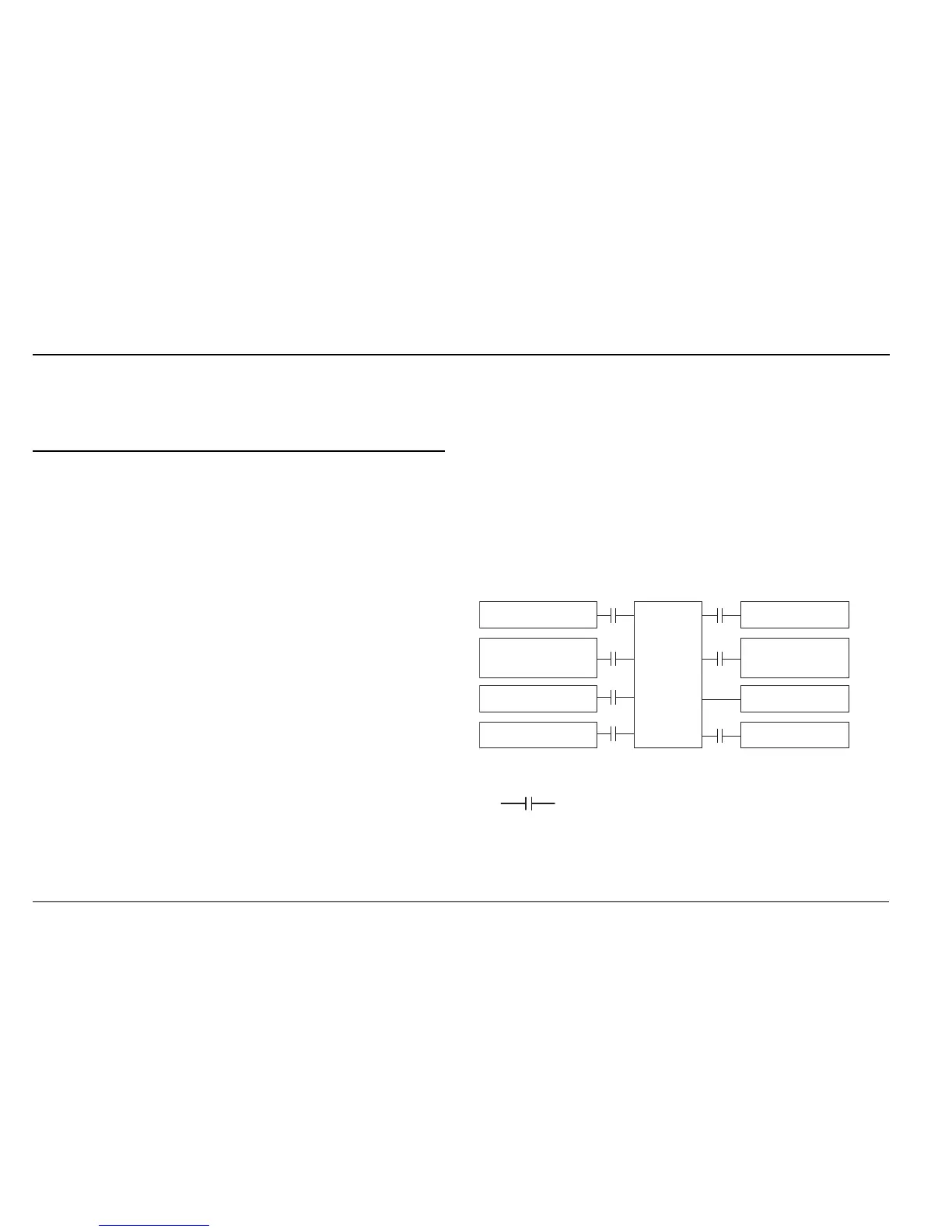

Isolation
Key
= Isolation
*Isolated on CMF160 only
CM15:
Front face IP 66 & NEMA 4X
Rest of enclosure
IP20
CMF160:
Front face / rest of enclosure IP 66 & NEMA 4X
CM15: Pollution Degree 2, Insulation Class 2
CMF160: Pollution Degree 2, Insulation Class 1
*
*
Analog Inputs
Analog Output 1
Analog Output 2
Mains Supply
CPU
Comms
Relays
Digital I/O
Transmitter Power
Supply

ABB ControlMaster CM15 Specifications

General

Brand	ABB
Model	ControlMaster CM15
Category	Controller
Language	English
