ABB DCS880 series Hardware Manual

Dimensions and weights
122
3ADW000462R0401 DCS880 Hardware manual e d

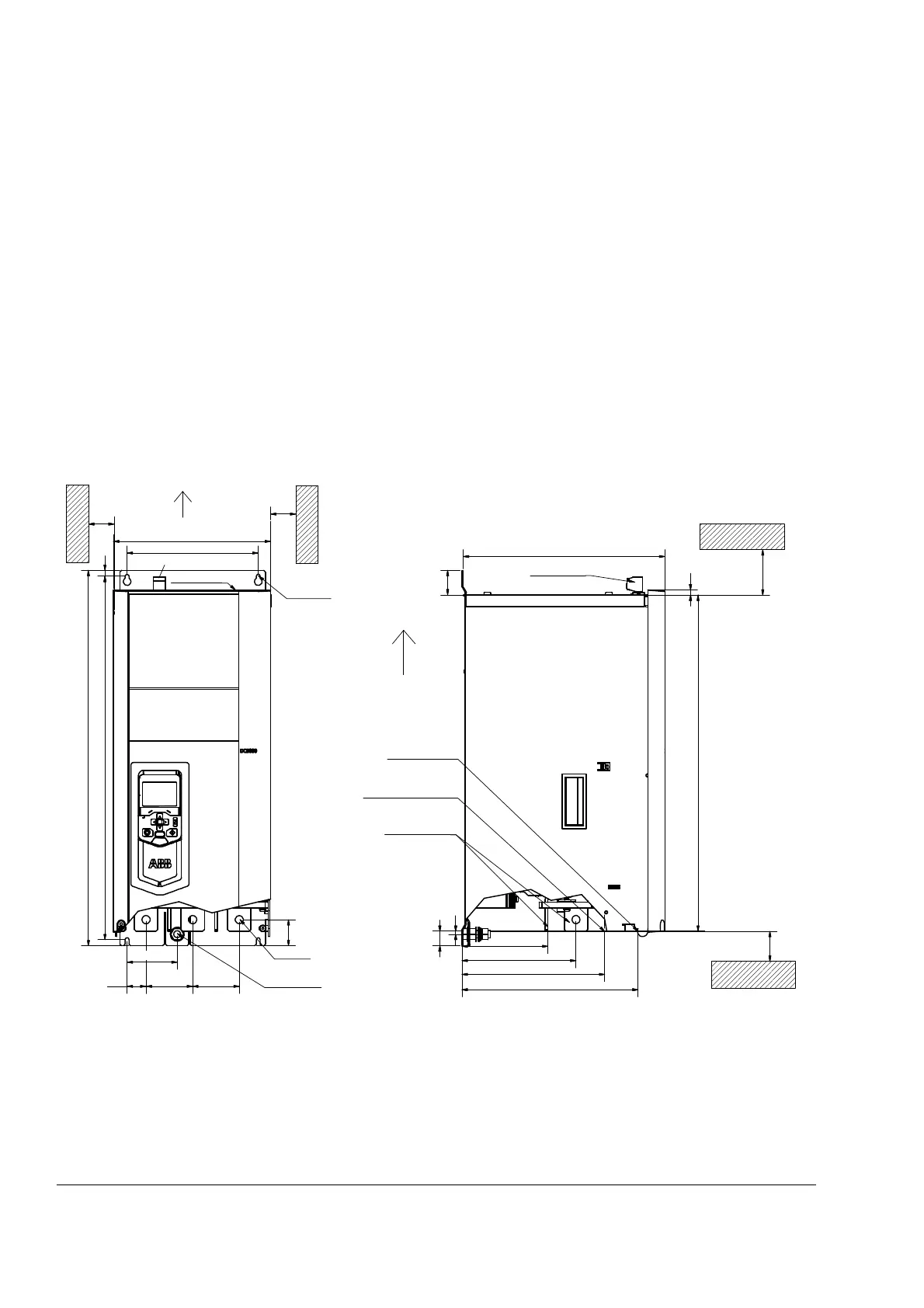

Size H4
DCS880-S01-0610
DCS880-S01-0740
DCS880-S01-0900
DCS880-S02-0680
DCS880-S02-0820
DCS880-S02-1000
600 V Units
DCS880-S01-0590
DCS880-S02-0650
MG_880_004_H4_a.ai
625
644
225
270
86
80 8032.5
45
U1 V1 W1
C1 D1
10
min.
10
min.
10
352
9
42
25
5
147.5
195.5
243 (PIN-H01)
305 (CON-H01)
150
577
250
Screw M6
Screw M12
Earthing M12
Air flow
Signal terminals
Power terminals
Field terminals
Field terminals
Fan terminals
Aux. supply terminals
Minimum
bottom clearance
Minimum
top clearance
Mounting direction

ABB DCS880 series Specifications

General

Cooling Method	Air-cooled, liquid-cooled
Control Type	Direct Torque Control (DTC)
Communication Protocols	Ethernet, Modbus RTU, Modbus TCP, PROFIBUS DP, PROFINET, EtherCAT
Protection Class	IP00, IP21, IP54
Safety	STO (Safe Torque Off)
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overtemperature
Ambient Temperature	-20 to +55 °C (derating may apply)
Input Voltage	3-phase, 380-830 V AC
