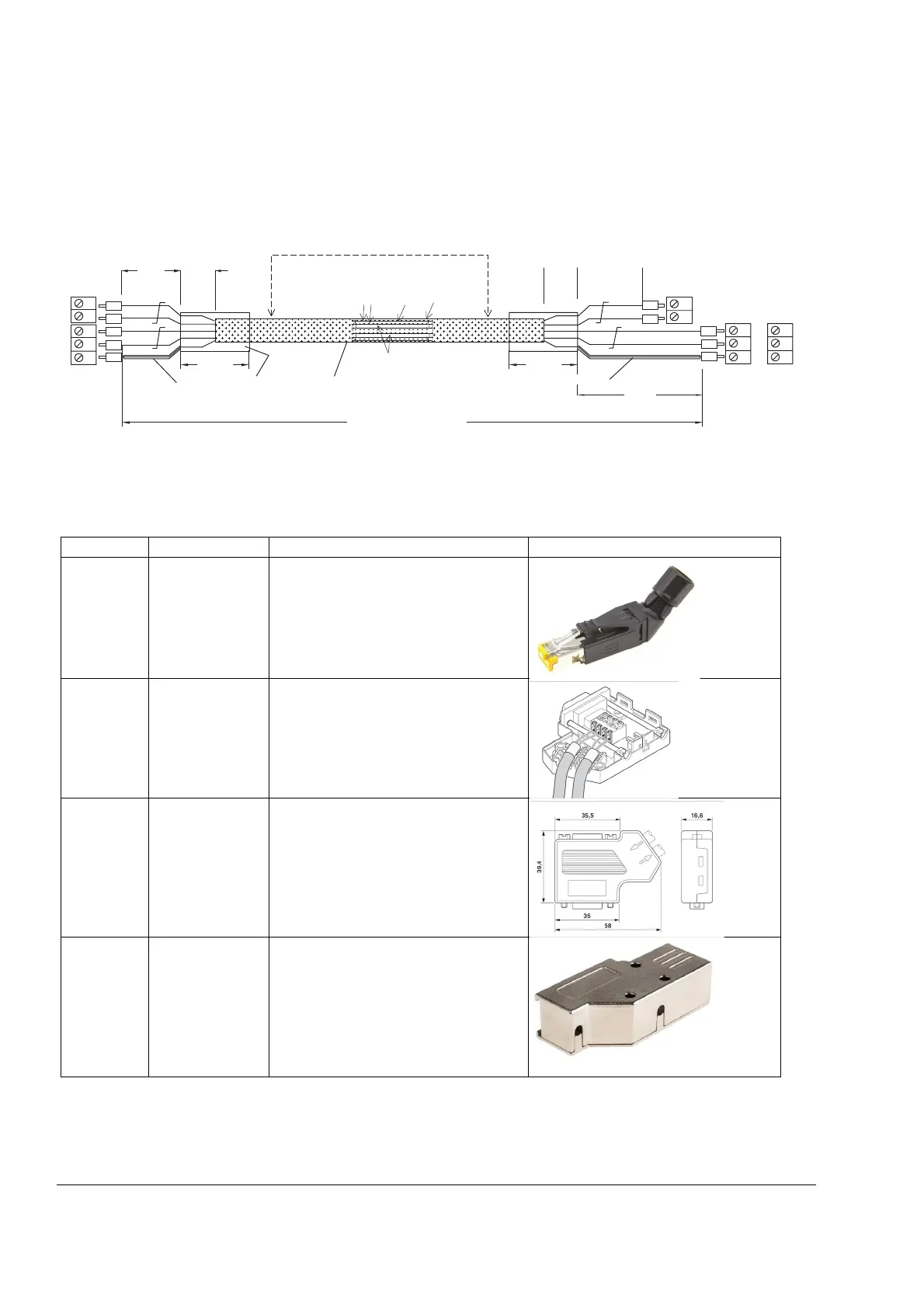

Other cables
Recommended connectors
DCSLink cable
Option Type Manufactures description Picture
FENA-x1 RJ45 HARTING RJ Industrial® 10G
Type: 09 45 151 1561
FBPA-01 D-Sub9 Subcon-Plus-Profib
Type: 2744348
FCAN-01 D-Sub9 SUBCON-PLUS-CAN
Type: 2708119
FEN-xx D-Sub9 or
D-Sub 15 high
density
MH Connectors Sub-D9, 90°
Type: MHDCMR09-K
(just the housing, use standard
D-Sub9 or D-Sub15 high density
connectors)
X1: DCF803-0016
FEX-425-Int DCF803-0035
ME_KAB_001_DCSLink_b.ai
20 mm
30 mm 10 mm
40 mm
10 mm
140 mm
20 mm
3
2
1
1
2
1
2
3
2
1
3
1
2
5
3
4
2
1
3
1
2
1
2
X3: DCF803-0016
FEX-425-Int DCF803-0035
X2: DCF803-0050
DCF803-0060
DCF804-0050
DCF804-0060
SDCS-DSL-H1x: X51
SDCS-DSL-H1x: X52/X53
red
black
white
blue
screen
black
Heat shrink tubing
Cable
Dismantle for
shield grounding
Tinfoil
Screen
wire
netting
Cable
sheath
0.54 / 2 / 4 / 10 / 20 m
Two cable pairs
not twisted
red
black
white
blue
screen
black
Heat shrink tubing

ABB DCS880 series Specifications

General

Cooling Method	Air-cooled, liquid-cooled
Control Type	Direct Torque Control (DTC)
Communication Protocols	Ethernet, Modbus RTU, Modbus TCP, PROFIBUS DP, PROFINET, EtherCAT
Protection Class	IP00, IP21, IP54
Safety	STO (Safe Torque Off)
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overtemperature
Ambient Temperature	-20 to +55 °C (derating may apply)
Input Voltage	3-phase, 380-830 V AC
