The DCS880

3ADW000462R0401 DCS880 Hardware manual e d

The DCS880

Chapter overview

This chapter describes briefly the operating principle and construction of the converter modules in short.

The DCS880 converter modules

The DCS880-S size H1 ... H8 are intended for controlling DC motors.

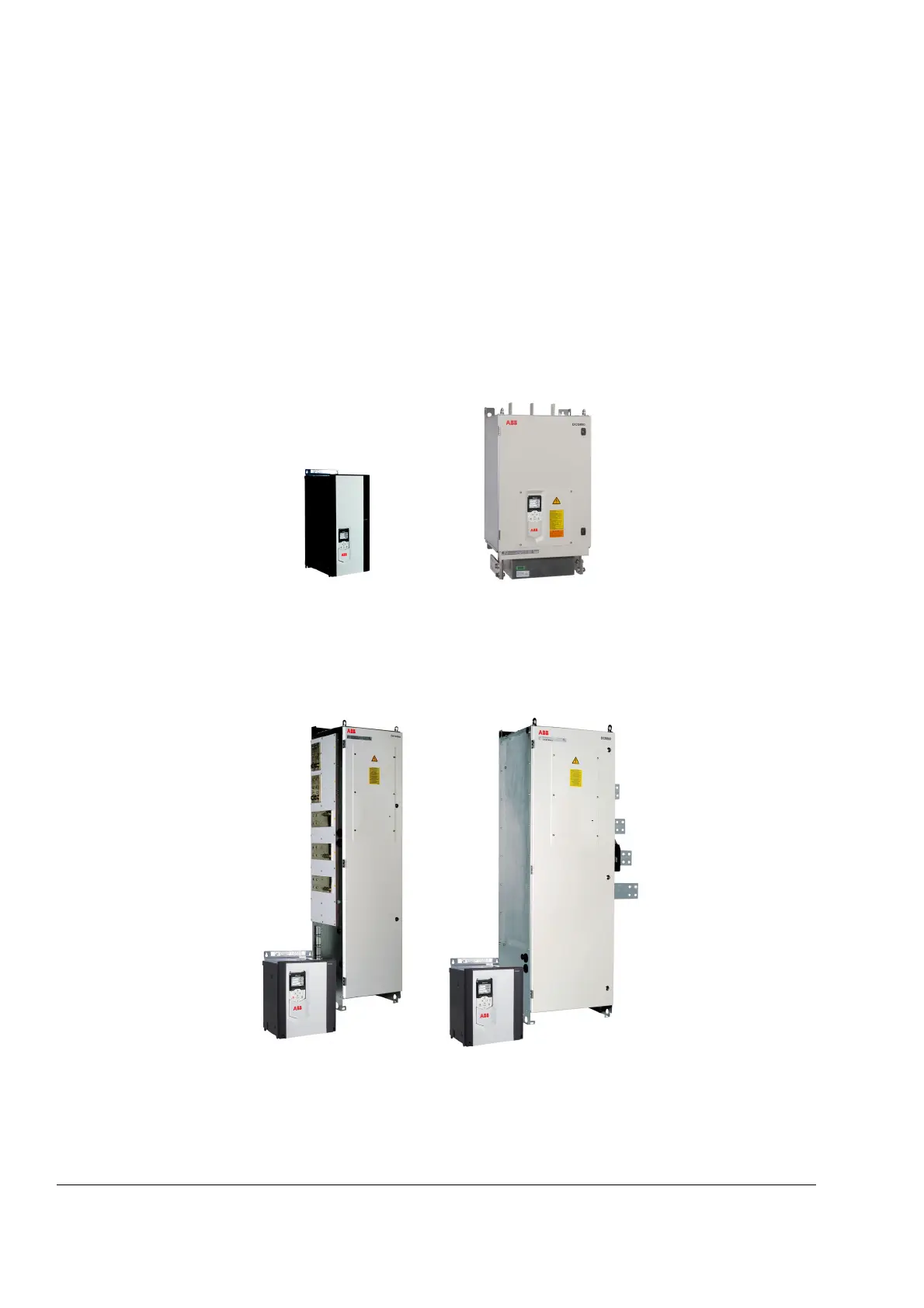

Size H1 ... H5

20 ... 1190 A

Size H6

900 ... 2000 A

Size H7

1900 ... 3000 A

Size H8

2050 ... 5200 A

Other manuals for ABB DCS880 series

Need help?

Do you have a question about the ABB DCS880 series and is the answer not in the manual?

General

Cooling Method	Air-cooled, liquid-cooled
Control Type	Direct Torque Control (DTC)
Communication Protocols	Ethernet, Modbus RTU, Modbus TCP, PROFIBUS DP, PROFINET, EtherCAT
Protection Class	IP00, IP21, IP54
Safety	STO (Safe Torque Off)
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overtemperature
Ambient Temperature	-20 to +55 °C (derating may apply)
Input Voltage	3-phase, 380-830 V AC
