ABB DCS880 series Hardware Manual

Electrical installation
76
3ADW000462R0401 DCS880 Hardware manual e d
Connecting a control unit at H7 and H8 power units
During installation the control unit needs to be connected with the power unit using fiber optic cables.
For a standard drive connect the fiber optic cables from the SDCS-DSL-H1x (control unit) to the
SDCS-OPL-H01(power unit).
The mains contactor is controlled via XSMC (X96) on the SDCS-OPL-H01 located in the power unit.
The current measuremnet using a scope is possible via X4.

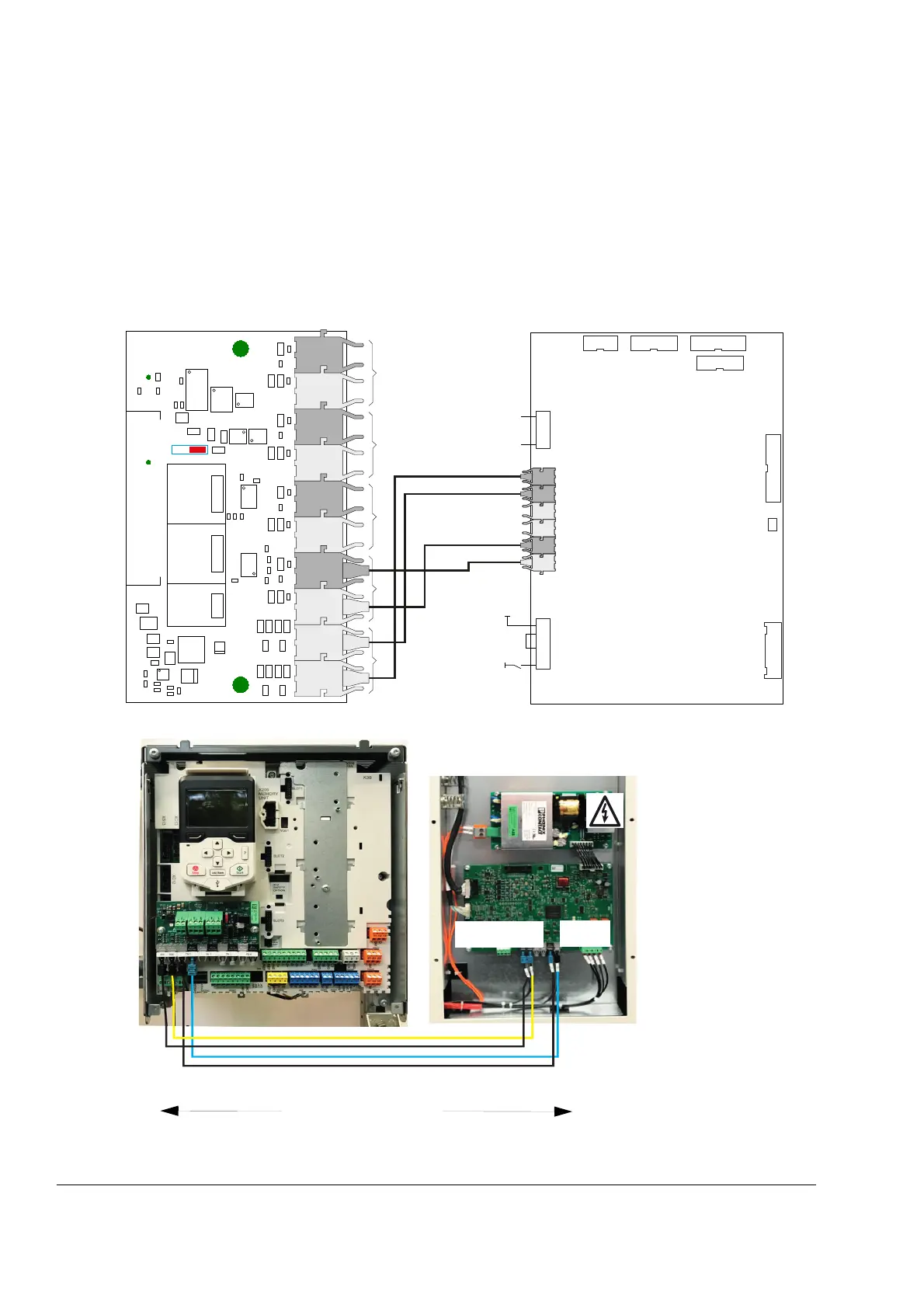

Connecting according to the drawing below:
X38
1
8
XSMC (X96)
1
BL_DSLH1x+OPL_001_b.ai
4
X300
1
6
2
2
25
XS13
XC13
1
2
1
2
16
15
XC12
1
2
16
15
X14
1
2
10
9
20
19
1
2
5
6
X350
X4
IACT GND
V11
STO in STO out Control
Rx
V12
Rx
V1
Rx
V21
Tx
V22
Tx
V2
Tx
1
4
L
Mains
contactor
V11
STO OPL CH1 OPL CH2 OPL CH3 OPL CH4
V12 V1 V2 V3 V4 V5 V6 V7 V8
X51
1 2 1 2 3 1 2 3
X52 X53
J1
ON
Current measure-
ment via scope
Mains
contactor
Control unit
Max. 5 m POF
Power unit

ABB DCS880 series Specifications

General

Cooling Method	Air-cooled, liquid-cooled
Control Type	Direct Torque Control (DTC)
Communication Protocols	Ethernet, Modbus RTU, Modbus TCP, PROFIBUS DP, PROFINET, EtherCAT
Protection Class	IP00, IP21, IP54
Safety	STO (Safe Torque Off)
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overtemperature
Ambient Temperature	-20 to +55 °C (derating may apply)
Input Voltage	3-phase, 380-830 V AC
