Accessories
150
3ADW000462R0401 DCS880 Hardware manual e d

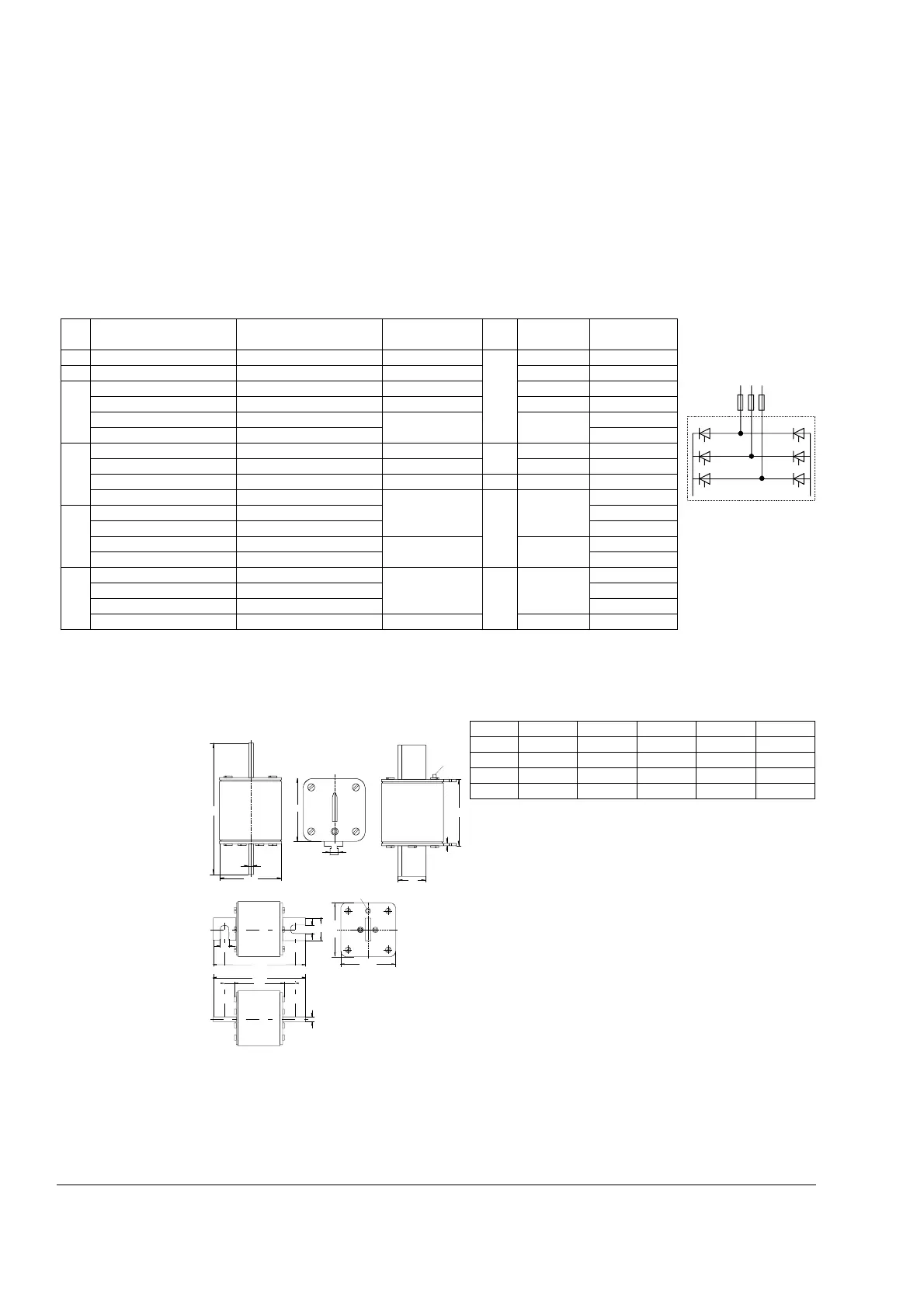

Fuses and fuse holders IEC
Semiconductor fuses and fuse holders for AC and DC power lines
The DCS880 size H1 ... H4 requires external mains fuses. For regenerative drives, DC fuses are
recommended. The 4
th
column of the table below assigns the AC fuse to the unit. In case the unit
should be equipped with DC fuses, use the same type of fuse as used on the AC side.
Dimensions of fuses
Size Converter type (2-Q) Converter type (4-Q) Fuse type Fuse
size
Resistance
[mW]
Fuse holder
- - - 10A 660V UR 0 30 OFAX 00 S3L
- - - 25A 660V UR 15 OFAX 00 S3L
H1 DCS880-S01-0020-04/05 DCS880-S02-0025-04/05 50A 660V UR 6 OFAX 00 S3L
DCS880-S01-0045-04/05 DCS880-S02-0050-04/05 80A 660V UR 3 OFAX 00 S3L
DCS880-S01-0065-04/05 DCS880-S02-0075-04/05 125A 660V UR 1.8 OFAX 00 S3L
DCS880-S01-0090-04/05 DCS880-S02-0100-04/05 OFAX 00 S3L
H2 DCS880-S01-0135-04/05 DCS880-S02-0150-04/05 200A 660V UR 1 0.87 OFAX 1 S3
DCS880-S01-0180-04/05 DCS880-S02-0200-04/05 250A 600V UR 0.59 OFAX 1 S3
DCS880-S01-0225-04/05 DCS880-S02-0250-04/05 315A 660V UR 2 0.47 OFAX 2 S3
DCS880-S01-0270-04/05 DCS880-S02-0300-04/05 500A 660V UR 3 0.30 OFAX 3 S3
H3 DCS880-S01-0290-06 DCS880-S02-0320-06 OFAX 3 S3
DCS880-S01-0315-04/05 DCS880-S02-0350-04/05 OFAX 3 S3
DCS880-S01-0405-04/05 DCS880-S02-0450-04/05 700A 660V UR 0.22 OFAX 3 S3
DCS880-S01-0470-04/05 DCS880-S02-0520-04/05 OFAX 3 S3
H4 DCS880-S01-0590-06 DCS880-S02-0650-06 900A 660V UR 4 0.15 3 x 170H 3006
DCS880-S01-0610-04/05 DCS880-S02-0680-04/05 3 x 170H 3006
DCS880-S01-0740-04/05 DCS880-S02-0820-04/05 3 x 170H 3006
DCS880-S01-0900-04/05 DCS880-S02-1000-04/05 1250A 660V UR 0.09 3 x 170H 3006
Size a [mm] b [mm] c [mm] d [mm] e [mm]
078.550352115
1 135 69 45 45 20
2 150 69 55 55 26
3 150 68 76 76 33
L1 L2 L3
F1
a
d
e
2
10
c
6
b
Fuse1_a.dsf
Indicator
Size 4
Size 0 ... 3
76
76
108
30
11
11
14
17
139
6
29
50
29
fuse2_a.dsf
Indicator
