ABB DCS880 series Hardware Manual

Accessories
143
3ADW000462R0401 DCS880 Hardware manual e d

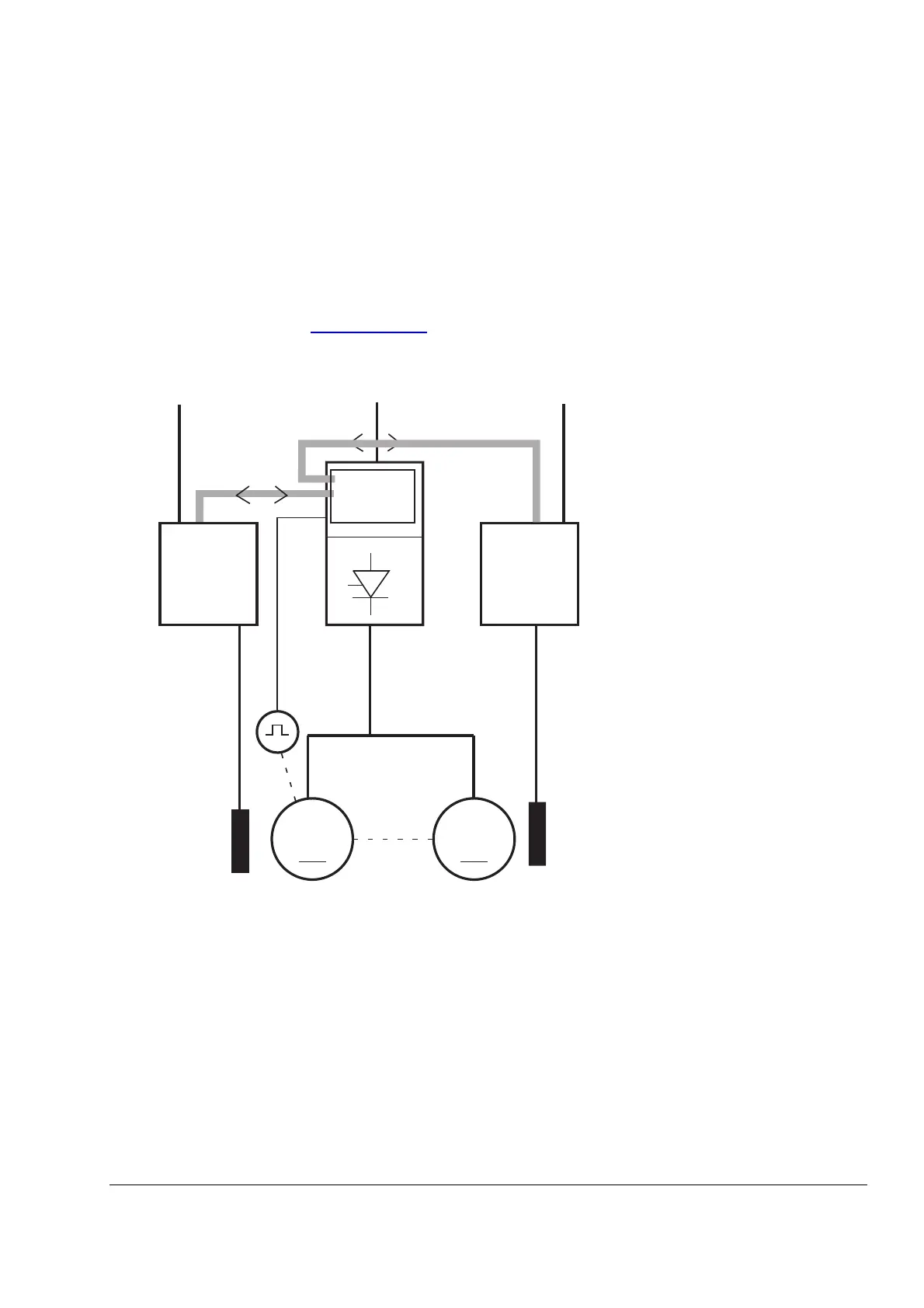

DCF803-0050 / 0060 and DCF804-0050 / 0060 configuration (e.g. 2 motors)
The data exchange between SDCS-CON-H01 and DCF803-0050 / 0060 or DCF804-0050 / 0060 via
serial communication is configured as a bus. This link is used to transfer references, actual values
and settings for up to two field exciters.
The firmware on the SDCS-CON-H01 provides two field exciter functions, one for motor 1 and one
for motor 2. The communication works using a screened two-wire cable.
For distances see chapter DCSLink wiring
.
M
M
1.
2.
SB_DCF_002_b.ai
DCSLink
SDCS-DSL-H1x
DCF803-0050 / 0060
or
DCF804-0050 / 0060
DCF803-0050 / 0060
or
DCF804-0050 / 0060

ABB DCS880 series Specifications

General

Cooling Method	Air-cooled, liquid-cooled
Control Type	Direct Torque Control (DTC)
Communication Protocols	Ethernet, Modbus RTU, Modbus TCP, PROFIBUS DP, PROFINET, EtherCAT
Protection Class	IP00, IP21, IP54
Safety	STO (Safe Torque Off)
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overtemperature
Ambient Temperature	-20 to +55 °C (derating may apply)
Input Voltage	3-phase, 380-830 V AC
