ABB DCS880 series Hardware Manual

Accessories
161
3ADW000462R0401 DCS880 Hardware manual e d
Optical cables
Different optical cables are available.

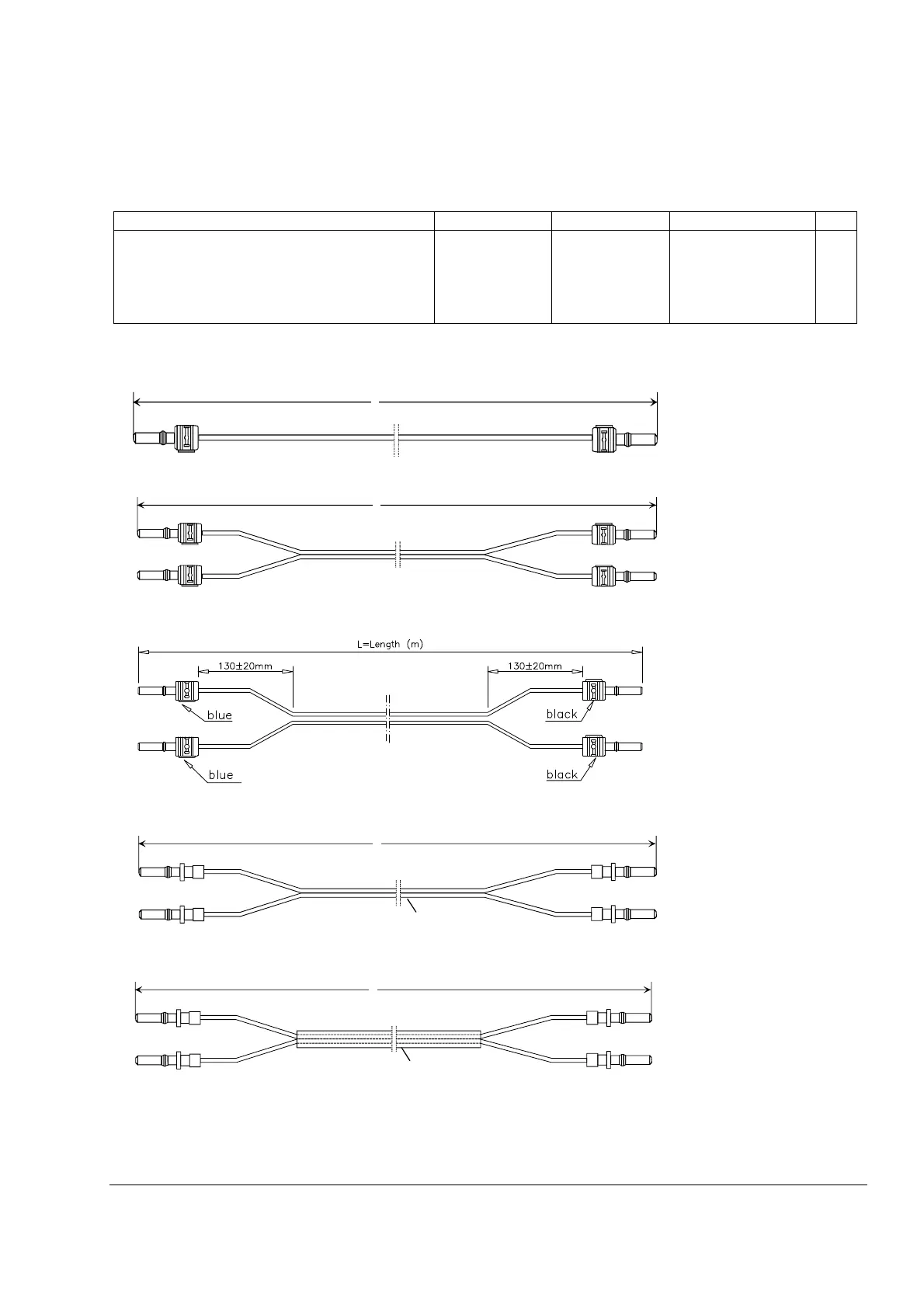

Kind of cable Connector cable length Ident. no. Fig.
Plastic optic fiber single cable plug 0.5 ... 30 m 3ADT693324P000x 1
Plastic optic fiber double cable plug 0.5 ... 30 m 3ADT693318P000x 2
Plastic optic fiber double cable plug 5 m 3ADT693752P0004 3
HCS silica (double) without plastic jacket plug 30 ... 50 m 3ADT693355P00xx 4
HCS silica (double) with plastic jacket plug 50 ... 200 m 3ADT693356P0xxx 5
Figure 1
Figure 2
Figure 3
Figure 4
Figure 5
blue black
L
blue
black
black
blue
L
L
orange
black
orange
black

5 mm
L
blue
red
blue
red

8 mm

ABB DCS880 series Specifications

General

Cooling Method	Air-cooled, liquid-cooled
Control Type	Direct Torque Control (DTC)
Communication Protocols	Ethernet, Modbus RTU, Modbus TCP, PROFIBUS DP, PROFINET, EtherCAT
Protection Class	IP00, IP21, IP54
Safety	STO (Safe Torque Off)
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overtemperature
Ambient Temperature	-20 to +55 °C (derating may apply)
Input Voltage	3-phase, 380-830 V AC
