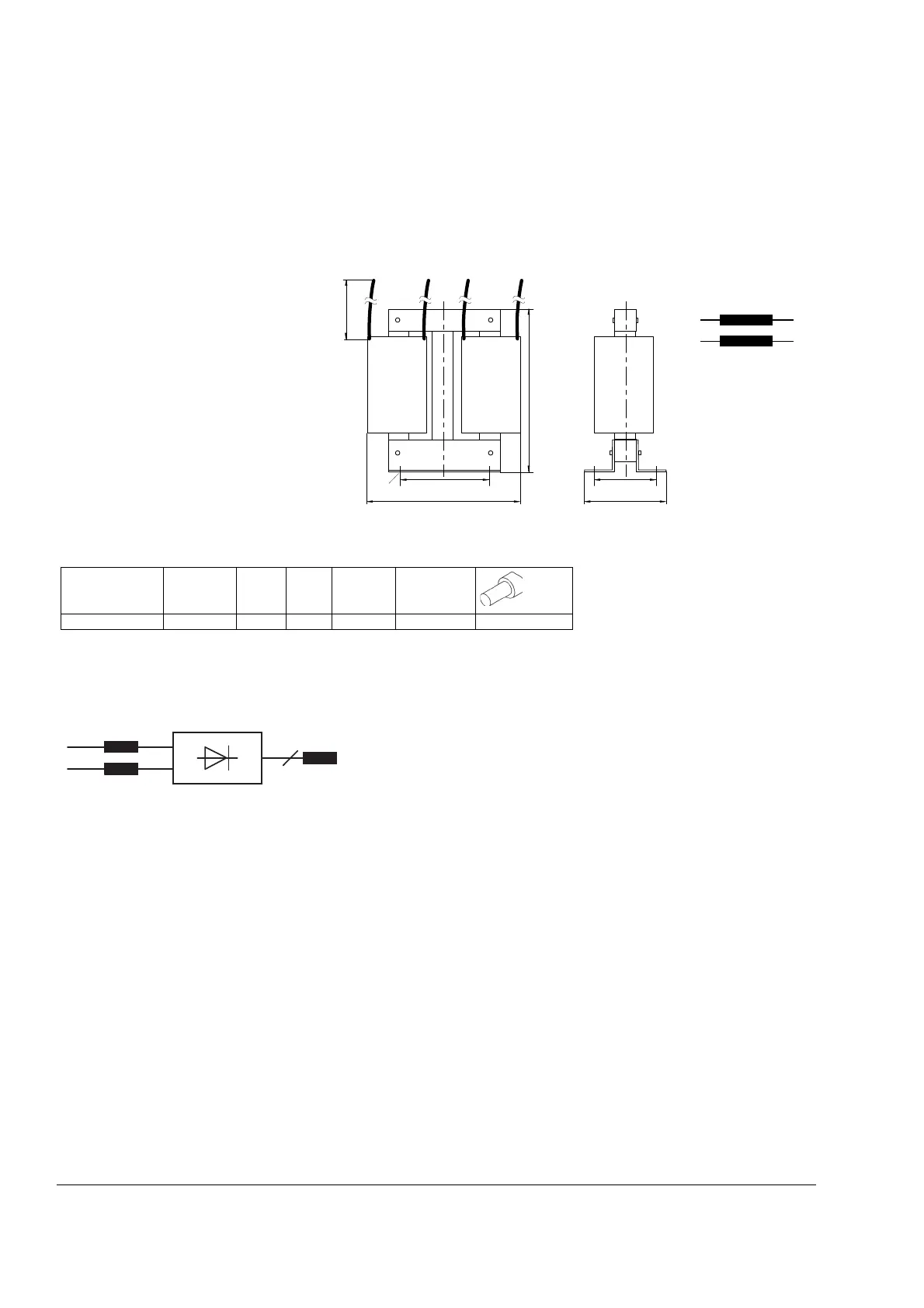

Line reactor (L3)
The ND30 is used for single-phase connection of DCF803-0016, FEX-425-Int and DCF803-0035 up
to a field current of 16 A.
Connection example
Line reactor
(L3)
L3
[H]
IRMS
[A]
IPEAK
[A]
Weight
[kg]
Powerlosses
[W]
ND30 2 * > 500 16 16 1.1 8 2
4 . 5 Ø
2
m a x 7 0
m a x 8 0
3 7
5 2
1 0 0 0
1 3 4
1
3
2
4
5 5
M E _ D R O _ 0 0 9 _ N D 3 0 _ a . d s 4
Input voltage: max. 500 V
Frequency: 50 / 60 Hz
[mm²]

2
2
L3
4
1
3
SB_SIC_004_b.ai

ABB DCS880 series Specifications

General

Cooling Method	Air-cooled, liquid-cooled
Control Type	Direct Torque Control (DTC)
Communication Protocols	Ethernet, Modbus RTU, Modbus TCP, PROFIBUS DP, PROFINET, EtherCAT
Protection Class	IP00, IP21, IP54
Safety	STO (Safe Torque Off)
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overtemperature
Ambient Temperature	-20 to +55 °C (derating may apply)
Input Voltage	3-phase, 380-830 V AC
