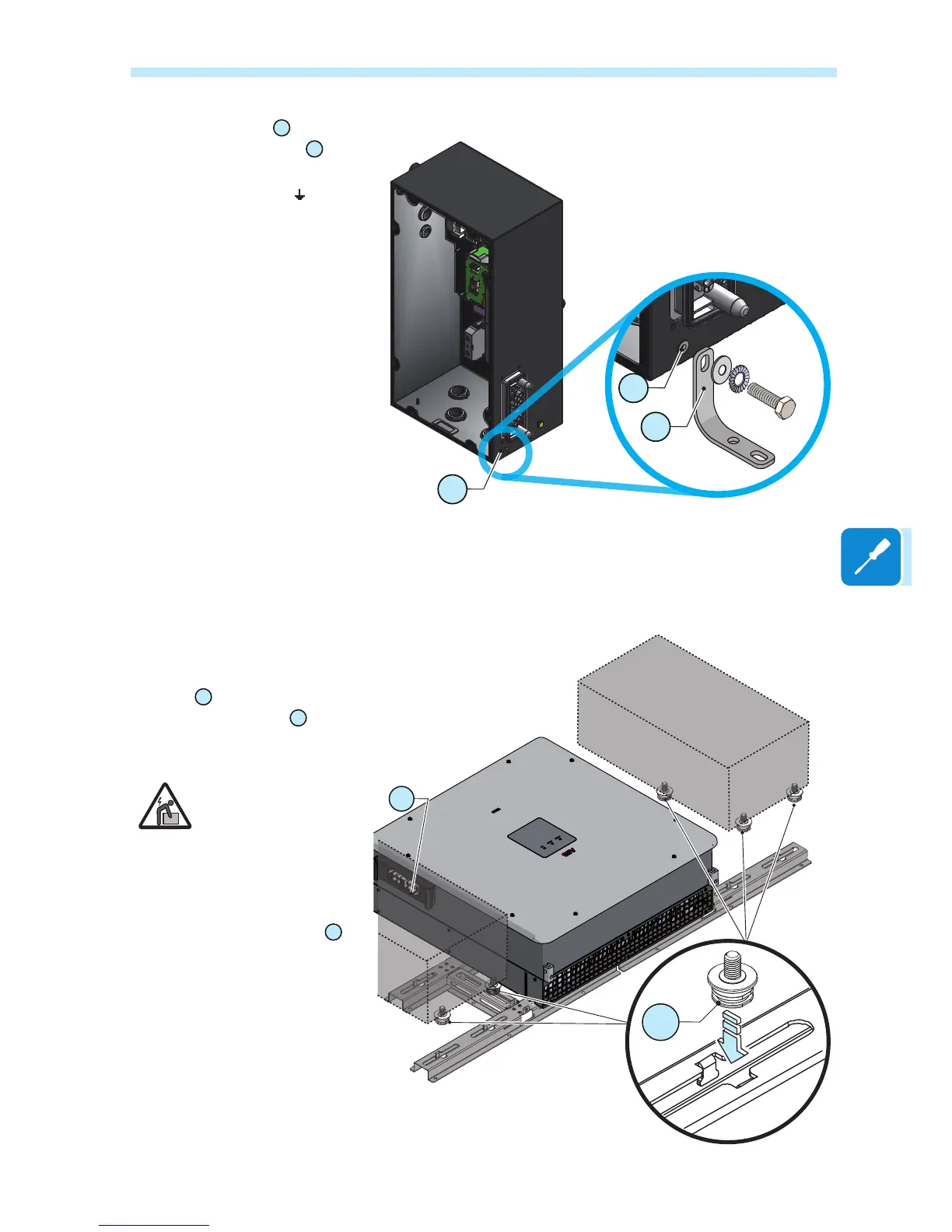

• Install the 2 brackets acting as
an earth connection
32
on the
provided fastening points
37
(one for each wiring box) and
marked with the symbol . On
the gure is shown how to install
the brackets on the wiring box.
The bracket is not symmetrical
and so it must be xed on the
side with the holes facing down.
Follow the order of installation
set out below:
- earth connection bracket
- at washer
- toothed washer
- xing screw with hexagonal
head.
During this phase loosely posi-
tion the screw without tightening
it.
• Mount the wiring boxes onto the
bracket
01
one at a time inser-
ting the two rear pins
27
at the
top into the slots on the bracket.
Risk of injury due to
the heavy weight of
the equipment.
In this condition, the wiring bo-
xes will be detached from the
power module so not to interfere
with the quick-t connectors
23
37
32
37
23
