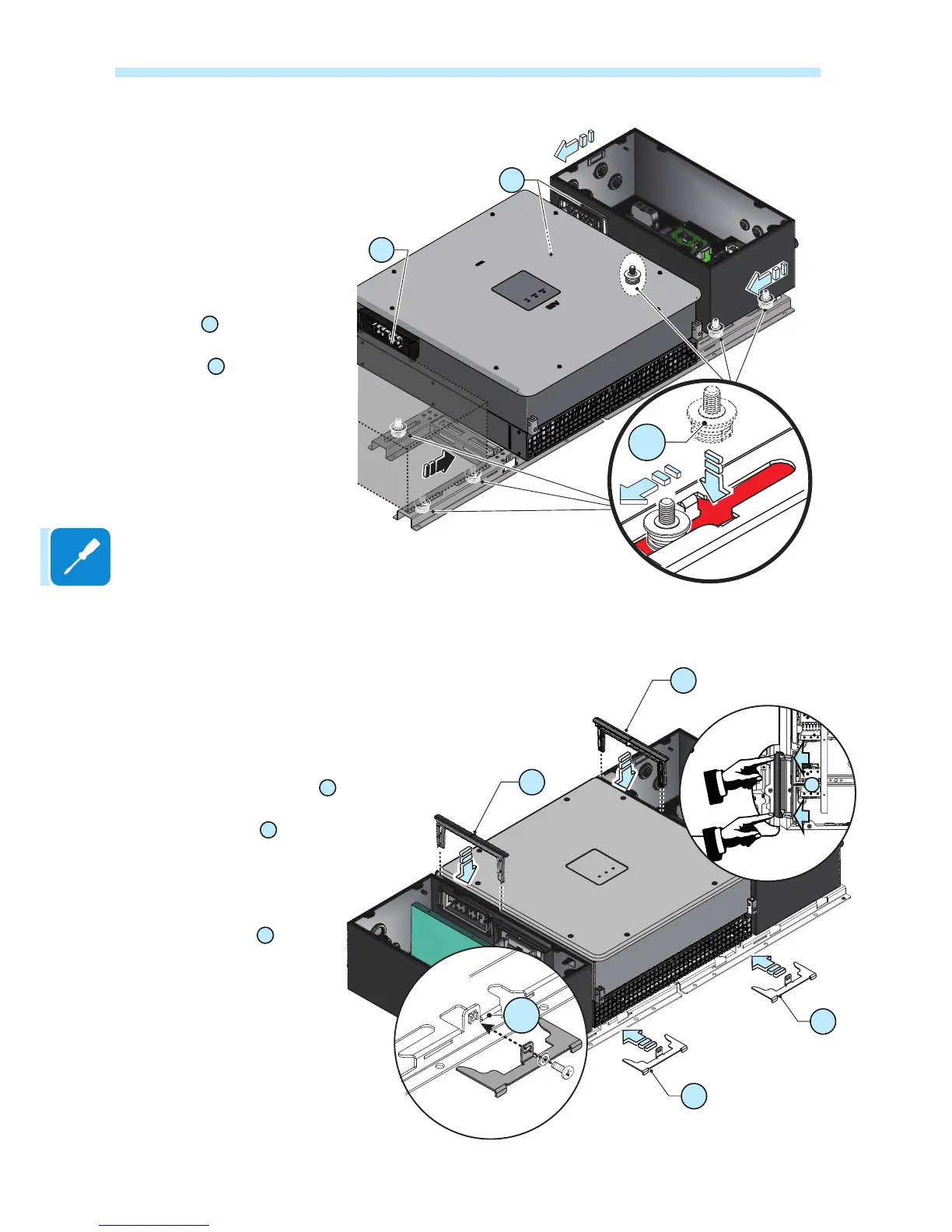

• Couple the wiring boxes to the
power module one at a time, ma-
king them slide horizontally on
the bracket
01
and ensuring that
the quick t connectors are inser-
ted correctly
23
.
• Once this has been completed,
insert the metal locking forks
07
into the designated slots of the
quick-t connectors
23
in order
to secure the wiring boxes to the
power module.
• Install the top stops
28
, inserting
them into the slots and locking the
screws (hex screw M6x16) on the
cage nuts which were previously
tted onto the bracket.
