104 | XIO USER MANUAL | 2106424MNAA

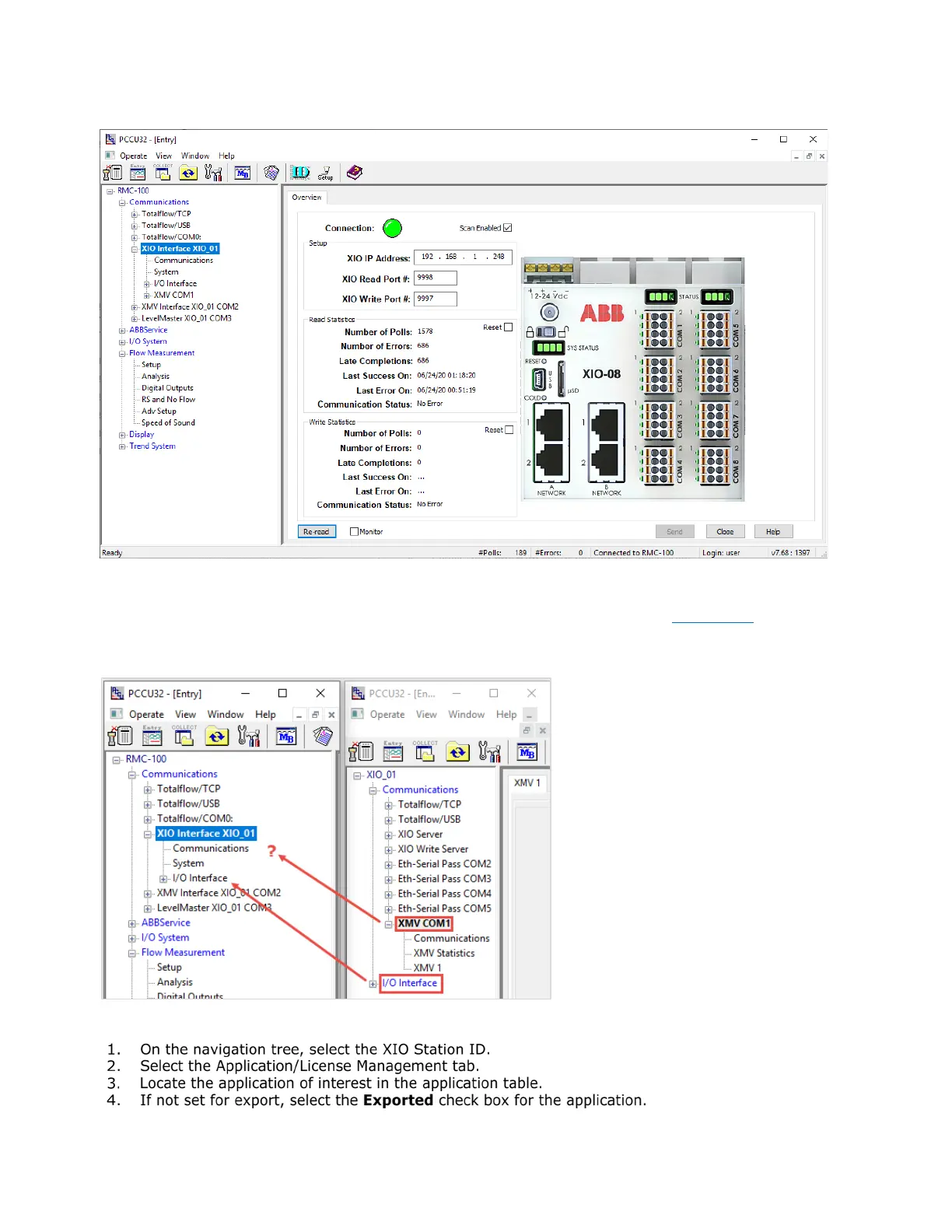

Figure 6-10: XIO Interface overview screen - RMC-XIO connection successfully established
6.2 XIO applications not displaying on the RMC
Non-exported applications may not display under the XIO Interface on the RMC (Figure 6-11). To manage
the remote XIO applications from the RMC, those applications must be exported.
Figure 6-11: Missing remote applications on the RMC XIO Interface
To verify the application export setting:
