Expand the XMV application for the port of interest.
Select the remote multivariable of interest. For example, XMV1 (there may be multiple XMVs
connected to a single COM port).
View the values for DP, SP, and TF. Click Re-read to refresh to the latest values or select
Monitor to keep track of latest values as they change.

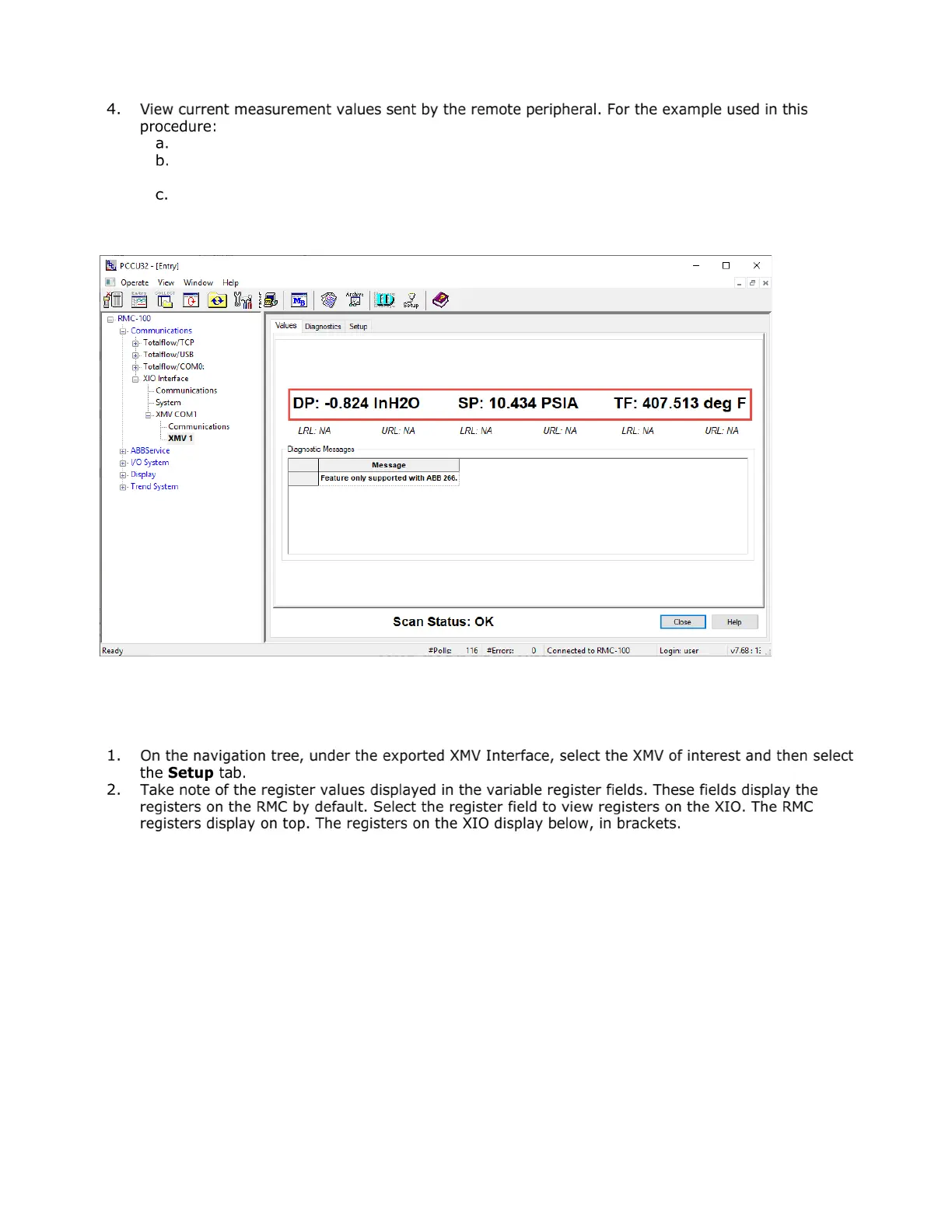

Figure 4-51: Verify RMC is receiving measurement data from remote peripheral
4.7.4 Configure measurement applications to use XIO values
To make data available for applications on the RMC, configure the RMC register numbers assigned to store
the measurement values received from the remote device. For example, configure registers with XMV
values on a measurement tube on the RMC:
