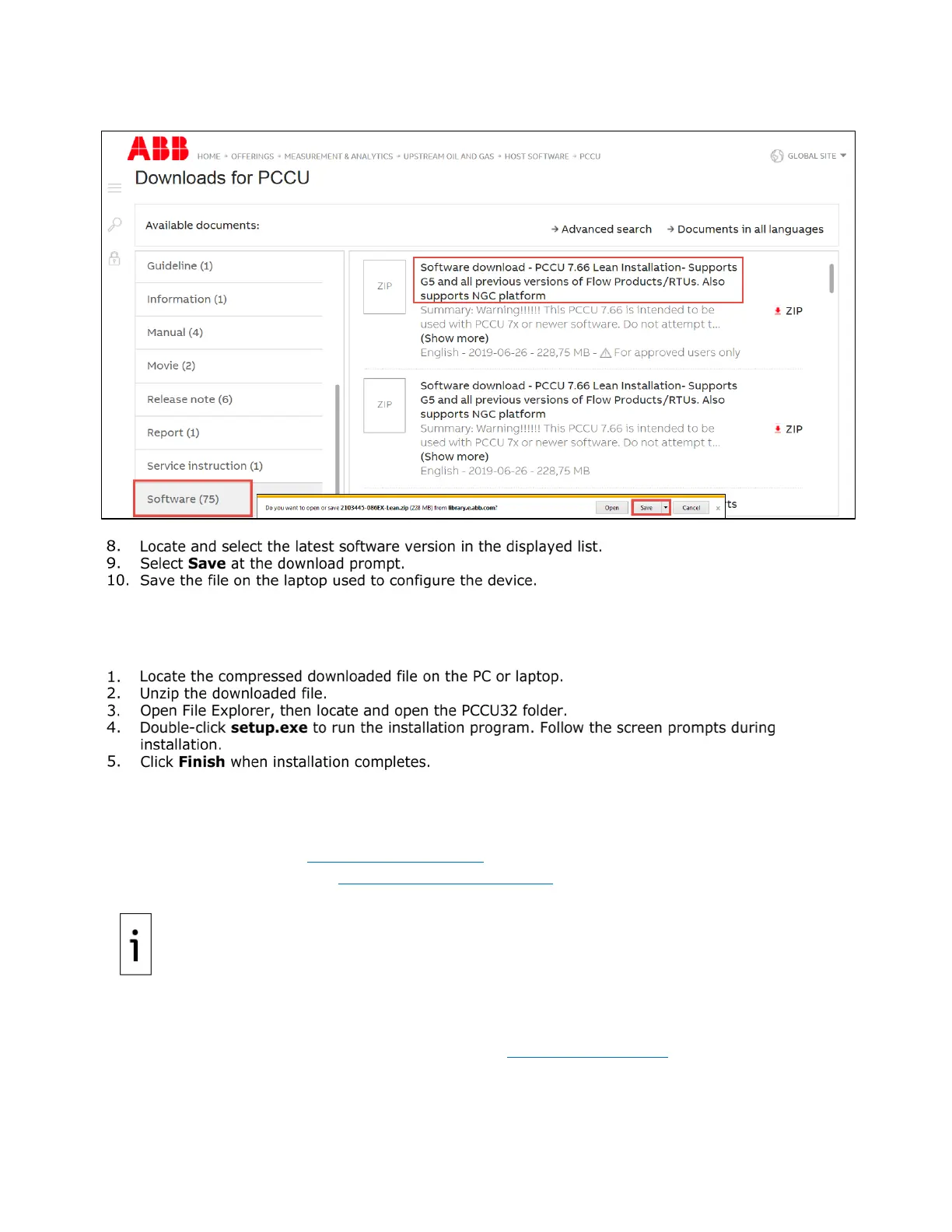

Figure 4-4: PCCU installation software revisions list
4.2 Install PCCU32
PCCU32 software operates in a Windows
®
environment.
To install a PCCU32 installation file downloaded from the ABB website:
4.3 Establish local communication
Connect the laptop to the USB or Ethernet ports to establish initial local communication. These ports are
configured at the factory for local operator access. Configure PCCU to use any of these ports.
– To use USB, see section 4.3.1 Using the USB port
– To use Ethernet, see section 4.3.2 Using the Ethernet ports
IMPORTANT NOTE:
External weatherproof local communication connectors (USB or Ethernet) are
available on
XCORE enclosures, if purchased. Use external ports to connect locally if the XIO is
inside an enclosure. If the XIO is a standalone devi
ce, use the USB or Ethernet ports.
Do not use external enclosure connectors for permanent field connections. These connectors are
only for local access during configuration or maintenance.
4.3.1 Using the USB port
The following instructions apply to USB port connections. Table 4-1: USB cabling provides cabling details
to connect to the USB port.
