34 | XIO USER MANUAL | 2106424MNAA
IMPORTANT NOTE:
The external power supply must meet the specifications in Section 3.1.2
External power supply requirements
.
A
ll wiring must comply with national and local electrical codes and applicable ABB certification
drawings
to maintain system certification.

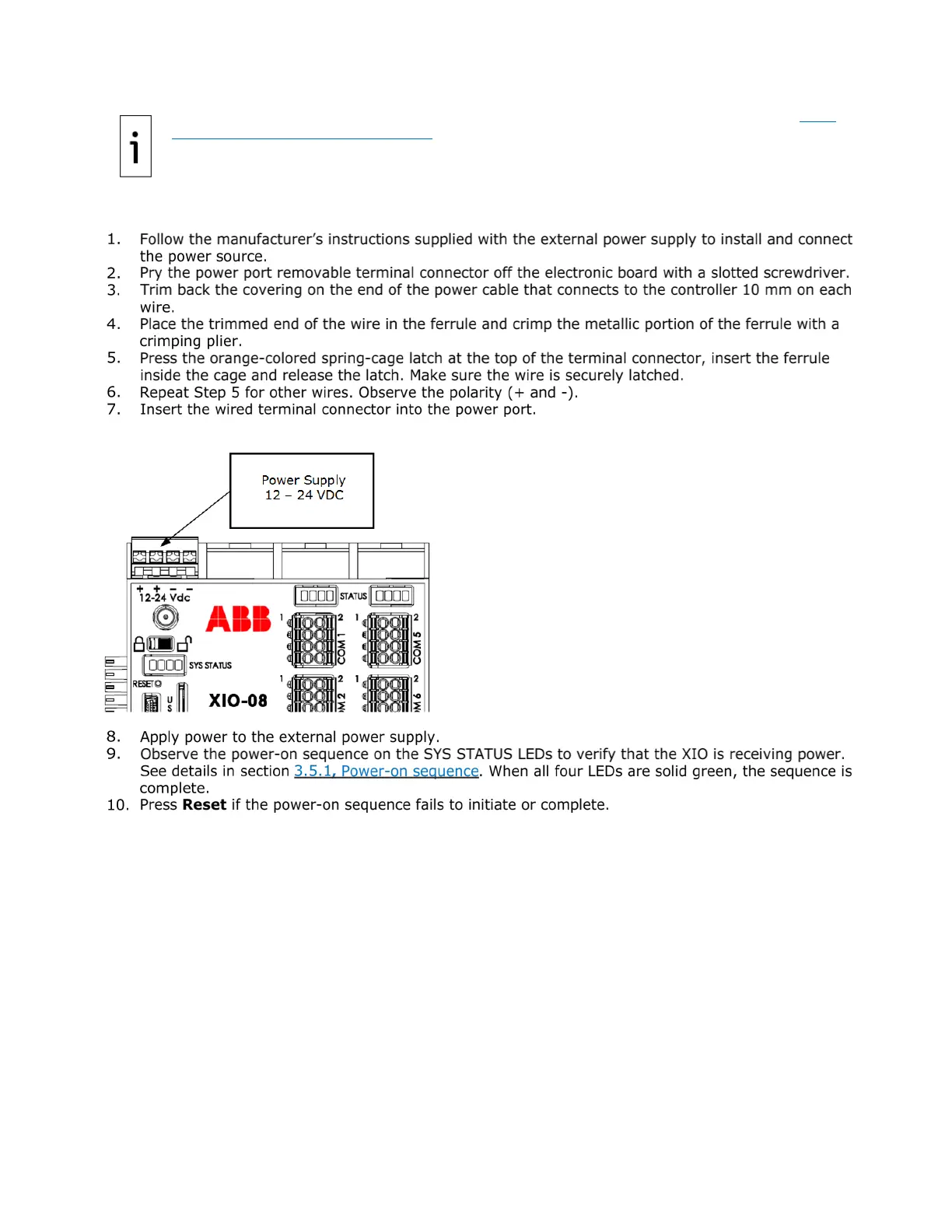

To wire an external power source to the XIO:
Figure 3-7: Connect the external power supply
