XIO USER MANUAL | 2106424MNAA | 93

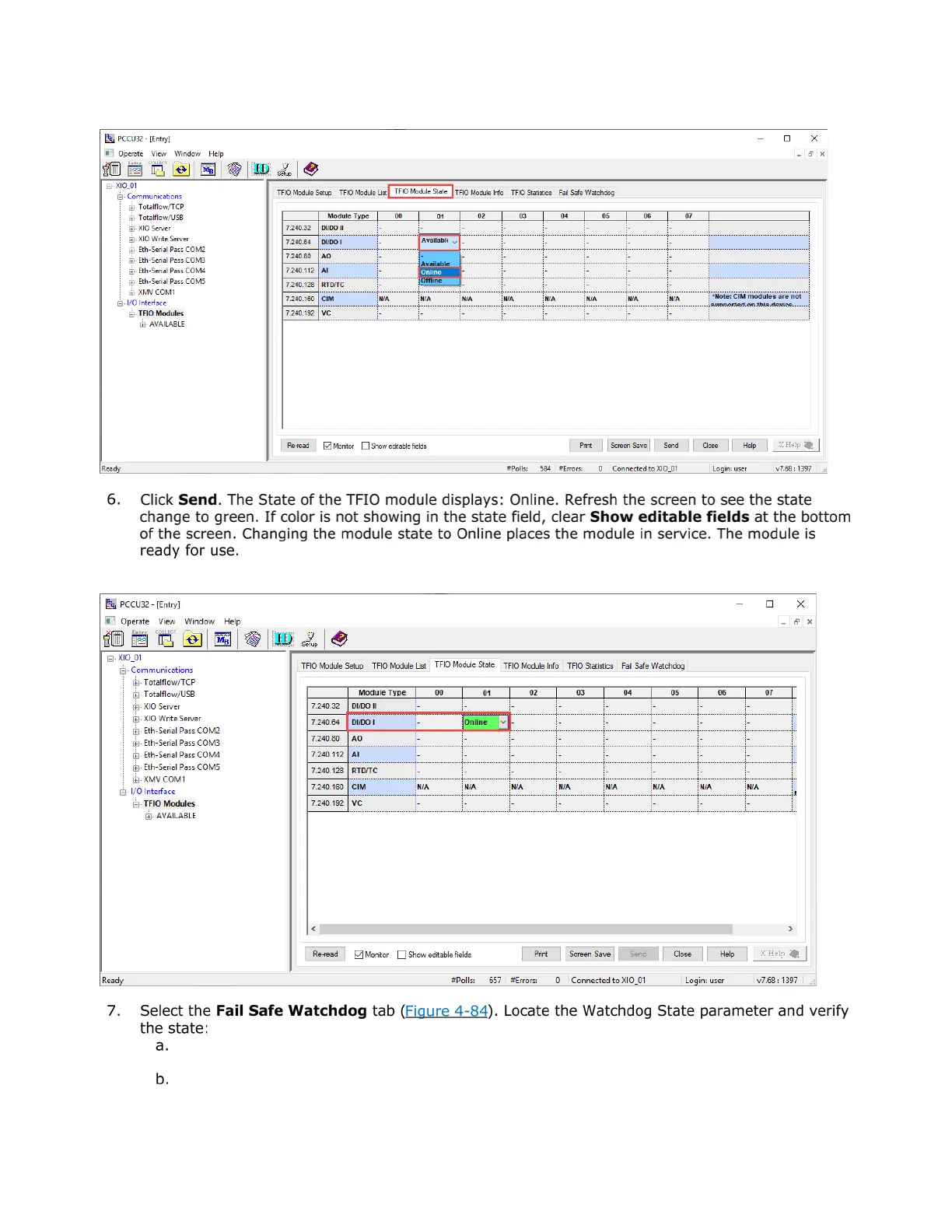

Figure 4-82: TFIO Module State – Select Online mode
Figure 4-83: TFIO Module State – Online mode
If the state displays Normal (green), the XIO is successfully communicating with the remote
controller and the TFIO is ready for use (successful network connectivity).
If the state displays Alarm (red), the XIO is not successfully communicating with the remote
controller or needs a reset.
