ABB ZX2 - Handling by Fork Lift Truck

12 ZX2 GAS-INSULATED MEDIUM VOLTAGE SWITCHGEAR
2.4.1. Handling by fork lift truck
The panels can be handled upright on a pallet or
by fork lift truck without a pallet. Use lifting
sections when handling a panel without a pallet.
Handling with a pallet
Hazard warning
The pallet must rest fully on the forks of
the truck or jack. The high centre of
gravity means there is a high risk of
tipping. Avoid jerky motions.
—

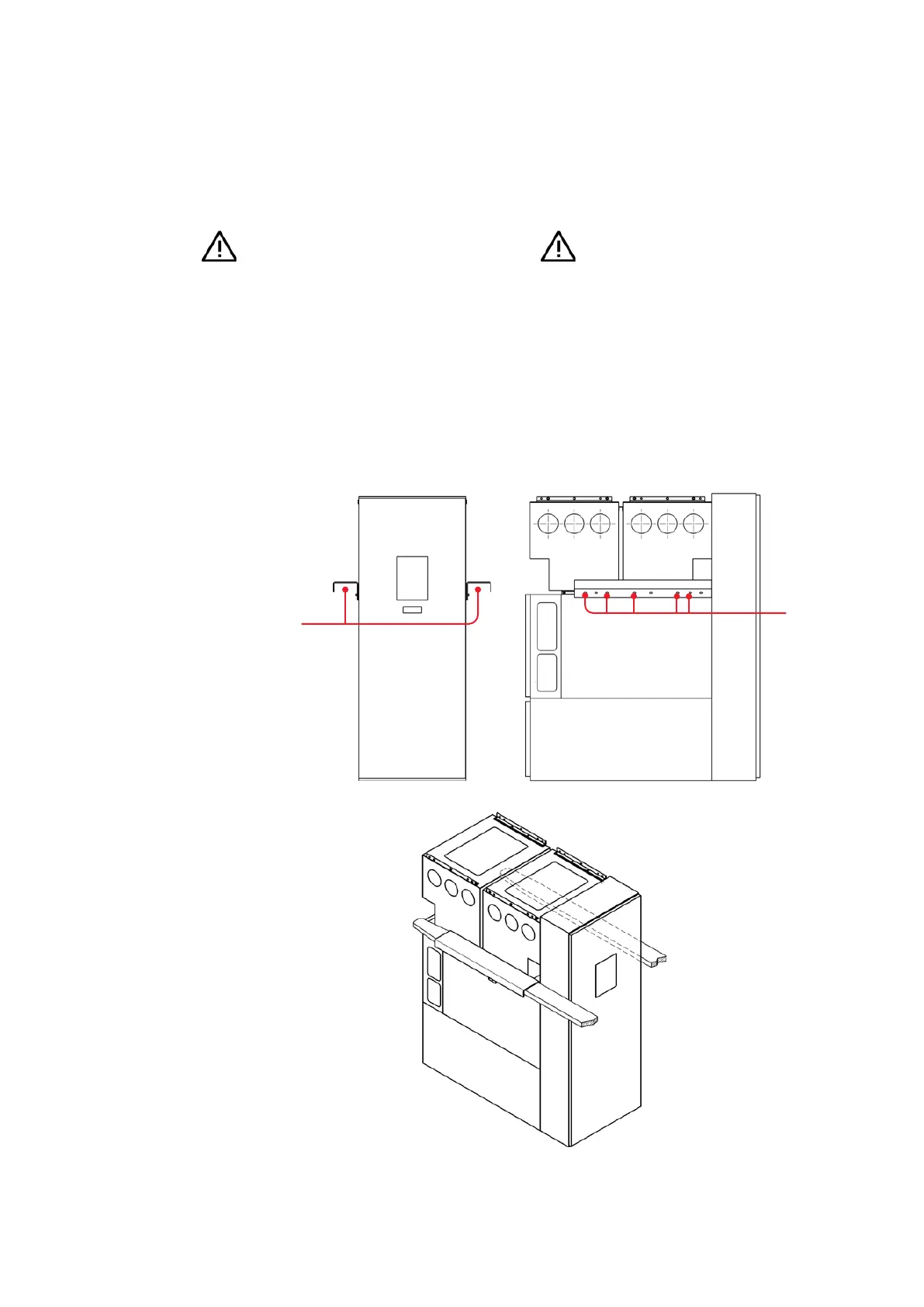

Fig. 2.4.1.1:
cheese head
screws
M 8 x 35
Lifting sections
—
Fig. 2.4.1.2:
—
Fig. 2.4.1.1:
Preparation of a
panel for handling
by fork lift truck
—
Fig. 2.4.1.2:
Handling by fork
lift truck
Handling without a pallet
Fasten one lifting section to each side of the
panel. Use five M 8 x 35 cheese head screws with
dished washers for each lifting section. See
Fig. 2.4.1.1 for the position of the fastening
points.
Hazard warning
The full length of the lifting sections
must rest on the forks of the truck (see

The high centre of gravity means there is
a high risk of tipping. Avoid jerky
motions.
