ABB ZX2 - Switch Position Disconnect Switch CLOSED

84 ZX2 GAS-INSULATED MEDIUM VOLTAGE SWITCHGEAR
5.6.3. Switch position disconnect

The red mark on the moving contact must be
flush against the face of the disconnect switch
contact (moving contact bridges central part of
disconnect switch and disconnect switch contact
- see fig. 5.6.3.1).
—

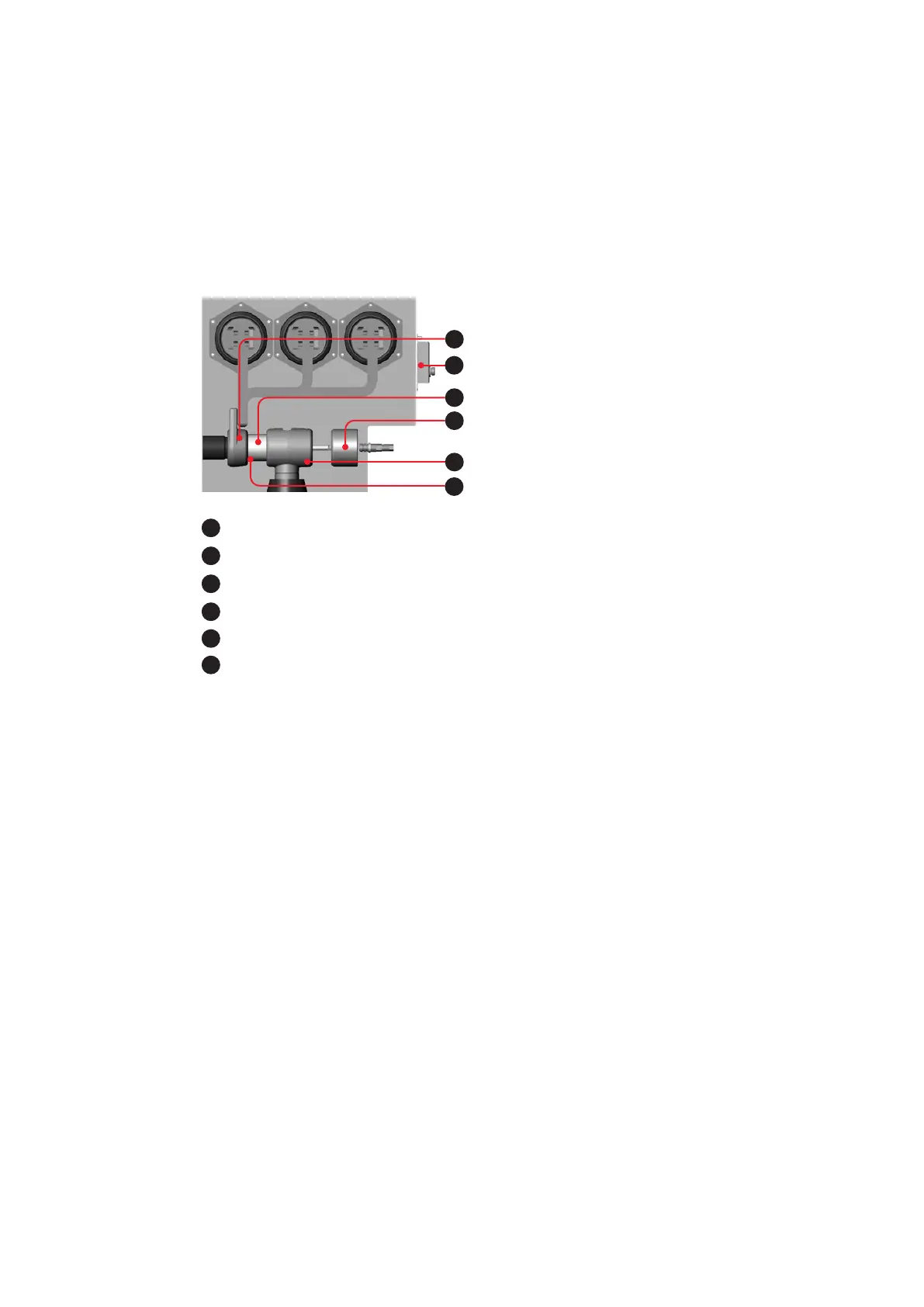

Fig. 5.6.3.1:
Switch position gdis-
connect switch CLOSED
2
1
Disconnect switch contact
2
View port
3
Moving contact
4
Grounding switch contact
5
Slot marked red
6
Central part of disconnect switch
1
3
4
5
6
