3. INSTALLATION OF THE SWITCHGEAR AT SITE 23
3.2.2. Special considerations with the raised
false floor
Important note

with voltage transformers in the cable
termination compartment must be fitted
with an additional supporting beam for
the voltage transformers.
—

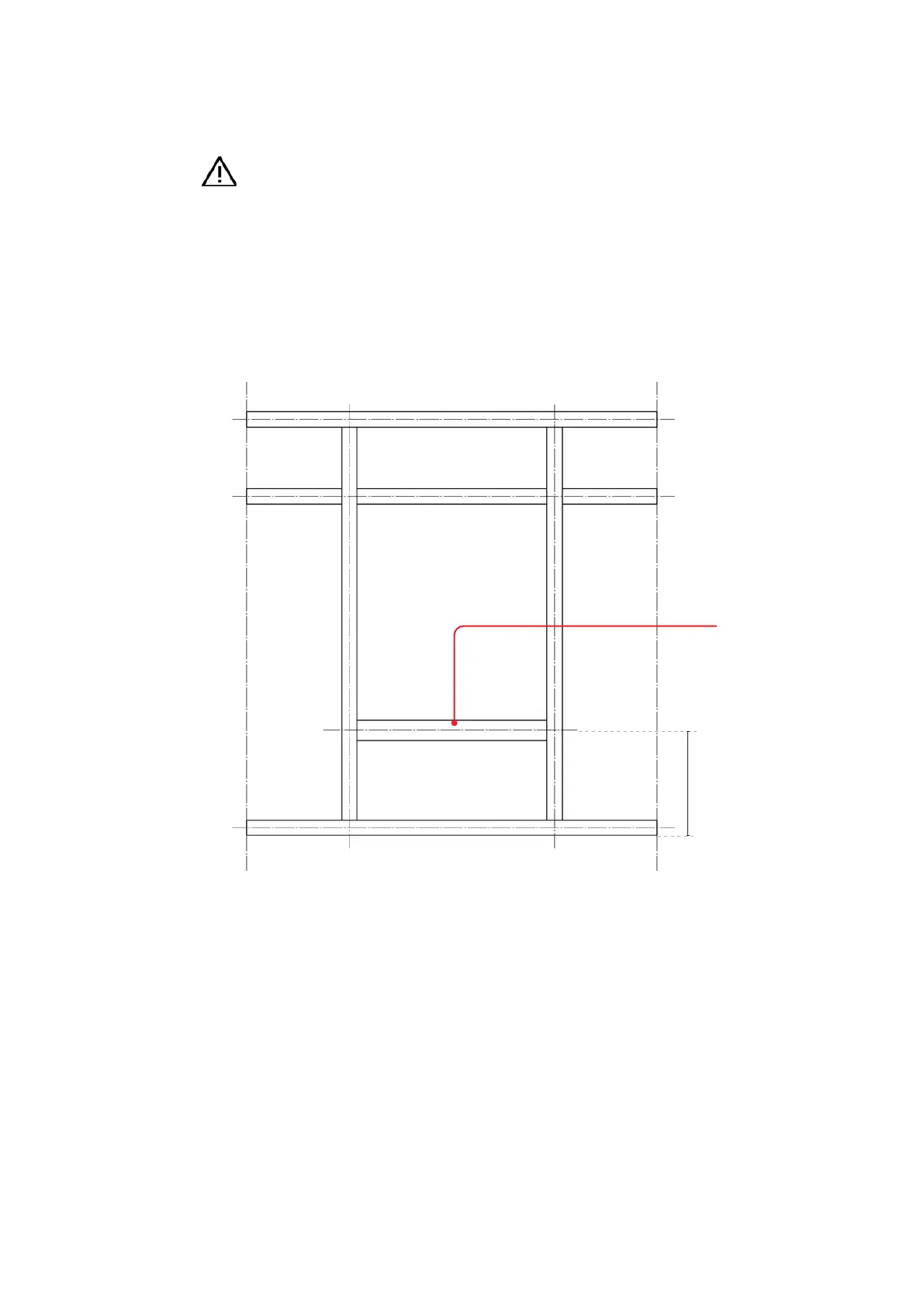

Fig.3.2.2.1:
Plan view of a
supporting beam for
the switchgear when a
raised false floor is used:
Additional supporting
beam for a panel with
voltage transformers in
the cable termination
compartment.
Front of switchgear

16.5
Additional
supporting beam
