2. DESPATCH AND STORAGE 13
—

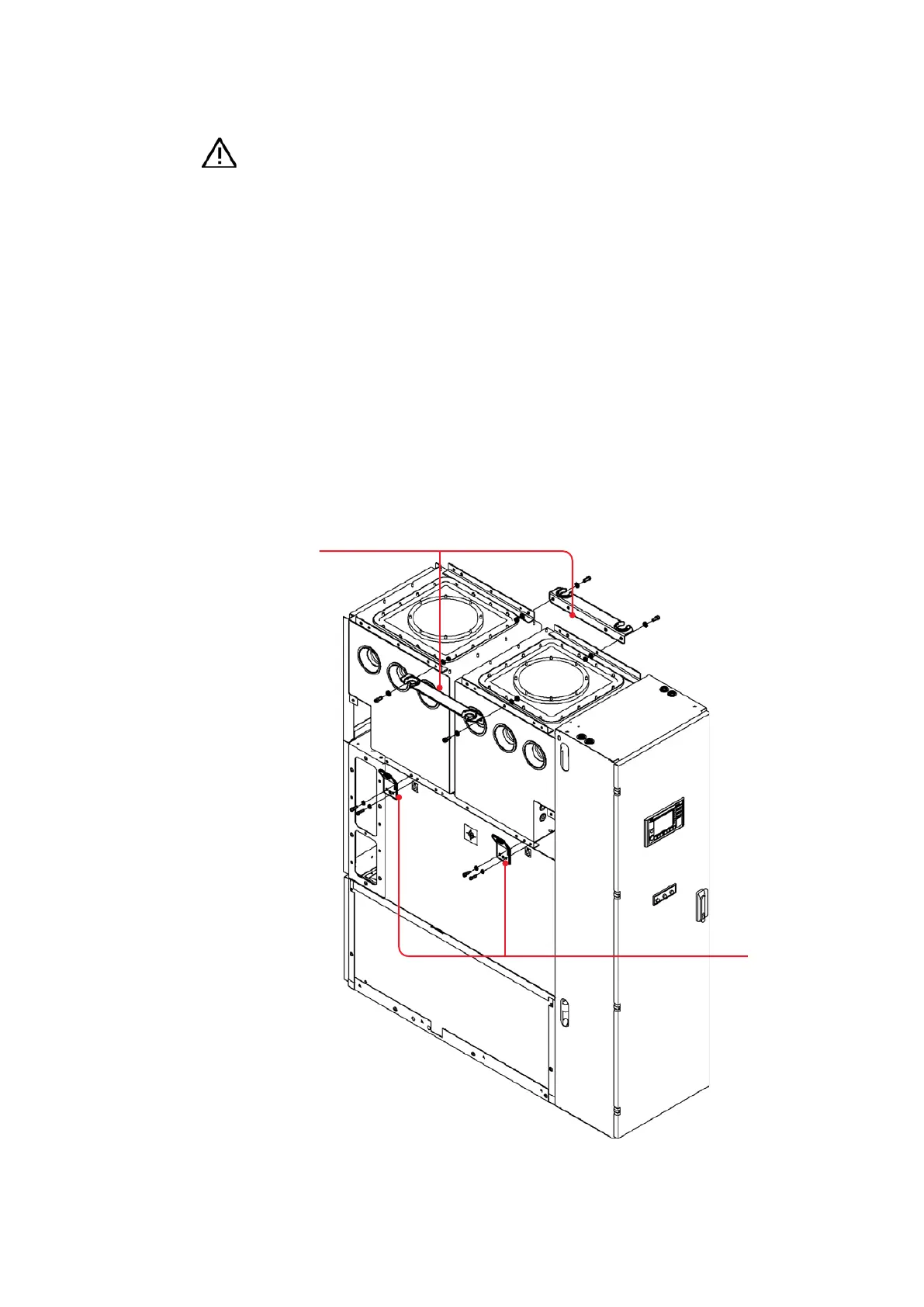

Fig. 2.4.3.1 a:
Lifting lugs and
rope guides for
handling by crane
2.4.3. Handling by crane
• Fasten one rope guide to the top brackets of
the busbar compartments at each of the left
and right using two M 10 x 25 cheese head
screws with nuts and dished washers as shown
in fig. 2.4.3.1 a.
• Fasten two lifting lugs to the sections between
the circuit-breaker compartment and busbar
compartment on each of the left and right, us-
ing two M 8 x 35 cheese head screws with
dished washers as shown in fig. 2.4.3.1 a.
• Fasten lifting ropes with a sufficient capacity
(see section 10., Technical data, for panel
weights) and sufficient length as specified in
fig. 2.4.3.2 b to the lifting lugs using shackles.
Thread the lifting ropes through the cut-outs in
the rope guides. The lifting ropes and shackles
are not included in the ABB scope of supply.
Lifting lugs
(2 x left as shown,
2.4.2. Handling by trolley jack
Hazard warning
The panel must be standing on a pallet.
The pallet must rest fully on the forks of
the truck or jack. The high centre of
gravity means there is a high risk of
tipping. Avoid jerky motions.
