3. INSTALLATION OF THE SWITCHGEAR AT SITE 41
Metering 3 Metering 3
3.3.6. Installation of the plenums and end covers
Plenums and the end covers are to be installed in
accordance with the assembly drawings supplied
with the panels.
3.3.7. Handling of voltage transformers
As a rule, voltage transformers for feeder
measurement (transformers of metering 1
fig. 3.3.7.1) can be supplied fitted and ready for
operation or in individual cases, voltage
transformers may also be supplied loose.
These voltage transformers must be dismantled
prior to installation of the cables and re-installed
after high voltage testing of the switchgear
system.
Voltage transformers for integrated busbar
measurement (transformers of metering 2 and 3
in fig. 3.3.7.1) are supplied loose and have to be
installed at site after high voltage testing.
Important note
The weight of a voltage transformer can
be over 67 lbs. Use suitable lifting gear
voltage transformers for integrated
We recommend having installation
performed by two fitters. Observe the
relevant accident prevention regulations
in the country of installation.
—

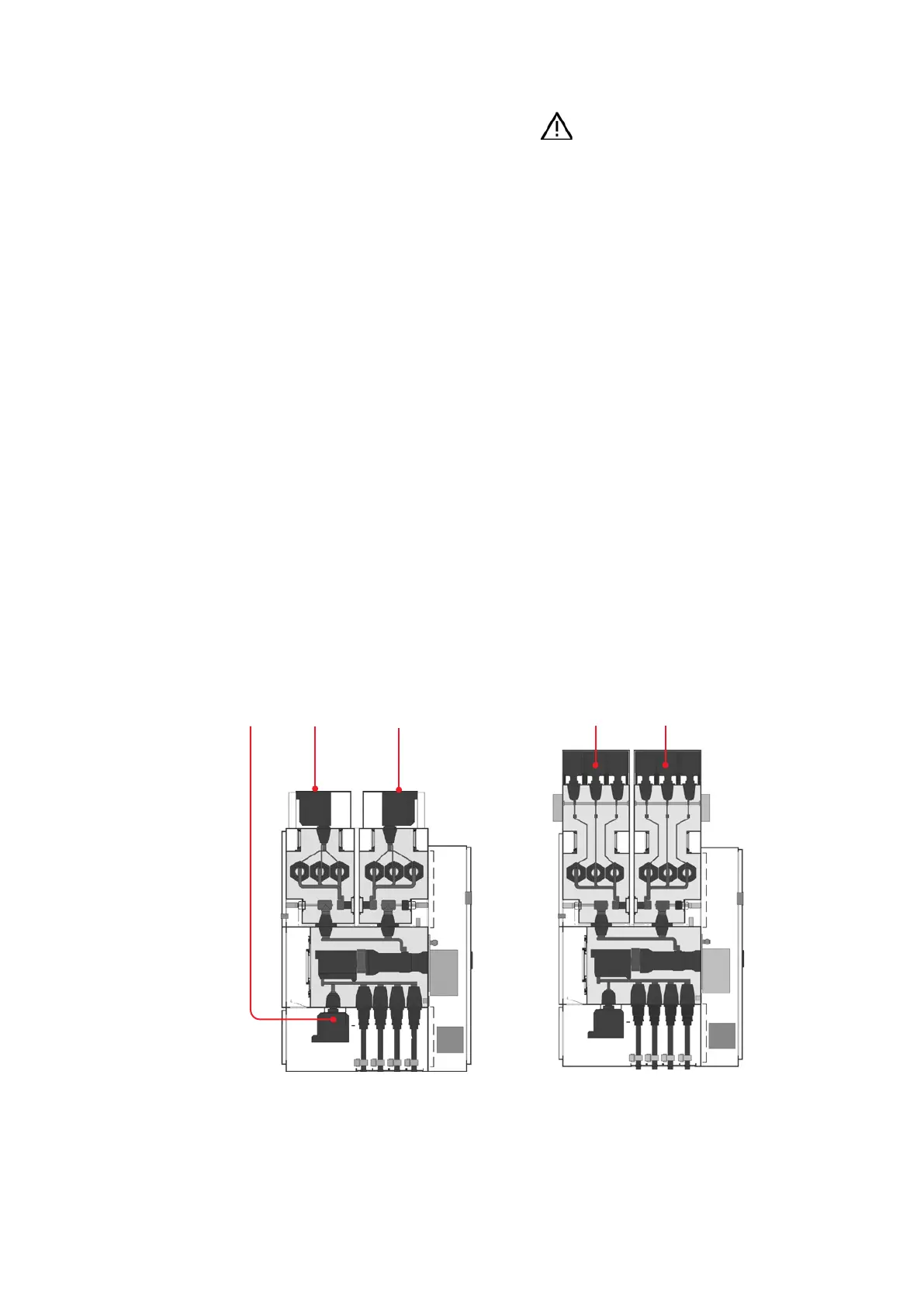

Fig. 3.3.7.1:
Installation positions of
voltage transformers
Metering 2Metering 1 Metering 2
