MC81F4204
10 April 24, 2012 Ver.1.41
1.3 Development Tools
The MC81F4204 is supported by a full-featured macro assembler, C-Compiler, an in-circuit emulator
CHOICE-Dr.
TM
, FALSH programmers and ISP tools. There are two different type of programmers
such as single type and gang type. For more detail, Macro assembler operates under the MS-
Windows 95 and up versioned Windows OS. And HMS800C compiler only operates under the MS-
Windows 2000 and up versioned Windows OS.
Please contact sales part of ABOV semiconductor. And you can see more information at
(
http://www.abov.co.kr )

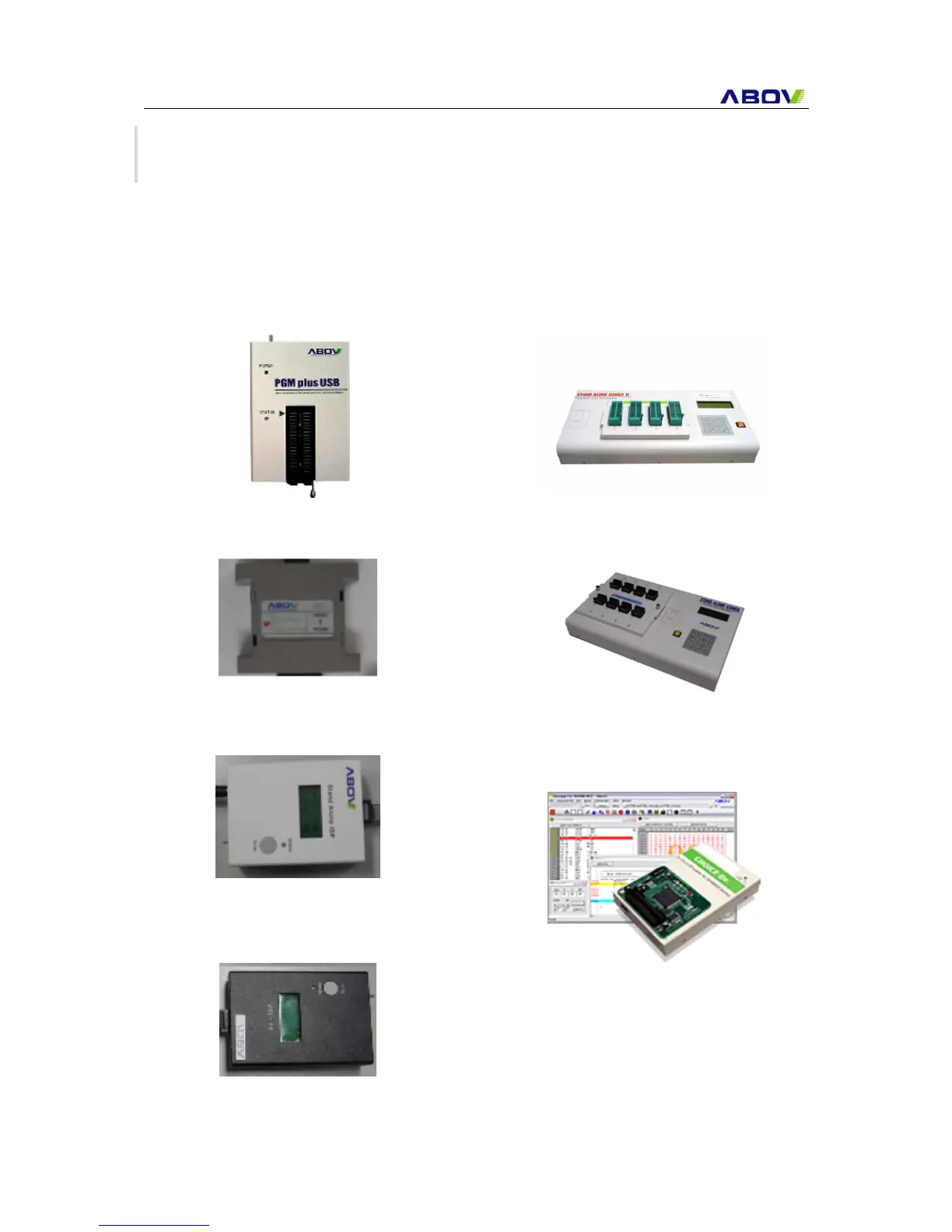

Figure 1-1 PGMplusUSB ( Single Writer )
Figure 1-2 SIO ISP ( In System
Programmer )
Figure 1-3 StandAlone ISP
(VDD power is not supplied)
Figure 1-4 Ez-ISP
(VDD supplied Standalone type ISP)
Figure 1-5 StandAlone Gang4
( for Mass Production )
Figure 1-6 StandAlone Gang8
( for Mass Production )
Figure 1-7 Choice-Dr ( Emulator )
