MC81F4x16
38 April 24, 2012 Ver.1.41
7.16 Typical Characteristics
These graphs and tables provided in this section are for design guidance only and are not tested or
guaranteed. In some graphs or tables the data presented are outside specified operating range (e.g.
outside specified VDD range). This is for information only and devices are guaranteed to operate
properly only within the specified range.
The data presented in this section is a statistical summary of data collected on units from different lots
over a period of time. “Typical” represents the mean of the distribution while “max” or “min” represents
(mean + 3σ) and (mean − 3σ) respectively where σ is standard deviation.

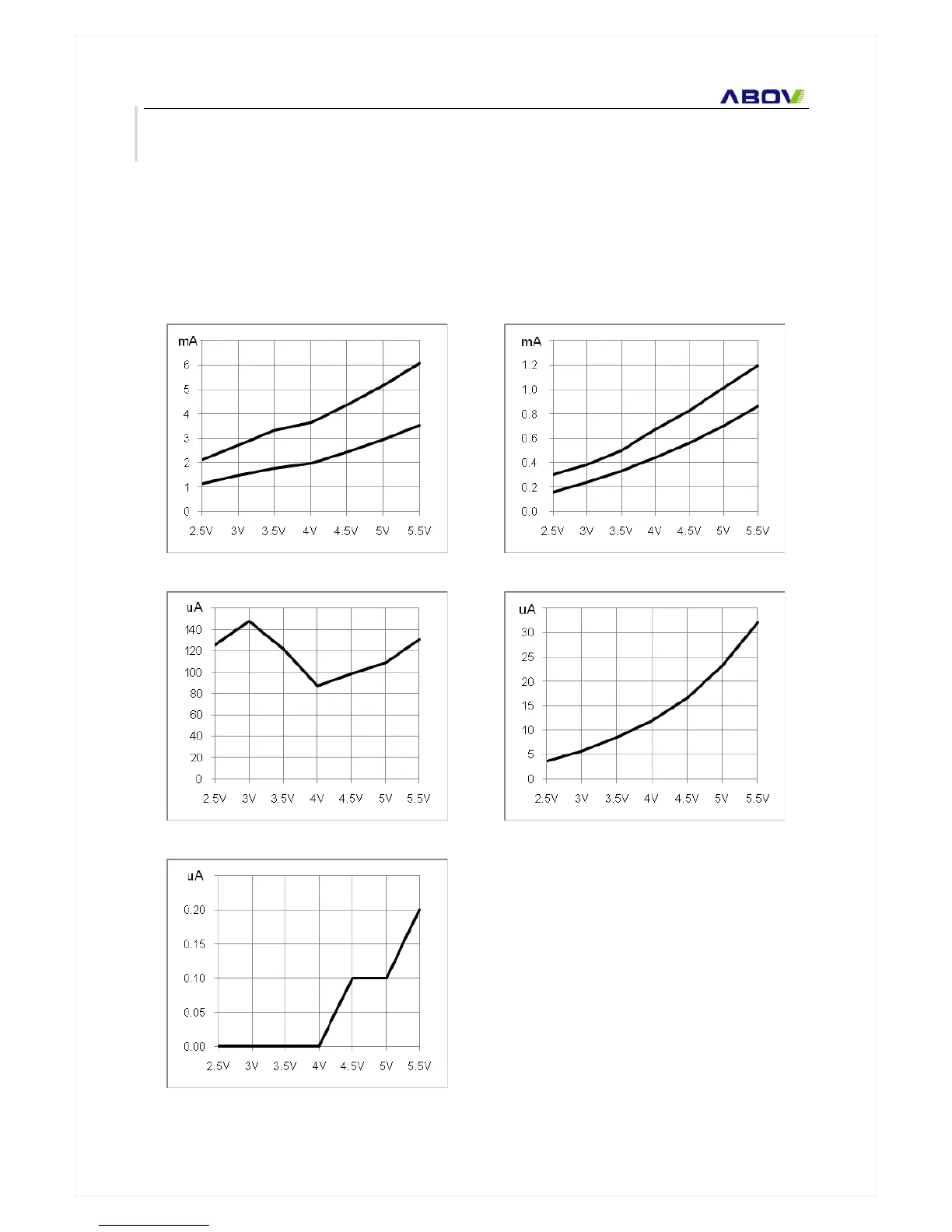

Figure 7-11 I
DD
– V
DD
in Normal Mode
Figure 7-12 I
SLEEP
– V
DD
in Sleep Mode
Figure 7-13 I
DD2
– V
DD
in Sub Active Mode
Figure 7-14 I
SLEEP2
– V
DD
with Sub Clock
Figure 7-15 I
STOP
– V
DD
in STOP Mode
