ABOV SEMICONDUCTOR MC81F4204 - Main Clock Oscillator Characteristics

MC81F4x16
34 April 24, 2012 Ver.1.41

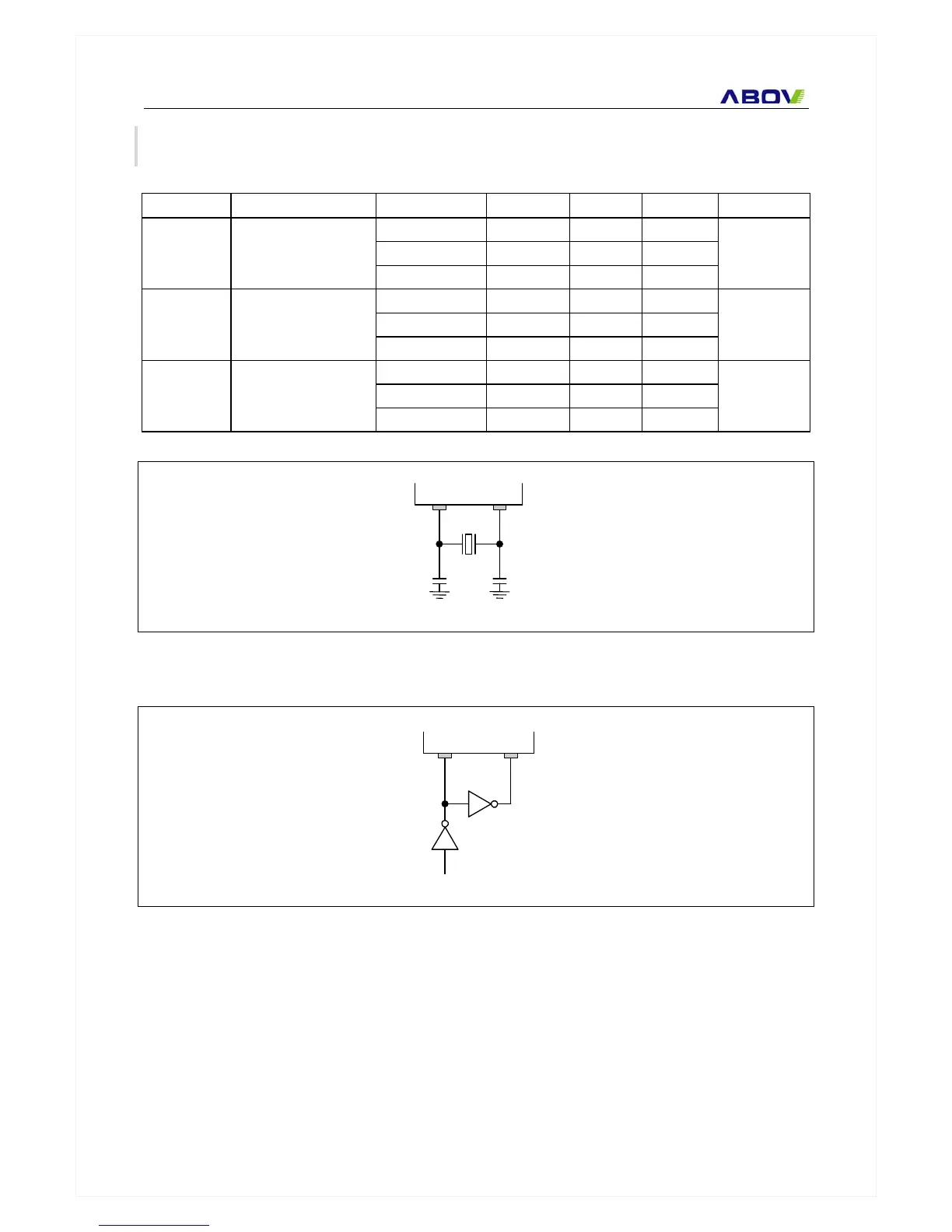

7.11 Main clock Oscillator Characteristics
(T
A
= - 40
°
C to + 85
°
C, V
DD
= 2.2 V to 5.5 V)
Oscillator Parameter Conditions Min Typ. Max Units
2.2 V – 5.5 V 1.0 – 4.2
2.7 V – 5.5 V 1.0 – 8.0
Crystal
Main oscillation
frequency
4.0 V – 5.5 V 1.0 – 12.0
MHz
2.2 V – 5.5 V 1.0 – 4.2
2.7 V – 5.5 V 1.0 – 8.0
Ceramic
Oscillator
Main oscillation
frequency
4.0 V – 5.5 V 1.0 – 12.0
MHz
2.2 V – 5.5 V 1.0 – 4.2
2.7 V – 5.5 V 1.0 – 8.0
External
Clock
X
IN
input frequency
4.0 V – 5.5 V 1.0 – 12.0
MHz
C1
C2
X IN X OUT
X IN X OUT
Figure 7-6 Crystal/Ceramic Oscillator
Figure 7-7 External Clock
