ABOV SEMICONDUCTOR MC81F4204 - Data Retention Voltage in Stop Mode

MC81F4204
32 April 24, 2012 Ver.1.41
7.8 Data Retention Voltage in Stop Mode
(T
A
= - 40
°
C to + 85
°
C, V
DD
= 2.2 V to 5.5 V)
Parameter Symbol Conditions Min Typ Max Units
Data retention supply
voltage
V
DDDR
– 2.2 – 5.5 V
Data retention supply
current
I
DDDR
V
DDDR
= 2.2V
(T
A
= 25
°
C), Stop mode
– – 1 uA

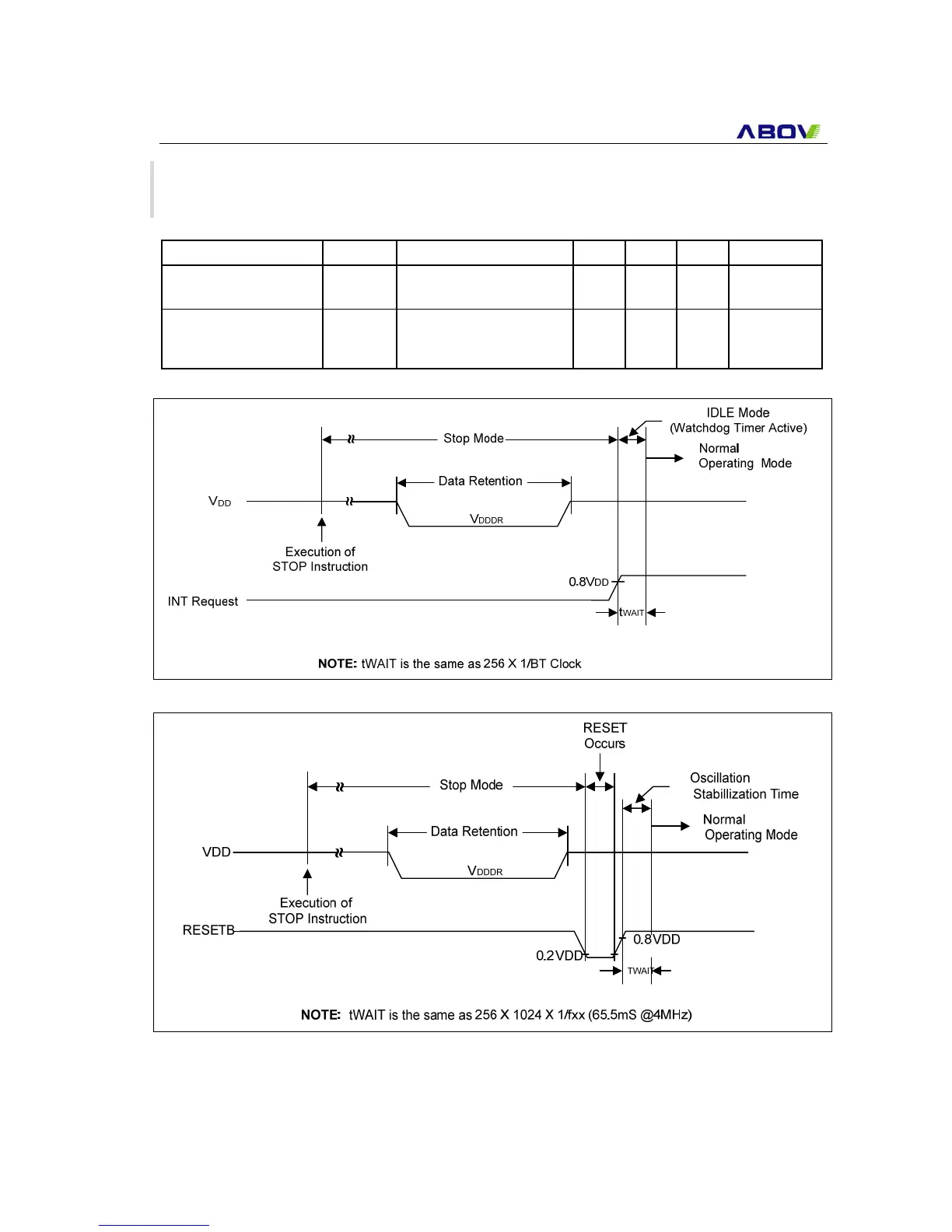

Figure 7-4 Stop Mode Release Timing When Initiated by an Interrupt
Figure 7-5 Stop Mode Release Timing When Initiated by RESETB
