MC81F4204
April 24, 2012 Ver.1.41 127
Note :
After SLEEP mode, at least one or more NOP instruction for data bus pre-charge time
should be written.
LDM SSCR,#0FH
NOP ;for data bus pre-charge time
NOP ;for data bus pre-charge time

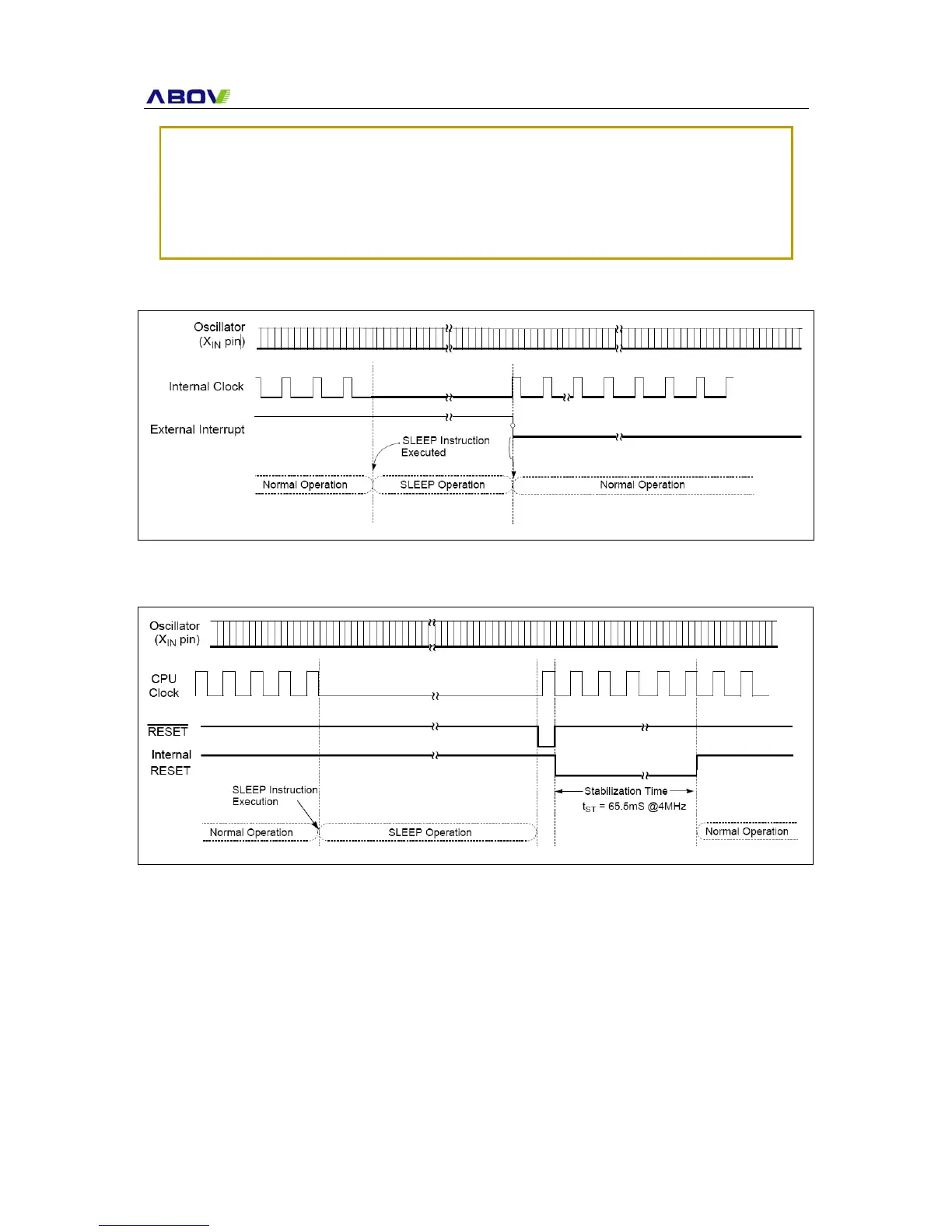

Figure 23-1 SLEEP Mode Release Timing by External Interrupt
Figure 23-2 Timing of SLEEP Mode Release by Reset
