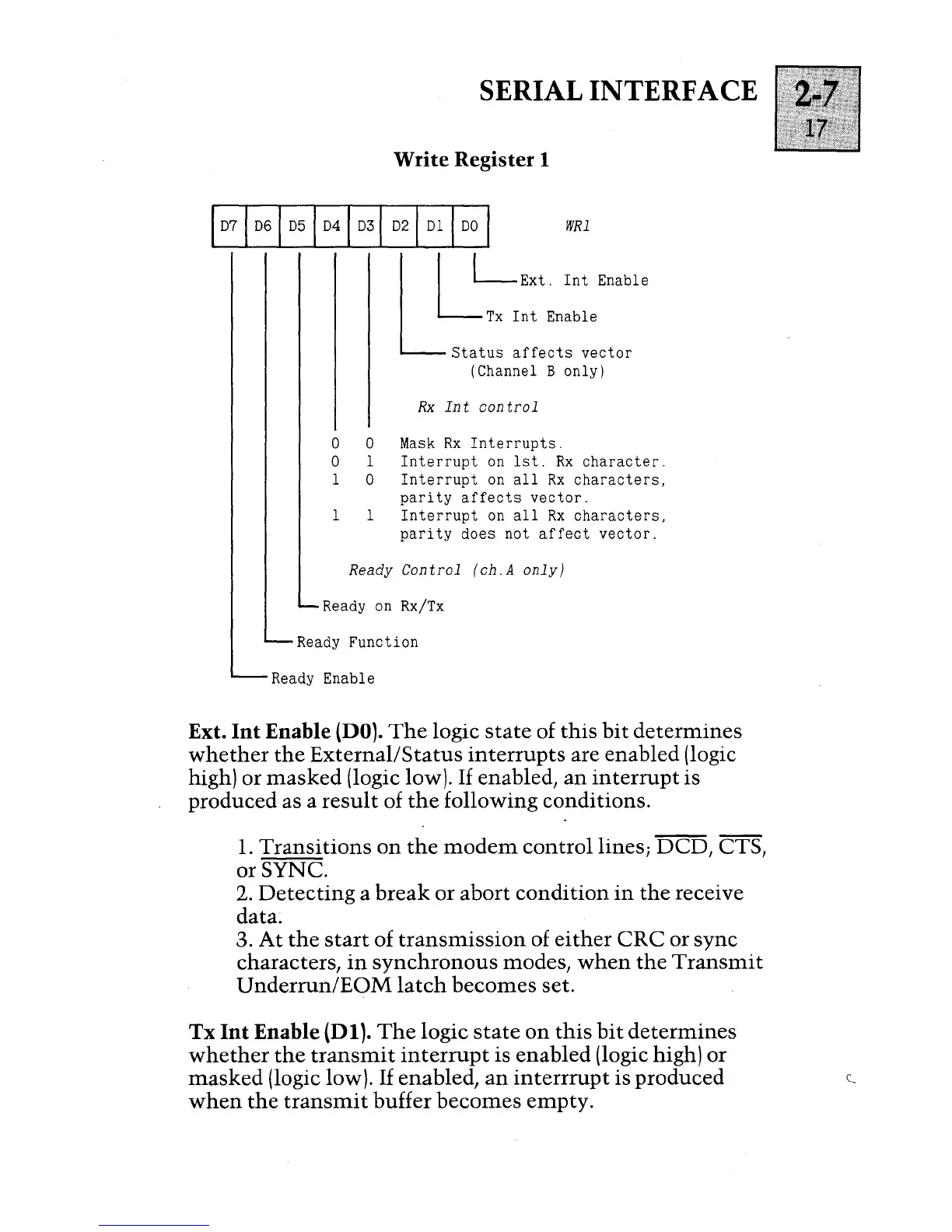

SERIAL INTERFACE
Write Register 1
I
07
1
06
1
05
1
04
1
03
1
02
1 01 1 00 I
WRl
~
I
LEXt.
Int
Enable
L
TX
Int
Enable
Status
affects
vector
(Channel B only)
Rx
In t
can
trol
o 0
Mask
Rx
Interrupts.
o 1
Interrupt
on
1st.
Rx
character.
I 0
Interrupt
on
all
Rx
characters,
parity
affects
vector.
1 1
Interrupt
on
all
Rx
characters,
parity
does not
affect
vector.
Ready Control (ch.A only)
Ready
on
Rx/Tx
Ready
Function
Ready
Enable
Ext. Int Enable
{DO}.
The
logic
state
of
this
bit
determines
whether
the
External/Status
interrupts
are
enabled
(logic
high)
or
masked
(logic low).
If
enabled,
an
interrupt
is
produced
as a
result
of
the
following
conditions.
1.
Transitions
on
the
modem
control
lines;
DCD,
CTS,
or
SYNC.
2.
Detecting
a
break
or
abort
condition
in
the
receive
data.
3.
At
the
start
of
transmission
of
either
CRC
or
sync
characters,
in
synchronous
modes,
when
the
Transmit
Underrun/EOM
latch
becomes
set.
Tx
Int Enable {Dl}.
The
logic
state
on
this
bit
determines
whether
the
transmit
interrupt
is
enabled
(logic high)
or
masked
(logic low).
If
enabled,
an
interrrupt
is
produced
when
the
transmit
buffer
becomes
empty.
