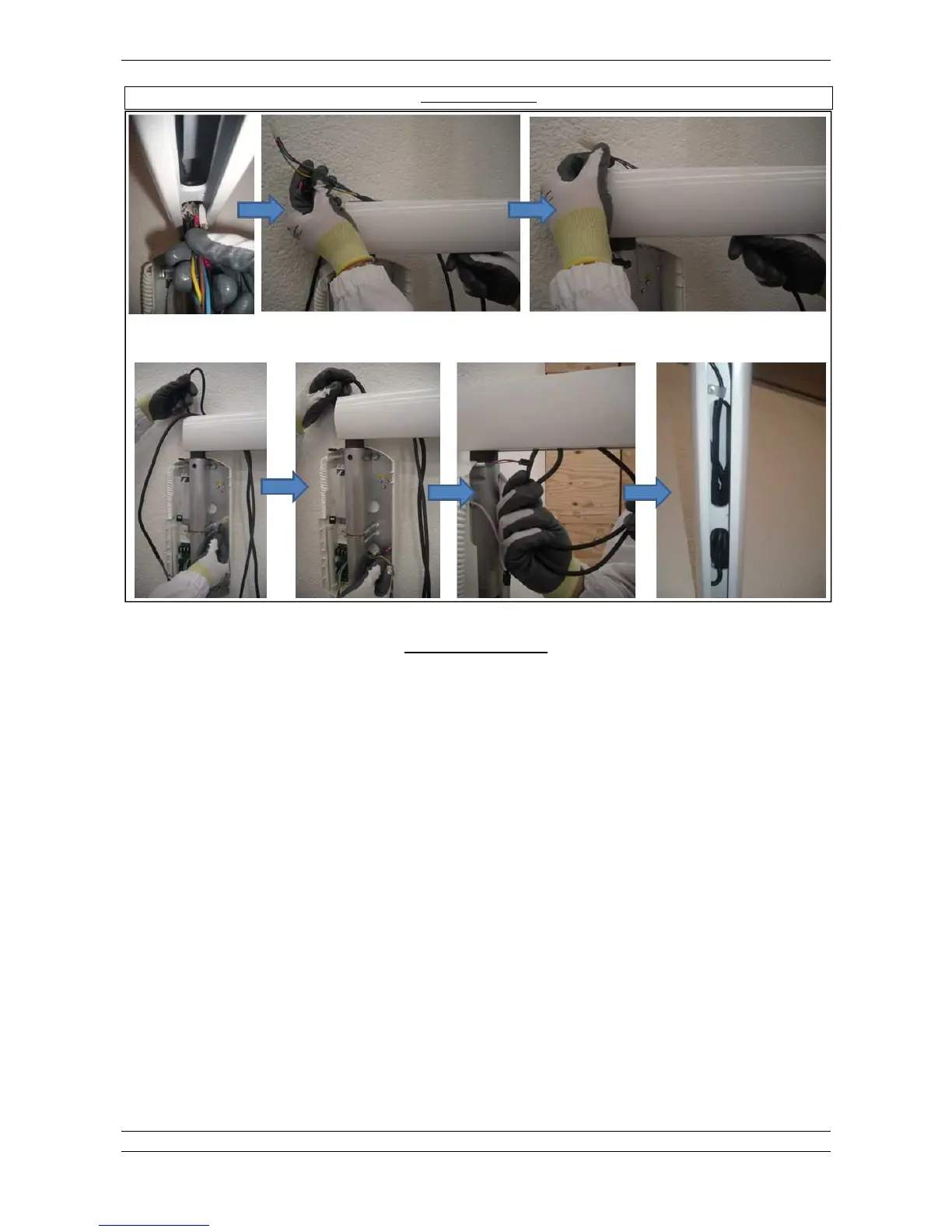

Fig. 5.23




In case of bottom installation, cables excess must be managed as shown above.
The only difference is that the cables won’t pass through the bracket but directly inside the bracket pin.
Cables must be placed folded in the free space inside the bracket and then routed to the wall plate.



