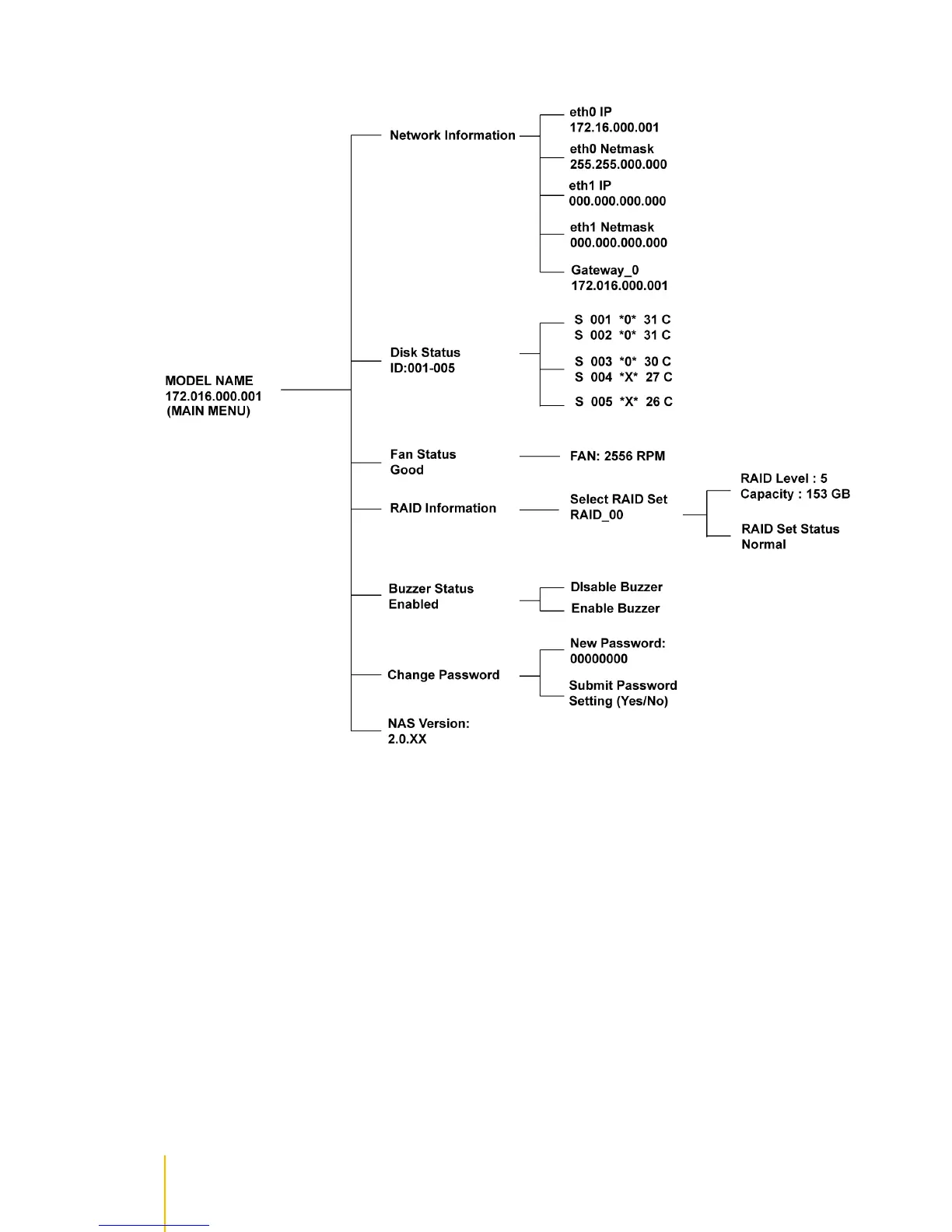

LCD Menu Diagram

Disk Status Information:

S 001 - means slot number 1

*O* - means disk drive in slot is Online or detected

*X* - means no disk drive in slot or disk drive not detected
